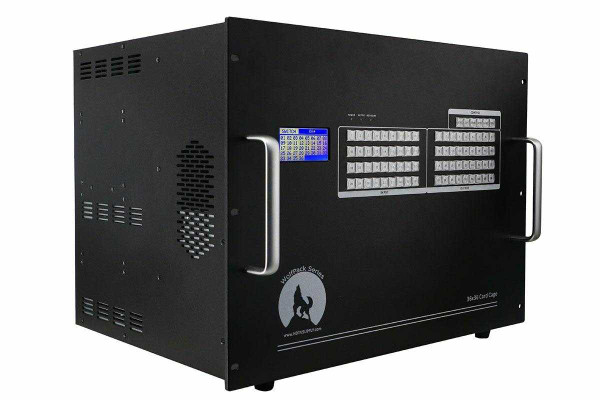

HDTV Supply's WolfPack™ Seamless 6x24 Modular HDMI Matrix Switcher allows 100ms switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The WolfPack Modular HDMI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch between HDMI inputs and outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
HDTV Supply's WolfPack 6x24 HDMI Seamless Matrix Switcher is a preconfigured integrated HDMI video and HDMI audio modular HDMI matrix router. The Seamless 36x36 chassis back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination. The core of the Seamless 6x24 HDMI Matrix Switcher consists of an 36x36 Modular Matrix chassis and its highly configurable backplane that supports 36 Seamless input cards and 36 Seamless output cards. Our Seamless switching feature eliminates virtually all of the switching delay, commonly found in most switch and matrix devices.
You can control the Seamless 6x24 HDMI Matrix Router via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its free iOS and Android App.
Reasons that sets our WolfPack™ Seamless HDMI Modular Matrix Switchers apart from others:
- Instant (100ms = 0.1 sec) 1080p Seamless Switching
- Optionally, uses the best HDBaseT HDMI to CATx extenders, not cheap H.264 with fuzzy compressed video
- Closed Caption (CC) Pass-through
- Control via an iPad, Android, Web Browser, RS232 & Front Buttons
- Free Control4 Drivers
- Up & Down Resolution Scaling via an 8-Pin DIP switch on the card
- 40 - Configuration Scene Saving Settings
- 2-Power Supply's with w/automatic switch-over if a problem occurs
- No latency
- 2-Year WolfPackCare Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Embedded audio inputs & De-embedded Audio Outputs
100ms Seamless HDMI Switching: This WolfPack™ Seamless 6x24 HDMI Matrix Switcher delivers 100ms instantaneous video switching with full 1080p/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input, the display outputs and scales the inputs for the best output resolution. It sets the output clock timing and uses a frame buffer to retain the input signal information for the fastest output.
WolfPack™ Seamless 6x24 HDMI Matrix Switcher Configuration:
- 1 - 36-card in and 36 card out Seamless card cage
- 6 - 1-port Seamless HDMI input cards = 6-HDMI inputs
- 24 - 1-port Seamless HDMI output cards = 24-HDMI outputs
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.
The WolfPack 6x24 HDMI Seamless Matrix Switcher manages HDMI input signals for the inputs and outputs. This 6x24 HDMI Matrix Seamless Switcher support long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 6x24 HDMI Seamless Matrix Router also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
Seamless 6x24 HDMI Matrix Switcher Features:
- Chassis size: 36 input and 36 outputs cards
- Input Cards Supported:
- 6 - Seamless female HDMI single port cards = 6 - HDMI inputs
- Output Cards:
- 24 - Seamless female HDMI single port cards = 24 - HDMI outputs
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 2.0 high speed cable
- Output HDMI cable distance: Up to ~50 feet with an AWG24 HDMI 2.0 high speed cable
- Flexible card type design supporting 36 input cards and 36 output cards
- Embedded audio inputs & De-embedded Audio Outputs
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports seamless switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- Rack-mountable
The heart of the HDMI inputs is the Seamless WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
EDID Explained: The Seamless 6x24 HDMI Matrix Switchers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.
For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.
Why not buy this Seamless 6x24 HDMI Matrix Switcher today?
Separate Embedded Audio In and De-embedded Audio Out: The Seamless HDMI Matrix Switcher allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector and then de-embedding the audio on the HDMI output cards 3.5mm audio.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each HDMI card has a 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.
Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.
Seamless 6x24 HDMI Matrix Switcher Specs:
- Modular Configuration: 36 inputs/36 outputs card cage
- Output cable distance: ~50 feet AWG24 HDMI 1.4 high speed cable
- Supported Input & Outputs Signals:
- HDMI and Display Port: up to 1080p at 60 Hz
- Control: TCP/IP, RS232, Apps and front buttons
- Power Supply: 100 – 240VAC, 50-60Hz
- Power Consumption: 50W 70W
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -25℃ to 55℃
Why not buy this Seamless 6x24 HDMI Matrix Switcher today?
Why not buy this Seamless 6x24 HDMI Matrix Switcher today?
Reasons To Buy an HDTV Supply WolfPack Product
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV™ Control System (Call)
- Allonis Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $129 Crestron Drivers
- Optional $99 Elan Drivers
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this Seamless 6x24 HDMI Matrix Switcher today?
A: 40.
Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
- Mix-n-Match combinations:
- Non-HDCP source to a HDCP compliant TV
- HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: How do the 2-power supplies work with the matrix?
A: For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up
Q: What are the dimensions of the chassis?
A: A: It is 36x36: 8U - 482 x 390 x 355mm or 18.97 x 15.35 x 13.98 inches (L/W/H)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
