Build Your Own 4K 30 Hz Matrix Switcher with 9-Chassis Sizes

WolfPackGold

Build Your Own 4K 30 Hz Matrix Switcher with 9-Chassis Sizes
$600.00
Part Number:
FIX-CHASSIS-4K30
UPC:
603134687873
Availability:
In Stock - Ships in 3 to 4 Days
1:
You Design Your System 4K 30 Hz Matrix Up to an 80x80
2:
Supports Up To 4K 30 Hz 4:2:0
3:
Free Apps, WEB GUI, RS232 & Front Control
4:
Configured with 4-Port 4K 30 Hz Cards
5:
CAT6 Extenders
8:
Separate Audio on all Cards
MUST CLICK TO BUILD YOUR OWN:
Make a Fair Offer
Ask an Expert

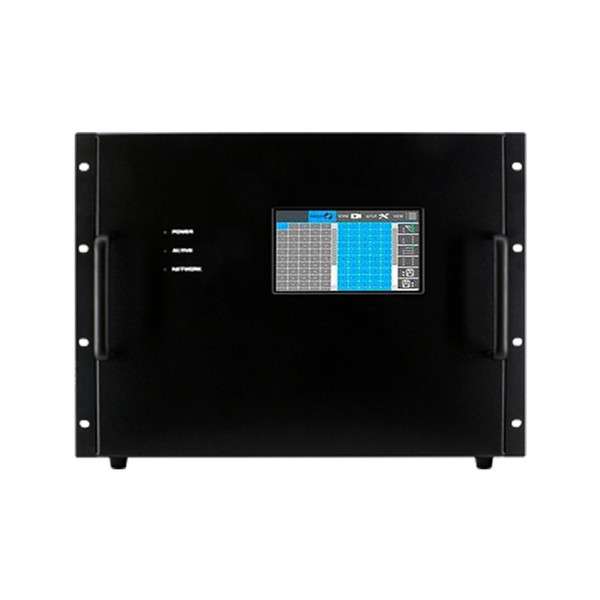

Build your own WolfPackGold 4K 30 Hz Modular HDMI Matrix Switcher Chassis which is an integrated HDMI video and HDMI audio modular HDMI matrix router. These chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies. The core of the Modular HDMI Matrix Switcher Chassis consists of multiple Modular Matrix chassis and its highly configurable backplane that supports 4 - slide-in input cards and 4 - slide-in output cards. You can control the matrix switch via its IOS or Android Apps, front panel control, a WEB GUI control, remote control or the RS-232 serial port.

Reasons that set our WolfPackGold 4K 30 Hz HDMI Modular Matrix Switchers apart from others:

  1. Chassis sizes from 8x8 to 80x80
  2. Uses 4-port IN & OUT Cards
  3. Uses 4-Port HDBaseT HDMI to CATx extenders w/POC (Power Over Cable)
  4. Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Control & IR Remote Control
  5. 40-Preset scenes that can be Saved and Recalled
  6. 2-Year WolfPackCare Advance Replace Warranty
  7. Free Lifetime Telephone, CHAT, TEXT, and Email Tech Support
  8. Other cards available like SDI
  9. Rack-mountable
  10. Optional Crestron, RTI, Elan & 2-Way Control4 Drivers

FREE MEDIA PLAYER: Get a Free LOOP TV player and/or an Atmosphere-TV Video Player for this HDMI Matrix Switcher to show your Ads and other videos. Commercial accounts only, like Sports Bars. Not avaible for home use.

WolfPackGold 4K 30 Hz 40x80 HDMI Matrix Switch Configuration Example:

  • 1 - 80-card in and 80 out card cage
  • 10 - 4-port HDMI input cards = 40 - HDMI inputs
  • 20 - 4-port HDMI output cards = 80 - HDMI outputs

By having 4-port slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent in for repair.

These WolfPackGold 4K 30 Hz HDMI Matrix Switcher Chassis Features:

  • Supports up to 80 - inputs and 80 - output
  • 4-Port Input Cards Supported:
    • HDMI
    • HDBaseT Transmitters to support CAT6/7 at 4K 30 Hz with (POC) Power Over Cable
  • 4-Port Output Cards Supported:
    • HDMI
    • HDBaseT Receivers to support CAT6/7 at 4K 30 Hz with (POC) Power Over Cable
  • HDCP 1.4 compliant
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cables
  • Advanced EDID management for rapid integration of sources and displays
  • Front-panel LCD display for status feedback
  • Front-panel push buttons for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control via an automation control system
  • Support resolution exchanges with several resolutions can be chosen and used
  • Supports both HDBaseT signal inputs and outputs and the 4K 30 Hz distances can go up to 220 or 330 feet with only one Ethernet cable with (POC) Power Over Ethernet
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232 and Front Buttons control
  • Rack-mountable

The heart of the Modular HDMI Matrix Routers is the WolfPackGold chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot plugs, and you can change the cards while the equipment is still working.

Why not design a 4K 30 Hz Modular HDMI Matrix Switcher today?

HDTV Supply's implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers' lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.

Control

When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:
  1. Remote Keypad for WolfPack Matrix Systems
  2. Free 15-Button Remote Control
  3. Free Windows PC Control Software
  4. Free iPad App (iOS)
  5. Free iPhone App (iOS)
  6. Free iPod App (iOS)
  7. Free Android Tablet App
  8. Free Android Phone App
  9. Free Samsung Galaxy Tablet App
  10. Free Samsung Galaxy Phone App
  11. Free Amazon Fire Tablet App
  12. Free Web GUI from any browser is standard
  13. Front panel push-buttons are standard
  14. Optional 7-inch Color Touch Screen for Setup & Control
  15. RS232 ports are standard on select models
  16. TCPIP ports are standard on select models
  17. Sports Bar DirecTV™ Control System (Call)
  18. Free One-Way Control4 Drivers
  19. Optional $99 2-Way Control4 Drivers
  20. Optional $99 URC Drivers
  21. Optional $99 Elan Drivers
  22. Optional $129 Crestron Modules
  23. Optional $125 RTI Drivers
  24. Optional Harmony Remote Control Codes
For an up-to-date listing of all the methods to control our WolfPack Matrix Switchers go to Ways to Control Our WolfPack Family Of Modular Matrix Systems.

Why not design a 4K 30 Hz Modular HDMI Matrix Switcher today?

Control Drivers

DirecTV Controller

HDTV Supply has successfully installed our WolfPackGold and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters, or many other installations requiring HDMI matrix switching. The reason the users tell us is the number of features we offer compared to other companies they looked at.

These modular HDMI matrix switchers can usually be integrated with many third-party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™

...and we have created a simple and extremely easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 User's Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not design a 4K 30 Hz Modular HDMI Matrix Switcher today?

HDTV Supply has successfully installed our WolfPack, WolfPackGold and our other HDMI Matrix Switchers in Sports Bars, Restaurants, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Casinos, Factories, Conference Rooms, Schools, Home Theaters, or many other installations requiring HDMI matrix switching. The reason we are told by the users is the number of features we offer compared to other companies they looked at.

Q: How many Preset scenes can I Save and Recall?
A: 40.

Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.

  1. Mix-n-Match combinations:
  2. Non-HDCP source to a HDCP compliant TV
  3. HDCP source to a non-HDCP compliant TV

Q: What is your test procedure?
A: Our testing procedure is:

  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship

Q: How do the 2-power supplies work with the matrix?
A: For the 2-power supply system on the card cage matrix, it's a redundant system. It also can operate with just one power supply on and the other one is for back-up

Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.

Q: How is HDBaseT technology different than others?
A: Unlike other HD distribution technologies, HDBaseT is the only technology which enables CAT6/6/7 connectivity from 70 meters to 100 meters, depending upon the specific product, for uncompressed full HD multimedia content and up to 100 watts of charging power via a single cable. HDBaseT is optimized for video applications and can connect all HDBaseT enabled home entertainment devices. Also, HDBaseT technology has the capacity to deliver double the resolution available today to future 2K and 4K formats. Other existing solutions also require a specific cable and/or a new proprietary connector while HDBaseT utilizes the existing Ethernet infrastructure.

HDMI HDBaseT Extender Helpful Tips & Recommendations:

  • Keep cables away from any equipment with an electromagnetic wave, e.g., mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines, etc.
  • CAT6/6 cables should not exceed 220 feet or (70m).
  • Please adhere to the TIA/EIA568B standards when terminating network cables in the field.
  • Shielded CAT6/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference (EMI).

Why not design a 4K 30 Hz Modular HDMI Matrix Switcher today?

HDTV Supply's WolfPackGold Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and we will send you a quotation based upon your needs within an hour.

If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com



















Why not design a Modular HDMI Matrix Switcher today?

Warranty
Click Here for Product Warranty
