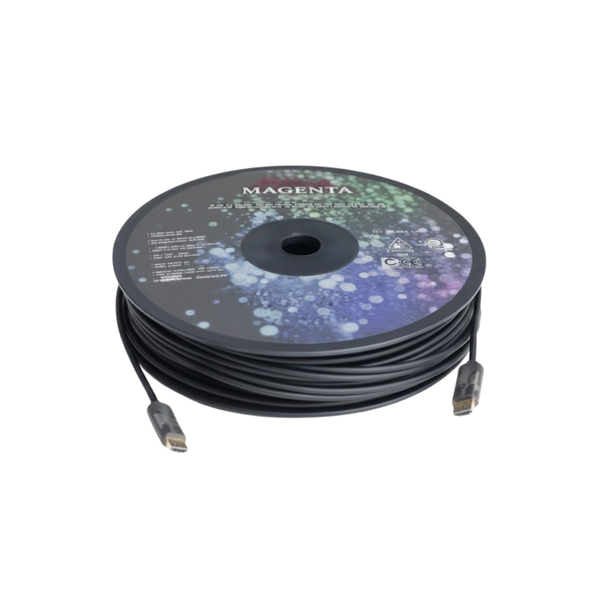

tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m)

tvONE

tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m)
$385.00
Part Number:
MG-AOC-661-20
Availability:
In Stock
1:
HDMI 2 Active Optical Cable 66ft (20m)
2:
Magenta HDMI 2.0 Active Optical Cable
3:
No external power required
4:
4K2Kp60 down to 480i supported
5:
Free Shipping
6:
Lifetime Telephone, CHAT, TEXT & Email Support
ADD OPTIONS:
Make a Fair Offer
Ask an Expert

tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m) provides a simple yet powerful solution for extending high resolution over long distances. This plug and play HDMI 2.0 cable supports up to 4K60 4:4:4 with no compression or latency up to 328ft (100m) and without the need for external power and is available in UL rated Plenum (CMP), providing the ultimate flexibility.

tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m) Features:

  • Up to 328ft (100m)
  • No external power required
  • Plug and Play
  • HDMI 2.0
  • HDCP support
  • EDID support
  • No signal loss
  • 4K2Kp60 down to 480i supported
  • UL rated Plenum (CMP) option available
  • Simple 4K60 4:4:4 Extension

Note: This product is non-cancelable, non-returnable and non-refundable.

tvONE NOTE:
 HDTV Supply supports our Federal, State & Local Governments, Schools, Universities & Military accounts by offering an additional discount if your email address ends in .EDU & .GOV & .MIL & .ORG. Please see Options below.

Why not buy this tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m) today?

tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m) Specification:

  • HDCP & DDC: HDCP 2.0 fully supports bi-directional EDID and HDCP communication
  • Video Bandwidth: 6 Gbps/x3Channel (max) + Clock
  • Supported Resolutions & Distance: PC: WUXGA 1920 x 1200 up to 100 meters, HDTV: 480p, 720p, 1080i and 1080p deep color, 4K(60p), 3DFull HD 1920 x 1080 up to 100 meters
  • O/E Converter: 4 channel 850 nm VCSEL array (Source) 4 CH GaAs PD array (Sink)
  • Connector Type: HDMI 2.0 type A
  • Cable Type: Hybrid type with OM3 fiber and copper wire
  • Cable Outer Diameter: 4.5mm
  • Jacket Outer Material: PVC (MG-AOC-661-XXX) Plenum (MG-AOC-662-XXX)
  • Cable Weight: TBD
  • Cable Color: Black
  • Maximum Tensile Load: 15kg
  • Minimum Bend Radium: 20mm
  • Differential Input: 100 ohm (typical)
  • Power Consumption: 250mW (max)
  • Power Supply: No external power required

Why not buy this tvONE MG-AOC-661-20 HDMI 2.0 Active Optical Cable 66ft (20m) today?

tvONE MG-AOC-661-20 Specification
