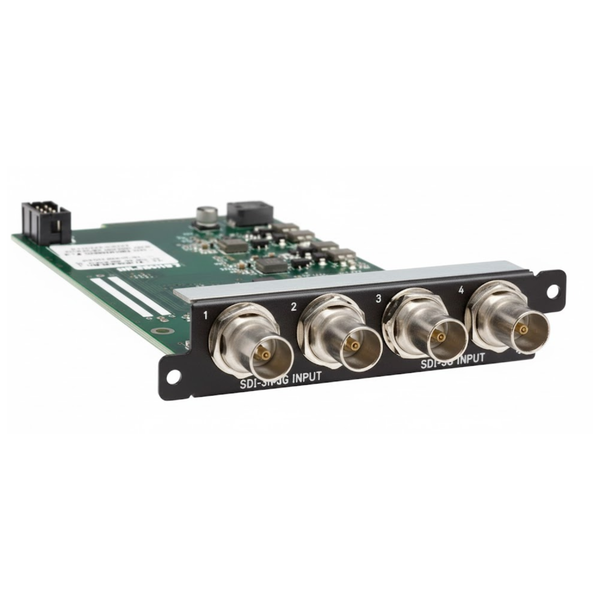

This tvONE CV-3GSDI-4IN-FF 4x HD/SD/3G-SDI Input Module for CORIOview System is an input module for installation in the chassis of the tvONE CORIOview series multiviewer, four channels of the 3G-SDI interface. Signals of the following formats are supported: 3G-SDI, HD-SDI, SD-SDI; BNC connectors are used for each channel. The module is installed in the chassis at the factory.
tvONE CV-3GSDI-4IN-FF 4x HD/SD/3G-SDI Input Module for CORIOview System Features:
- 4x HD/SD/3G-SDI Input Module
- TvONE CORIOview series multiviewer
- Four channels of the 3G-SDI interface
- BNC Connectors are Used
- For CORIOview System
Why not buy this tvONE CV-3GSDI-4IN-FF 4x HD/SD/3G-SDI Input Module for CORIOview System today?
tvONE CV-3GSDI-4IN-FF 4x HD/SD/3G-SDI Input Module for CORIOview System Specifications:
- Inputs: 4 - SD / HD / 3G-SDI, BNC connector (female)
- Maximum Resolution: 1080p
- SDI standards:
- SMPTE 259M-C (SD-SDI)
- SMPTE 292M (HD-SDI)
- SMPTE 424M (3G-SDI)
- SDI resolutions:
- 525/625 lines (SD-SDI)
- 720p
- 1035i
- 1080i
- 1080p (HD-SDI)
- 1080p 60/59.94Hz (3G-SDI)
- Jitter:
- <0.1UI (SD-SDI)
- <0.2UI (HD-SDI)
- <0.3UI (3G-SDI)
- Color subsampling: SDI 4:2:2
- Bit depth color encoding: 20 bit
Why not buy this tvONE CV-3GSDI-4IN-FF 4x HD/SD/3G-SDI Input Module for CORIOview System today?
tvONE CV-3GSDI-4IN-FF User Manual
tvONE CV-3GSDI-4IN-FF Specifications
