tvONE 1RK-4RU-PSU ONErack Power Supply is a universal, powered mounting system that vastly improves rack installation of small devices. tvONE's patent pending design converts randomly sized, externally powered devices from any manufacturer into slide-in modules that can be installed quickly and cleanly and serviced easily. Chassis are available in 4RU, 5RU and 6RU and can hold up to 16 modules with up to 2 voltage selectors each. When using the ONErack Power Supply, each voltage selector, can provide power @ 5v, 7.5v, 9v, 12v, 13.5v, 18v, & 24v up to 35 watts. A pass thru is also available for custom power sources. Each ONErack Chassis can include 1 or more Power Supplies for added power which can also feed additional chassis, providing a clean power solution for all mounted devices. For service, just slide out a failed device, no cable ties, no guessing. Close the front of your ONErack with a Fan cover and keep it all cool. Up to 32 devices in just 4RU, powered and cooled!
tvONE 1RK-4RU-PSU ONErack Power Supply Features:
- Universal mounting for any brand
- Variable DC voltages from single power supply
- Active fan cooling system for high density applications
- Available in 3 sizes; 4RU, 5RU, 6RU
- Power up to 32 devices in 4RU, 64 devices in 5 or 6RU1
- Each slot can provide 2 different voltages at the same time
- Each slot has 7 different voltage settings
- Pass thru allows for custom powering options
- Fast easy installation of small devices
- Simple, time saving serviceability
Note: This product is non-cancelable, non-returnable and non-refundable.
tvONE NOTE:
HDTV Supply supports our Federal, State & Local Governments, Schools, Universities & Military accounts by offering an additional discount if your email address ends in .EDU & .GOV & .MIL & .ORG. Please see Options below.
Why not buy this tvONE 1RK-4RU-PSU ONErack Power Supply today?
tvONE 1RK-4RU-PSU ONErack Power Supply Specifications:
- Chassis
- Size D+H+W
- 4RU; 14in x 7in x 19in (366mm x 177mm x 483mm)
- 5RU; 14in x 8.7in x 19in (366mm x 221mm x 483mm)
- 6RU; 14in x 10.43in x 19in (366mm x 265mm x 483mm)
- Weight (empty): 4RU; 2.88kg, 5RU; 3.38kg, 6RU; 3.88kg
- Module kit weight: 4RU; 0.44kg, 5RU; 0.52kg, 6RU; 0.6kg
- Area per slot**: 4RU; 60.1in2 (387cm2 ), 5RU; 80.9in2 (522cm2 ), 6RU; 101.6in2 (655cm2)
- Power per dock: max 35w
- Power per slot: two voltage selectors @ 35w each (2nd Voltage Selector is optional)
- DC Voltages per slot: 5v@7A, 7.5v@4.7A, 9v@3.9A, 12v@2.9A, 13.5v@2.6A, 18v@1.9A, 24v@1.5A & Pass Thru
- Pass Thru max: 35 watts DC
- Certifications: RoHS, CE, UL, FCC Class A
- Max modules: 16 (with internal PSU; 14)

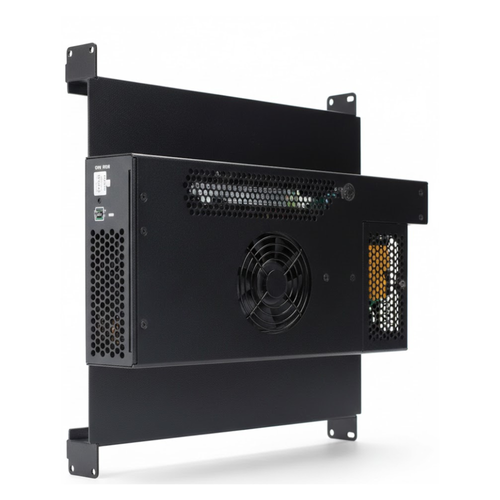

- PSU
- Size D+H+W
- 4RU; 318mm x 144mm x 44mm
- 5RU; 318mm x 188mm x 44mm
- 6RU; 318mm x 232mm x 44mm
- Weight: 4RU; 1.48kg, 5RU; 1.76kg, 6RU; 2.04kg
- Main Output voltage: 28v DC
- Main output power: 250w
- Fan output voltage: 12v DC
- Fan output power: 6w
- BTU: 1195 BTU
- Certifications: RoHS, CE, UL, FCC Class A
- AC input Voltage: 90-264v AC
- Thermal: 0˚ - 40˚ C
- Outlets Available
- 2x 28v DC daisy chainable (rear)
- 2x fan 12v DC (1x front, 1x rear)
- 1x 28v DC service output (front)
- Fan Cover, reversible
- Airflow: 225 CFM max
- Consumption: 6w max
- Speed Adjustment: 100% down to 50%
- Power: 12v DC
- Certifications: RoHS, CE, UL, FCC Class A
