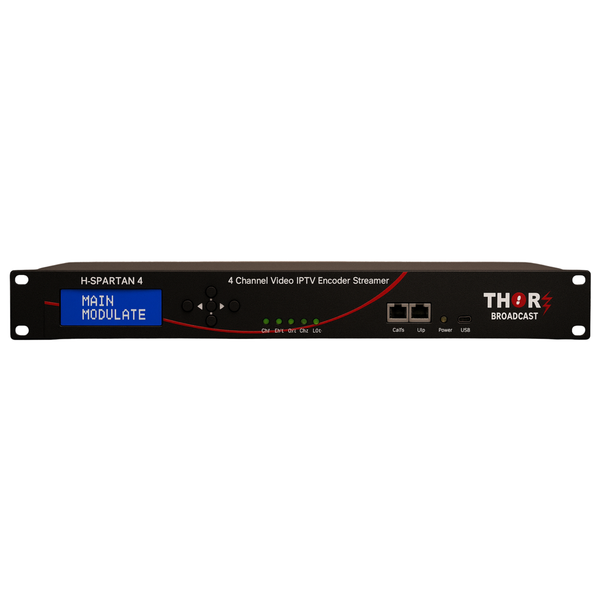

This Thor Broadcast H-SPARTAN-4 4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP is 4 HDMI low latency LAN encoder and WAN streamer, utilizing H.264 encoding, AC3 or MPEG1 Audio encoding
It can be used as a 4 ch HDMI or 4ch CVBS, or a mix of both, IP streaming device. Ideally used for UDP/RTP multicast over LAN or It could be used as streaming device over public internet WAN using HLS, HTTP. RTMP
Easy to use and simple to setup; this single 1RU chassis has been designed to stream MPEG4 video directly to websites like Youtube and Facebook for streaming applications.
Low latency and minimal bit rate lets you stream up to 1080p quickly and efficiently through Thor Brodcast's newest multi channel encoder with procotols needed by most social media.
Thor Broadcast H-SPARTAN-4 4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP Features:
- 4 HDMI INputs
- 4 CVBS Inputs
- 1 USB input for TS to IP streaming
- TS files play directly
- Low Latency & Low bit rate
- H-264 Video Encoding
- MPEG1, AC3, AAC Audio enoding
- UDP/RTP Unicast Multicast
- HLS, RTMP, HTTP in Low Latency
- Supports RTMP with Key
- CBR/VBR control mode
- CC closed caption EIA 608
- LCD & web controlled, updates via the web
- Internal power supply
- Supports incoming video resolusion up to full HD 1080p/60
- NMS port for monitoring with its own IP address
- Data Ethernet Port For Streaming Output
- Video encoding bit rate for UDP, RTP unicast/multicast up to 14mbps
- Video encoding bit rate for streaming HLS, RTMP, HTTP up to 8Mbps
- Direct streaming to Video services like youtube or Facebook (RTMP with Key)
- Easy setup using NMS Gui Interface
- Control and status on the LCD display
Why not buy this Thor Broadcast H-SPARTAN-4 4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP today?
Thor Broadcast H-SPARTAN-4 4 Channel HDMI + CVBS Network Encoder Streamer UDP/RTP Specifications:
| Interfaces | |
| Input | 4 x HDMI, 4 x CVBS, 1 x USB |
| Output |
1 x RJ45, 1Gbps IP Streaming UDP/RTP (Unicast/Multicast) HLS, HTTP, RTMP |
| Control | LCD with 6 keys & 1 x RJ45 (Web NMS) |
| Video Encoding | |
| Format | HD/SD :H.264 AVC/HP@L4.0 |
| Resolution | 1080 50/60p, 1080 50/60i 720 50/60p, 480i/576i Max output: 1080-30P |
| Bitrate |
2~14 Mbps in UDP RTP 2~8 Mbps in RTMP, HLS, HTTP HDMI - 2-14Mbps CVBS- 2-6Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Audio Encoding | |
| Format | Mpeg1 L2, AAC, AC3 |
| Bitrate | 64kps ~ 384kps |
| Sample Rate | 44.1 kHz, 48.0 kHz |
| General | |
| Power Supply | AC 100~240V 50/60Hz |
| Display | LCD panel @ 2 x 16 characters LED X5 (Ch1~4+USB) |
| Dimension | 483 x 257 x 44.4mm |
| Weight | 4Lb |
| Environmental for operating |
Temperature: 5°C- 40°C Relative Humidity: 80% @ 30°C |
