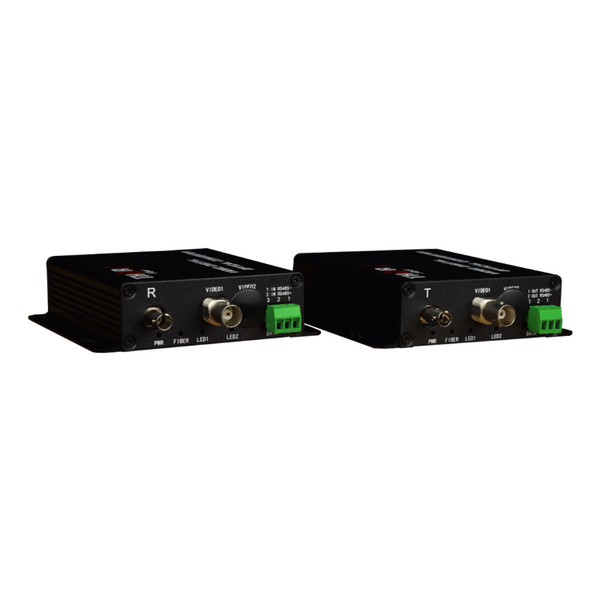

This Thor Broadcast F-1VD-TxRx 1 CVBS Video Only Over Fiber TX/RX Kit used in Security, Videoconferencing, Broadcast and Cable TV and Digital Signage applications. Features: 10 MHz video sampling Video channel is compatible with NTSC, PAL or SECAM video standards Indicator LEDs monitor power, video and audio signals They transmit them over multimode or single mode fiber No adjustments; pure digital processing and transmission Wide range power supply allows operation from both AC and DC sources
Thor Broadcast F-1VD-TxRx 1 CVBS Video Only Over Fiber TX/RX Kit Features:
- Support NTSC / PAL / SECAM
- Blackburst / Genlocking and Synchronization
- Indicator LEDs monitor power, video, and audio signals
- No adjustments required; pure digital processing and transmission
- Single mode or multimode fiber
- Distance up to 20/40/80 km (distance that order)
- 10 MHz video sampling
- Optical connector type: ST / PC
Why not buy this Thor Broadcast F-1VD-TxRx 1 CVBS Video Only Over Fiber TX/RX Kit from HDTV Supply today?
Thor Broadcast F-1VD-TxRx 1 CVBS Video Only Over Fiber TX/RX Kit Specification:
| * All Specifiactions Subject to Change Without Notice | |||
| Input |
1 Ch Analog component video (CVBS) NTSC, PAL, Secam |
||
| Number of Input | 1 | ||
| Frequency Response |
> 10 MHz (-3 dB) ± 0.2 dB to 5 MHz | ||
| Input / Output Impedance |
75Ω | ||
| Connector |
BNC | ||
| Phase diffrential |
0.5 of | ||
| Diffrential Gain Y / C Delay System Gain |
0.5% <10 ns > Unity Gain, ± 3% |
||
| Power Supply | 12V DC | ||
| Power Consumption | <10W | ||
| Temperature | 0 to +70 Degree | ||
| Humidity | 0 to 95% | ||
| Connector | ST / PC or SC / PC or FC / PC (model specific) | ||
| Distance | 20/40/60 / 80km (Model Specific) | ||
| Fiber Type | Singlemode and multimode (model specific) | ||
| Status LEDs Indicator Lights | |||
