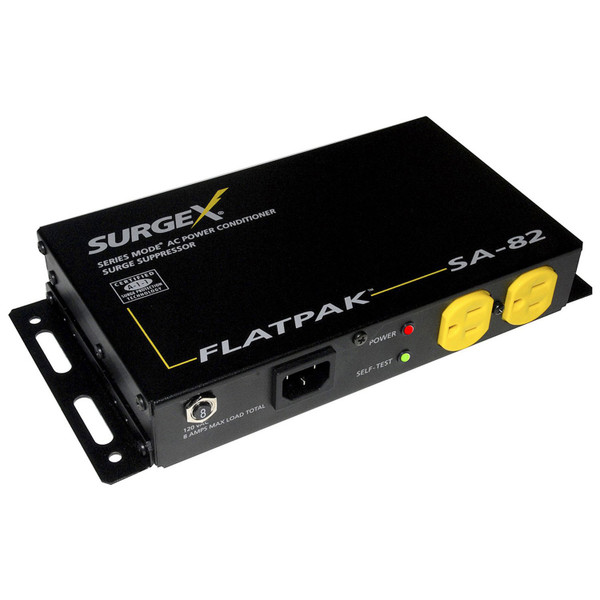

This SurgeX SA-82 FlatPak Surge Eliminator, 8A / 120V, 2 Outlets, Brackets Included, When space is at a premium, the SurgeX FlatPak is the perfect wall mount surge protector for TVs, projectors, flat panels, and digital displays. It safeguards them against harmful electrical transients and is easily hidden behind or beside equipment. The FlatPak easily integrates with wall and ceiling mounting systems.
Featuring Series Mode technology, the FlatPak surge protector and power conditioner safeguards equipment against surges, spikes, and electrical noise that cause AV equipment malfunction and downtime. It does not shunt surge energy to the ground and will not produce ground contamination or common-mode disturbances that cause hissing sounds and pixelation on AV equipment.
Available in two configurations with over voltage protection, the SA-82 model is engineered for non-networked devices and the SA-82-AR offers remote IP control capabilities for networked devices. This lets technicians control any connected device not currently IP addressable to manage outlets, including on/off, scheduling, AutoPing, and power cycling.
If you're looking for a compact solution that offers advanced power protection and installs out of sight, then look no further than the SurgeX FlatPak.
SurgeX SA-82 FlatPak Surge Eliminator, 8A / 120V, 2 Outlets, Brackets Included Features:
- Compact 3 lbs. design
- Series Mode® power protection technology
- Over Voltage Shutdown (with Auto Reset)
- Non-sacrificial components
- Magnetic shielding steel enclosure
- Detachable 3' grounded 3-wire #18 line cord
- SA82 FlatPak Surge Eliminator, 8A / 120V, 2 Outlets, Brackets Included
- Protects wall/ceiling equipment from power disturbances and catastrophic damage
- Provides 100% Fail-safe, non-sacrificial protection
- Eliminates surge energy up to 6,000 Volts/3,000 Amps
- Ultra compact < 5 lbs design can easily be integrated with wall/ceiling mounting systems
- Features SurgeX Series Mode® surge elimination technology, Impedance Tolerant® EMI/RFI Filtering, and Over Voltage Shutdown (with Auto Reset)
- Improves audio and video performance
- Axess Ready model offers Remote IP control capabilities
- Includes detachable IEC power cord and mounting brackets
- A-1-1 Certified
Why not buy this SurgeX SA-82 FlatPak Surge Eliminator, 8A / 120V, 2 Outlets, Brackets Included today?
SurgeX SA-82 FlatPak Surge Eliminator, 8A / 120V, 2 Outlets, Brackets Included Specifications:
- Load Rating: 8A
- Voltage Rating: 120V
- Power Requirement (No Load): 8W
- Surge Let-Through Voltage (6000 Volt Surge): 0 Volts
- Maximum Applied Surge Voltage: 6000 Volts
- Maximum Applied Surge Current: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
- Maximum Applied Surge Energy: Unlimited (Due to current limiting - 1.2 x 50 microsecond industry standard combination wave surge as per IEEE C62.41)
- Endurance (C62.41-1991 Category B3 Pulses): 1KV > 500,000; 3KV >10,000; 6KV >1,000
- EMI/RFI Filter:
- Normal Mode (50Ω Load):
- >20dB 27kHz-50MHz
- >30dB 90kHz-26MHz
- 30dB @ 100kHz; 56dB @ 300kHz
- 64dB @ 3MHz; 24dB @ 24MHz
- Common Mode (50Ω Load):
- >10dB 360kHz-50MHz
- >20dB 2kHz-40MHz
- 9dB @ 300kHz; 16dB @ 1MHz
- 28dB @ 5MHz; 35dB @ 20MHz
- Normal Mode (50Ω Load):
- Under-Voltage Auto Shutdown: No
- Over-Voltage Auto Shutdown: 145V
- Over-Current Auto Shutdown: Circuit Breaker
- Over-Temperature Auto Shutdown: None
- Network Port: No
- Serial Port: None
- Temperature Sensor Input: None
- Auxiliary Relay Outputs: No
- Contact Closure Input: No
- Dimensions (HxWxD): 1.75 x 5.31 x 9.06"
- Weight: 3.4Lbs
- Temperature Range: 41° to 95°F (5° to 35°C)
- Humidity Range: 5 to 95% RH, non-condensing
- Agency Listings: Conforms to UL Stds 1283 & 1449; Certified to CSA Std C22.2 No. 8
