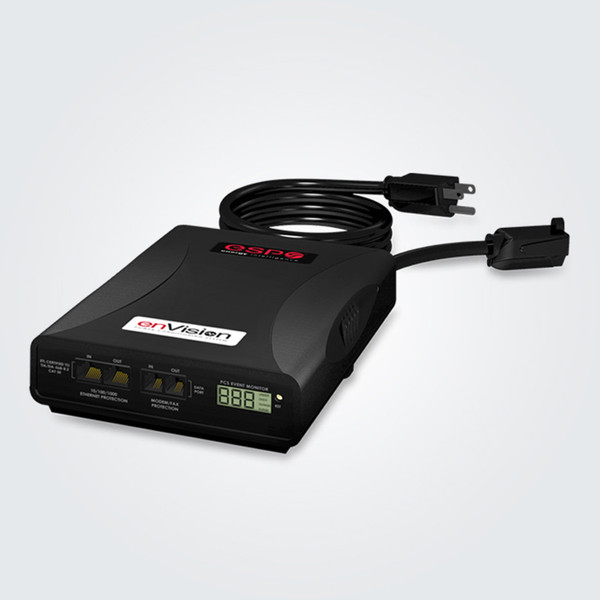

This SurgeX EV-12015 IC Diagnostic Surge Suppressor + Scope Meter, The SurgeX EV12015IC enVision diagnostic surge suppressor is the ultimate troubleshooting tool for service organizations.
enVision provides visibility and control into the power conditions at a installation site by gathering and analyzing data to facilitate root cause discussions with affected end users. It interprets the data into key metrics and trends, and baselines the factors that influences equipment operation, damage conditions, and inefficiencies.
Using innovative algorithms and predictive analytics software, the enVision discovers anomalies, patterns, and gives solutions to resolve electrical problems. It attempts to identify issues that can lead to connected equipment failure in advance. This enables technicians to proactively remedy issues rather than reacting to disruption or downtime.
SurgeX EV-12015 IC Diagnostic Surge Suppressor + Scope Meter Features:
- EV12015IC Diagnostic Surge Suppressor + Scope Meter
- Identify preexisting power conditions, analyze real-time power anomalies, and generate electrical performance reports
- Integrated scope meter diagnostic capabilities
- Lowers service costs, ensures fault-less installs, and improves customer uptime Measures neutral to ground voltage, crest factor, power factor, and line frequency metrics
- Internal battery to provide accurate data and time stamps, even during power outages
- Built-in LCD screen provides easy access to recorded events, parameters and settings
- Protects connected equipment from power disturbances
- Power over Ethernet protection
- Remote IP capable (sold separately)
- Lifetime product and connected equipment protection warranty
Why not buy this SurgeX EV-12015 IC Diagnostic Surge Suppressor + Scope Meter today?
SurgeX EV-12015 IC Diagnostic Surge Suppressor + Scope Meter Specifications:
- Load Rating: 15 Amps at 120 Volts
- Voltage Protection Rating (VPR): 330V All Modes
- Attenuation:
- Normal Mode: > 30 dB 80kHz - 50MHz
- Common Mode: > 30 dB 70kHz - 50MHz
- Power Requirement (no load): 4 Watts
- Under-Voltage Shutdown: Adjustable from 0 V to 110 V. Default 80 V.
- Under-Voltage Record: Adjustable from 0 V to 110 V. Default 100 V.
- Under-Voltage Restore: Adjustable from 80 V to 110 V. Default 105V.
- Over-Voltage Shutdown: Adjustable from 130 V to 160 V. Default 150 V.
- Over-Voltage Record: Adjustable from 130 V to 160 V. Default 145 V.
- Over-Voltage Restore: Adjustable from 130 V to 160 V. Default 140 V.
- Internal Memory Capacity:
- 512 Power Quality Events with Timestamp
- 138 Day Electrical Parameter History at 30 minute intervals
- 2.25 Day Electrical Parameters at 10 second intervals
- Timestamp Accuracy: ± 1% Typical Product Accuracy
- Measurement Accuracy: 120V Models ± 2% Typical product accuracy
- Response Time:
- Over-Voltage 90 ms
- Under-Voltage 200 ms
- Power Outage Event: Definition AC Voltage has dropped below 20V
- Surge Event Definition: Filter has been exposed to a transient voltage in one of the 3 possible modes (between Live and Neutral, between Live and Ground, between Neutral and Ground) with a peak amplitude of 500V* or higher and a frequency of 20 kHz or higher. *500V surge voltage amplitude applies to IEEE C62.41 Category B Impulse; surge voltage amplitudes necessary for detection of other surge types may vary. *The allowed range was changed from 260-300V to 220-300V in firmware version 1.JB3, released in December 2016.
- Modem/Fax Protection: Single telephone line surge suppression
- Ethernet Protection: CAT6 network surge protection
- Dimensions (WxDxH): 6.125 x 8.375 x 2"
- Weight: 2.25Lbs
- Temperature Range: 41° to 95°F
- Humidity Range: 5 to 95% R.H. non-condensing
- Agency Listings:
- ETL Certified to UL 1449 3rd Edition
- ETL Certified to UL 1283 5th Edition
- ETL Certified to CSA 22.2 No. 8-M1986 (R2008)
