Sports Bar 4K 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control

WolfPack

Sports Bar 4K 8x16 HDMI Matrix Switch over CAT6 w/iPad DirecTV Control
MSRP: $9,600.00
$4,800.00
(You save $4,800.00 )
Part Number:
MM8x16CAT-WOLFPAD
UPC:
728370343250
Availability:
In Stock
1:

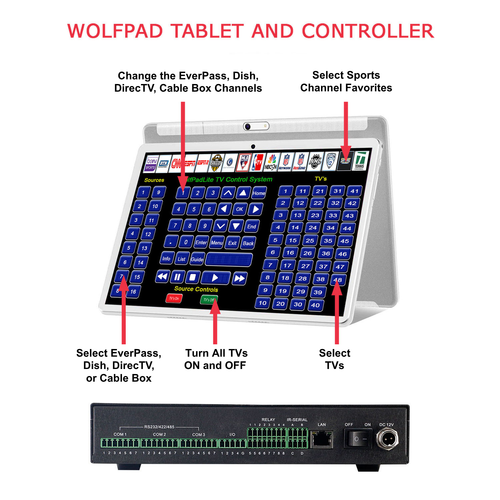

DISH, DirecTV & Cable Box Tablet TV Control System
2:
Change their "Channels" on a tablet
3:
Simulates their Remote Controls
4:
Comes with FAVORITES (see pic)
5:
Field Upgradeable
6:
Supports Streaming Devices
7:
Optional WolfPad 10" Color Table
Make a Fair Offer
Ask an Expert
HDTV Supplys WolfPack 4K Sports Bar 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control is a preconfigured HDMI modular HDMI matrix switcher especially designed for sports bar and restaurant installations. It uses your tablet, not expensive touch pads or touchscreens or other devices. The matrix also supports multiple tablets, not just one, for other users to control use.

The Sports Bar 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control is simple and easy to use because its based on your floor plan and your tablet. It is easy to see what's playing on all of your TV's when used with DirecTV, DISH or Cable receivers.
.

This Sports Bar 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control can do the following with your Tablet using only one screen:

  • Send any of 8-DirecTV™ receivers to 16-TVs, in any combination
  • Change any of the 8-DirecTV™ TV channels
  • See a Video Window of what DirecTV™ is playing on your iPad
  • Put a single game on multiple TVs with one finger tap
  • Floor Plan Based
  • Optionally use cable boxes or other sources (*)
  • Optionally turn ON all your 16-TVs in the morning at once (*)
  • Optionally turn OFF all your 16-TVs at night at once (*)

By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair. It also has a back up power supply to keep you up at all times.

This Sports Bar 8x16 HDMI Matrix Switcher over CAT6 with DirecTV Control supports 1080p to 220 feet & 4K to 110 feet, maintains power reliability in the event of failure and offer the a great solution for any sports bar, night club or restaurant.

Reasons that sets our WolfPack™ Sports Bar HDMI Modular Matrix Switchers apart from others:

  1. Uses your tablet as you don't need to buy an expensive Touchscreen
  2. 7-inch color front panel display for local switching
  3. 4K/30 for the best picture
  4. Preset scenes that can be Saved and Recalled
  5. HDBaseT HDMI to CAT6 extenders
  6. Additional control via an iPad App, Android App, Web Browser (WEB GUI), RS232 & Front Buttons
  7. 2-Power Supplys w/automatic switch-over if a problem occurs
  8. 2-Year WolfPack Warranty
  9. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support

Sports Bar 8x16 HDMI Matrix Switcher over CAT6 with WolfPad Control Features:

  • Chassis size: 18 input and 18 outputs cards
  • Input Cards Supported:
    • 8 - 4K female HDMI single port cards = 8 - HDMI inputs
  • Output Cards:
    • 16 - RJ45 Ethernet connector cards to 1080p to 220 feet & 4K to 110 feet = 16 - HDMI outputs
    • 16 - CAT6 POC Receivers to 1080p to 220 feet & 4K to 110 feet = 16 - HDMI Receivers used that each TV
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Flexible card type design supporting 18 input cards and 18 output cards
  • Front-panel 7-inch color display for local switching
  • Rack-mountable
The base hardware unit of this Sports Bar 8x16 HDMI Matrix Switch over CAT6 with DirecTV Control can be seen at Build Your Own 4K HDMI Matrix Switch.

Why not buy this Sports Bar 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control today?

Sports Bar 4K 8x16 HDMI Matrix Switch over CAT6 with WolfPad Control Shipping Contents:

  • 1 - 18x18 Chassis with 7" Color Touch Screen
  • 8 - Female HDMI Input Cards
  • 16 - HDBaseT (CAT6) Output Cards with POC to 1080p to 220' & 4K to 110'
  • 16 - HDBaseT (CAT6) HDMI Receivers with POC to 1080p to 220' & 4K to 110'
  • 1 - Dual 7-inch 1080p Color Monitors (Deduct in OPTIONS if you do not want)
  •

The core of the 4K/30 Modular HDMI Matrix Switcher Chassis consist of an 18x18 Modular Matrix chassis and its highly configurable.



MORE SPECS:

HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, justy switch to the spare one.

4K 8x16 HDMI Matrix Switcher over HDBaseT CAT6 Extenders Specification:

  • Modular Configuration Chassis: 18 inputs/18 outputs
  • Input cable distance: ~12 feet with AWG24 HDMI 1.4 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI: up to 4K at 30 Hz 4:2:0
    • CATx: HDBaseT technology with 220 feet extenders at 1080p
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃
  • Dimensions of the 18x18 chassis: 8U - 482 x 390 x 355mm or 18.97" wide x 15.35" deep x 13.98" inches high
