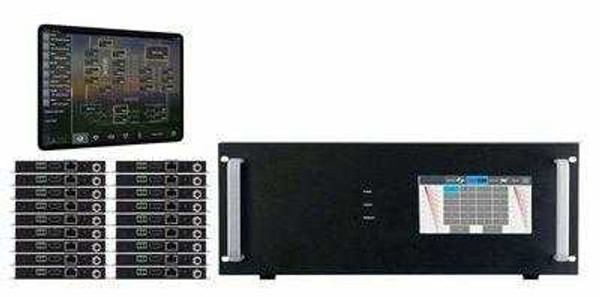

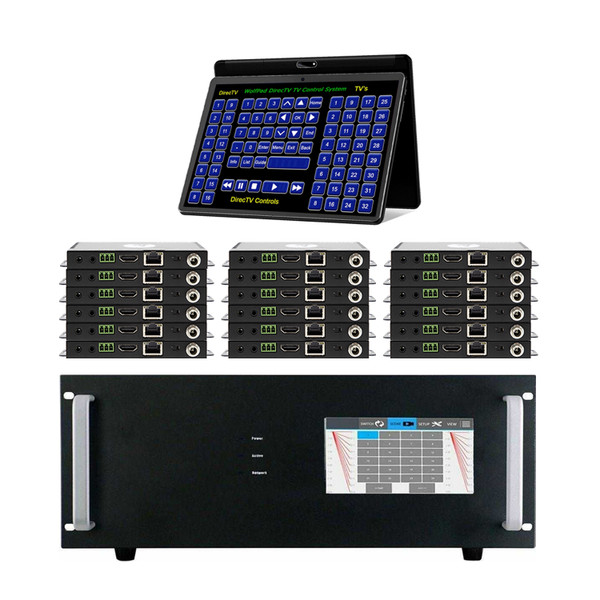

This Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switch over CAT6 can do the following with any tablet:
- Send any of 4-DirecTV, DISH, or Cables Boxes to 18-TVs, in any combination
- Change any of the 4-their TV channels on the tablet
- See a Video Window of what is playing on the tablet
- Put a single game on multiple TVs with one finger tap
- See your Floor Plan that you provide us
- See a real time video of the source selected
- Turn ON all your 18-TVs in the morning with one tablet button
- Turn OFF all your 18-TVs in the morning at with one tablet button
We think it's the best because it allows your tablet to become the complete control for all of your TVs and it also allows the user to see what is playing on the selected channels in real time, prior to changing the channel.
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair. It also has a back up power supply to keep you up at all times.
This Sports Bar 4x18 HDMI Matrix Switcher over CAT6 with DirecTV Control supports 1080p to 220 feet & 4K to 110 feet, maintains power reliability in the event of failure and offer the a great solution for any sports bar, night club or restaurant. Our 4K Sports Bar 4x18 HDMI Matrix Switcher over CAT6 with Tablet Control also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio systems, in your sports bar, night club or restaurant, or similar establishments.
Reasons that sets our WolfPack™ 4K 30 Hz Sports Bar HDMI Modular Matrix Switchers apart from others:
- Uses your tablet for control
- 7-inch color front panel display for local switching
- Supports a 4K 30 Hz for the best picture
- HDBaseT HDMI to CAT6 extension
- Additional control via an iPad App, Android App, Web Browser (WEB GUI), RS232 & Front Buttons
- 2-Power Supplys with one as backup
- 2-Year WolfPack Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switcher over CAT6 with Tablet Control Features:
- Chassis size: 18 input and 18 outputs cards
- Input Cards Supported:
- 4 - 4K female HDMI single port cards = 4 - HDMI inputs
- Output Cards:
- 18 - RJ45 Ethernet connector cards to 1080p to 220 feet & 4K to 110 feet = 18 - HDMI outputs
- 18 - CAT6 POC Receivers to 1080p to 220 feet & 4K to 110 feet = 18 - HDMI Receivers used that each TV
- Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
- Flexible card type design supporting 18 input cards and 18 output cards
- Front-panel 7-inch color display for local switching
- Rack-mountable
Why not buy this 4K 30 Hz Sports Bar 4x18 HDMI Matrix Switch over CAT6 with Tablet Control today?
Sports Bar 4K 40 Hz 4x18 HDMI Matrix Switch over CAT6 with Tablet Control Shipping Contents:
- 1 - 18x18 Chassis with 7" Color Screen
- 4 - Female HDMI Input Cards
- 18 - HDBaseT (CAT6) Output Cards with POC to 1080p to 220' & 4K to 110'
- 18 - HDBaseT (CAT6) HDMI Receivers with POC to 1080p to 220' & 4K to 110'
- 1 - Optional Dual 7-inch 1080p Color Monitors (Deduct in OPTIONS if you do not want)
- 2 - Optional HDMI Output cards w/2-HDMI outputs for the 1080p Dual 7-inch Color Monitors
- 2 - 3-foot HDMI cables for the Dual 7-inch 1080p Color Monitors
- 1 - Floor Plan Layout
The core of the 4K 30 Hz Modular HDMI Matrix Switcher Chassis consist of an 18x18 Modular Matrix chassis and its highly configurable.
NOTE: The system configuration has 2 - dedicated HDMI cards with 2-outputs on each, for the Dual 7-inch Color Monitors. Think of them as 2 - 1x2 HDMI splitters with the each monitor getting one output and the other HDMI output showing the same picture as the TV that is going to.
MORE SPECS:
HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.
Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply can be used by manually switching over to it.
4K 30 Hz 4x18 HDMI Matrix Switcher over HDBaseT CAT6 Extenders Specification:
- Modular Configuration Chassis: 18 inputs/18 outputs
- Input cable distance: ~12 feet with AWG24 HDMI 1.4 high speed cable
- Supported Input & Outputs Signals:
- HDMI: up to 4K at 30 Hz 4:2:0
- CATx: HDBaseT technology with 220 feet extenders at 1080p
- Power Supply: 100 to 240VAC, 50-60Hz
- Power Consumption: 50W 70W
- Operating Temperature: -10℃ to 50℃
- Storage Temperature: -25℃ to 55℃
- Dimensions of the 18x18 chassis: 8U - 482 x 390 x 355mm or 18.97" wide x 15.35" deep x 13.98" inches high
Why not buy this Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switch over CAT6 with Tablet Control today?
DO NOT USE EZ45 CAT6 CONNECTORS WITH HDBaseT PRODUCTS
CAT6 Installation Tips (Don't Use Patch Panels)
EDID Operation for the HDBaseT Transmitter
EDID Learning Instruction for the Cards
RS232 Commands in HEX and ASCII format
EDID Operation for the HDBaseT Transmitter
EDID Learning Instruction for the Cards
Why not buy this Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switch over CAT6 with Tablet Control today?
Reasons To Buy an HDTV Supply WolfPack Product
Why not buy this Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switch over CAT6 with Tablet Control today?
This WolfPack™ Modular Matrix Switchers can be used in Sports Bars, Restaurants, Casinos, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching.
Why not buy this Sports Bar 4K 30 Hz 4x18 HDMI Matrix Switch over CAT6 with Tablet Control today?
Q: Your cost to design a floor plan is $125/hour, correct?
A: No, its free.
Q: Can I turn all the TVs OFF & ON at once?
A: Yes, it's free.
Q: Are there rack mounts for it?
A: Yes, it's free
Q: If a user wants us to create the floor plan how does he pay for it, when it's done and he's happy or up front, or ?
A: One simple one-floor plan is free.
Q: Have you ever had any issues with an Apple or Android tablet firmware upgrade impacting your system?
A: No.
Q: What minimum size tablet do you recommend a new user to purchase?
A: Any Tablet should work fine but the bigger the better. The current interface will not be good on a phone sized device (and vertical orientation).
