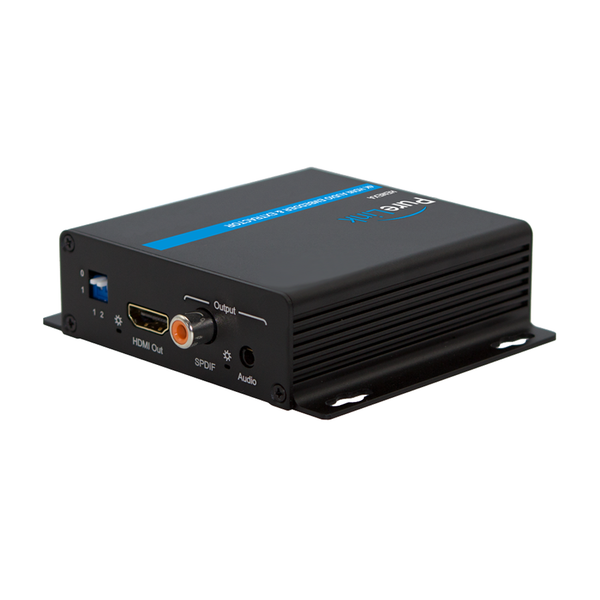

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor

PureLink

$269.99

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
HEMEXA
Availability:
In Stock
1:
HDCP 2.2/1.4
2:
Supports CEC
3:
Supports Uncompressed PCM
4:
Supports Resolution up to 4K 60Hz
5:
Free USA Shipping

This PureLink HEMEXA 4K HDMI Audio Embedder and Extractor supports up to 4K 60Hz resolutions. Easily embed or extract 2 channel analog or 5.1 SPDIF audio to or from any HDMI signal. The HEMEXA?? compact size makes it ideal for a technician?? toolbox and in applications including conferencing, live events, education, rental and staging, broadcast, house of worship, and many more.

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor Features:

  • Audio embedding of 5.1 SPDIF, Analog Audio 2.0 PCM
  • Extract digital HDMI audio signal from HDMI input to 2 channel analog stereo output or 5.1 channel audio output
  • Supports uncompressed PCM, Dolby, DTS audio
  • Supports resolution up to 4K 60Hz (18Gbps)
  • HDCP 2.2/1.4
  • Supports CEC

Why not buy this PureLink HEMEXA 4K HDMI Audio Embedder and Extractor today?

PureLink HEMEXA 4K HDMI Audio Embedder and Extractor Specifications:

Hardware

  • Input Signal Type(s):
    • (1) HDMI Type A [19-pin female]
    • (1) Analog Stereo Audio [3.5mm]
  • Output Signal Type(s):
    • (1) HDMI Type A [19-pin female]
    • (1) Analog Stereo Audio [3.5mm]
    • (1) Digital Audio [SPDIF]

Performance

  • Compliance: HDCP 2.2/1.4
  • Video input format: 0.5-1.0 Volts P-P
  • Supported Audio Formats: PCM, DTS-HD Master Audio, Dolby true-HD, etc.
  • Power Consumption: 1.5 watts (Maximum)
  • Input DDC Signal: 5 volts p-p (TTL)
  • Operating Temperature: -5C to 40C (23F to 104F)
  • Operating Humidity: 5 to 90% RH (No Condensation)
  • Support Video format: 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
  • Support Video Color Format: xv-YCC/deep color 36bit
  • Data Rate: 18 Gbps

Enclosure

  • Product Dimensions: 104.4mm x 89mm x 28.3mm
  • Product weight: 155g

Warranty

  • Warranty: Limited Warranty (3-Years)

Why not buy this PureLink HEMEXA 4K HDMI Audio Embedder and Extractor today?

PureLink HEMEXA User Manual

PureLink HEMEXA Specifications

Why not buy this PureLink HEMEXA 4K HDMI Audio Embedder and Extractor today?
