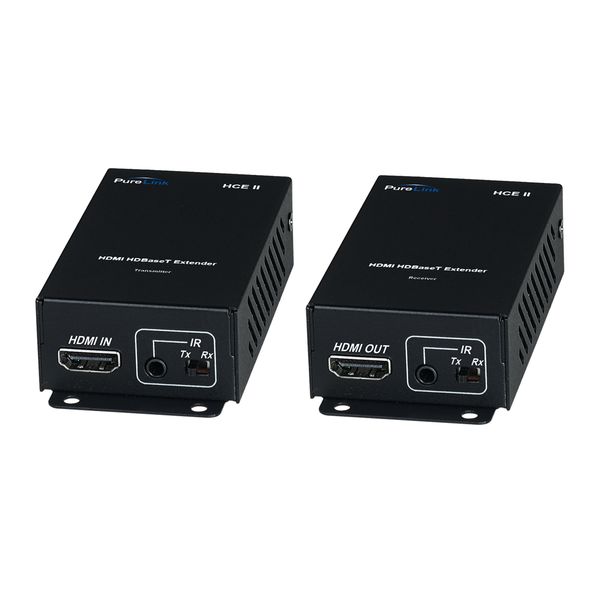

This PureLink HCE II TX/RX HDMI over HDBaseT Extension System provides an accessible, easy-to-install solution for extending HDMI video and embedded audio over long distances using a single CATx cable. The HCE II Tx/Rx supports full 3D content and extends uncompressed HDCP- protected HDMI content and embedded lossless audio formats with bi-directional control signals (IR) up to 230 feet (70m) at 1080p and up to 130 feet (40 meters) at 4K/Ultra-HD resolutions.
Individual units also available: HCE II Transmitter and HCE II Receiver
PureLink HCE II TX/RX HDMI over HDBaseT Extension System Features:
- Integrated HDBaseT technology
- Supports cable lengths up to 230 ft. (70 m) for resolutions up to 1080p
- Supports cable lengths up to 130 ft. (40 m) for resolutions up to Ultra HD/4K
- HDMI v1.4 support
- IR control
- Ultra slim design
Why not buy this PureLink HCE II TX/RX HDMI over HDBaseT Extension System today?
PureLink HCE II TX/RX HDMI over HDBaseT Extension System Specifications:
Performance
- Supported Distance: up to 130 ft. (40m) at Ultra HD/4K 30Hz and up to 230 ft. (70m) at 1920x1200 60Hz or 1080p 60Hz
- Supported Resolutions: VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
- Compliance: HDMI 1.4, HDCP 2.2
- Video Bandwidth: 10.2 Gbps
- IR Extension: Bi-directional IR control
- Power Supply: DC 5V, 2A
- Operating Temperature: 32F ~ 131F (0?~ 55?)
- Storage Temperature: -4F ~ 185F (-20?~ 85?)
- Relative Humidity: 10% ~ 80%
- MTBF: 50,000 hours
Enclosure
- Product Dimensions: 4.01 x 3.34 x 1.02 inches / 102.1 x 85.0 x 26.0 mm
- Product Weight: 0.61lbs (0.28Kg)
Warranty
- Warranty: Limited Warranty (3-Years)
Why not buy this PureLink HCE II TX/RX HDMI over HDBaseT Extension System today?
PureLink HCE II TX/RX User Manual
PureLink HCE II TX/RX Specifications
