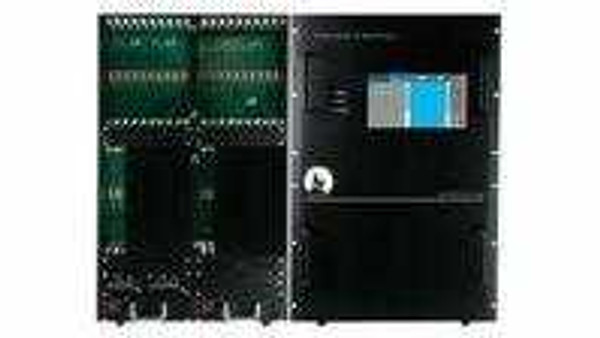

HDTV Supplys WolfPack™ Empty Modular Pre-owned 56x56 Modular Matrix Chassis w/o Cards is an integrated HDMI video and HDMI audio modular matrix chassis (only). The chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies.
The core of this 16U empty Pre-owned 56x56 Modular Matrix Chassis and its highly configurable backplane that supports up to 14 4-port input cards and up to 14 4-port output cards. You can control the switch via its IOS or Android app, 2-button fast switch from the front buttons, a WEB GUI control or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above and an optional Control4 driver.
The WolfPack Pre-owned 56x56 Modular Matrix Chassis manages many type of HDMI signals including HDBaseT CAT6 cabling. This 56x56 Modular Matrix Empty Chassis support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Used 56x56 Modular Matrix Chassis also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
This Pre-owned 56x56 Modular Matrix Chassis Feature:
- 56 input and 56 output capacity
- Input Cards Supported:
- 1080p, 4K/30 & 4K/60 HDMI
- Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
- HDBaseT Transmitters to 220 and 330 feet with CAT6/7 at 1080p with (POC) Power Over Ethernet
- 4K HDBaseT Transmitters to 110 and 175 feet with CAT6/7 at 4K/30 with (POE) Power Over Ethernet
- SDI, VGA, Component & Composite w/audio
- Video Wall cards
- Embedded Audio cards
- 100ms Switching time cards
- Fiber cards
- Cards with DIP switch scaling
- Output Cards Supported:
- 1080p, 4K/30 & 4K/60 HDMI
- Output HDMI cable distance: ~50 feet AWG24 HDMI 2.0 high speed cable
- HDBaseT Receivers to support 220 feet and 330 feet feet with CAT6/7 at 1080p with (POE) Power Over Ethernet
- 4K HDBaseT receivers to 115 and 175 feet with CAT6/7 at 4K/30 with (POE) Power Over Ethernet
- SDI, VGA, Component & Composite w/audio
- Video Wall cards
- De-embedded Audio cards
- 100ms Switching time cards
- Fiber cards
- Cards with DIP switch scaling
- HDCP 1.4 compliant
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control via an automation control system
- Supports both HDBaseT signal inputs & outputs and the 1080p distance can up to 220 or 330 feet feet with one Ethernet cable
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- Rack-mountable
Why not order a Pre-owned 4K/30 56x56 HDMI Matrix Switcher today?
Modular HDMI Matrix Routers Specs:
- Modular Configuration: 56 inputs and 56 outputs
- Input cable distance: ~25 feet AWG24 HDMI 1.4 high speed cable
- Output cable distance: ~50 feet AWG24 HDMI 1.4 high speed cable
- Resolution support: 4K/60, 4K/30, 1080p/60, 1080p/30, 1080i, 720p, 480p, but cannot support 480i
- Power Supply: 100 to 240VAC, 50-60Hz
- Operating Temperature: -10℃ to 50℃
- Storage Temperature :-25℃ to 55℃
Why not order a Pre-owned 4K/30 56x56 HDMI Matrix Switcher today?
Why not order a Pre-owned 4K/30 56x56 HDMI Matrix Switcher today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- Optional $100 7" Color Touch Screen on select models (Call)
- Dual RS232 ports are standard on select models
- Dual TCPIP ports are standard on select models
- DTVGame Sports Bar DirecTV™ Control System (Call)
- Allonis Sports Bar DirecTV™ Control System (Call)
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 URC Drivers
- Optional $129 Crestron Drivers
- Optional $99 Elan Drivers
- Optional $99 RTI Drivers
- Optional Harmony Remote Control Codes for select models (Call)
Why not order a Pre-owned 4K/30 56x56 HDMI Matrix Switcher today?
Control Drivers
- Control4 Drivers
- Elan Drivers
- RTI Drivers
- URC Drivers
- Crestron Modules
- We Need AMX Drivers
- We Need Extron Drivers
- We Need Savant Drivers
DirecTV Controller
Apps
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Mix-n-Match combinations:
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: What are the dimensions of the chassis?
A: It is 56x56: 16U - 18.98x15.35x27.99inch (482x390x711mm) inches (L/W/H)
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Why not order a Pre-owned 4K/30 56x56 HDMI Matrix Switcher today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com
