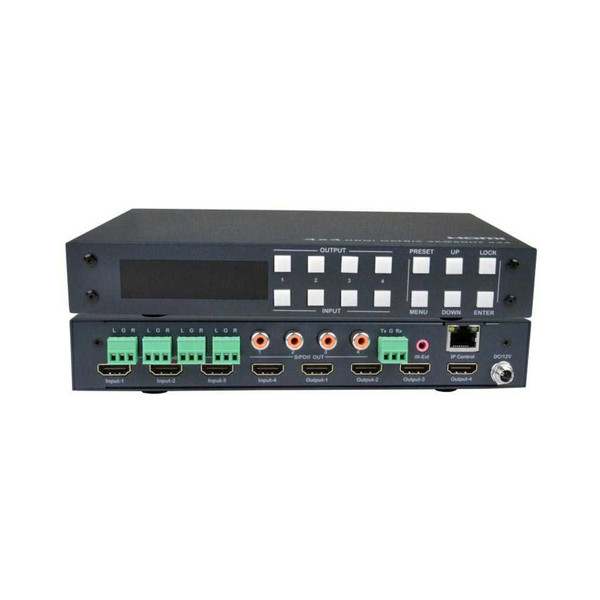

NTI SM-4X4-4K18GBA-LCV2 4x4 Low-Cost 4K 18Gbps HDMI Video Matrix Switch

NTI

$585.00
Part Number:
SM-4X4-4K18GBA-LCV2
Availability:
In Stock
1:
HDCP 2.2 Compliant
2:
Configure and Control the Switch
3:
Supports Ultra-HD 4Kx2K Resolutions
4:
Bandwidth up to 600 Mhz
5:
Free Shipping

This NTI SM-4X4-4K18GBA-LCV2 4x4 Low-Cost 4K 18Gbps HDMI Video Matrix Switch is Route Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI video and audio signals from many video sources to multiple displays.

The VEEMUX Low-Cost 4K HDMI Matrix Switch routes digital 4Kx2K HDMI video and audio signals from up to eight HDMI video sources (computers, Blu-Ray players, satellite receivers, etc) to up to eight displays (monitors, 4K TV's, projectors, etc).

NTI SM-4X4-4K18GBA-LCV2 Low-Cost 4K 18Gbps HDMI Video Matrix Switch Features:

  • Configure and control the switch through front panel buttons, Ethernet, IR remote control, or RS232.
  • Supports Ultra-HD 4Kx2K resolutions (4096x2160 and 3840x2160 @24/30/60Hz YUV 4:4:4) and HDTV resolutions to 1080p.
  • Each input can be independently connected to any or all outputs.
  • HDCP 2.2 compliant.
  • HDMI features supported:
    • HDMI 2.0
    • Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS 7.1 and LPCM
    • YUV 4:4:4
    • HDR
    • 3D
    • Bandwidth up to 600 Mhz (18 Gbps)
    • Lip Sync
  • Audio switching:
    • With the 4x4 model, audio switching follows video switching.
      • HDMI-embedded audio switching (four-channel stereo mixing).
      • L/R analog audio and SPDIF digital audio out ports for each source.
      • For example, if HDMI output 1 video is from HDMI input 3, then it will also receive audio from HDMI input 3. The L/R analog audio output 1 and the SPDIF audio output 1 will receive audio from HDMI input 3 also.
  • Configurable built-in EDID table.
  • Compact desktop design for the 4x4 model.

Why not buy this NTI SM-4X4-4K18GBA-LCV2 Low-Cost 4K 18Gbps HDMI Video Matrix Switch today?

NTI SM-4X4-4K18GBA-LCV2 Low-Cost 4K 18Gbps HDMI Video Matrix Switch Specifications:

  • Inputs
    • Female HDMI input connectors
    • Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video.
    • Supports HDCP 2.2/1.4
  • Outputs
    • Female HDMI output connectors
    • RCA jacks for SPDIF digital audio.
    • Screw terminals for analog stereo audio (4x4 model only).
    • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
    • Supported resolutions
      • 4Kx2K (4096x2160 and 3840x2160) @24Hz/30Hz/60Hz YUV 4:4:4
      • 480p @60Hz, 576p@50Hz, 720p@60Hz, 1080p @24/50/60/120/144Hz
    • Supports HDCP 2.2/1.4
    • Video bandwidth: 600MHz (18 Gbps)
  • Power
    • SM-4X4-4K18GBA-LCV2
      • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (AC adapter included.)
      • Output: 12VDC, 2.0A
      • Power consumption: 14W
  • Environmental
    • SM-4X4-4K18GBA-LCV2
      • Operating temperature: 32 to 104°F (0 to 40°C).
      • Storage temperature: 14 to 122°F (-10 to 50°C.)
      • Operating and storage relative humidity: 5 to 90% non-condensing RH.
  • Dimensions WxDxH (in):
    • SM-4X4-4K18GBA-LCV2: 8.51x5.06x1.34 (216x129x34 mm).
  • Cables
    • Interface cables between the video sources/displays and the switch are required for proper operation.
      • Supports cable lengths to 20 feet for 4Kx2K resolutions at 60Hz and lengths to 50 feet for 1080p at 60Hz using passive HDMI cables.
        • Cables longer than 50 feet can be used provided they have a built-in video equalizer (also known as "active HDMI cables").
    • Use HD-xx-MM HDMI cables to connect an HDMI source or display.
      • HD-3/6/10/15-MM supports resolutions to 4K@60Hz.
      • HD-25/30/50-MM supports resolutions to 1080p@60Hz.
    • Use HD-ACT-xx-MM 4K HDMI Active Cables to connect an HDMI source or display up to 100 feet.
      • HD-ACT-20/25/30/40/50-MM supports resolutions to 4K@60Hz (18 Gbps).
      • HD-ACT-60/75/100-MM supports resolutions to 4K@30Hz (10.2 Gbps).
    • Use DP-HD-xx-MM to connect a 4K@60Hz DisplayPort computer up to 15 feet.
    • Use USB3C-HD4K-xx-MM to connect a 4K@60Hz computer with USB Type C connector up to 10 feet.
    • Use DVI-HD-xx-MM cable to connect a DVI source.
    • Supports resolutions to 1080p.
    • Cables not included.
  • Regulatory Approvals: CE, FCC, RoHS
  • Warranty: Two years
  • Package Includes
    • One 4K HDMI Video Matrix Switch
    • One power adapter
    • One IR remote
    • One IR extension cable
  • Compatible NTI Products
    • Combine NTI's extenders, switches, splitters and cables for complex applications
      • 4K HDMI Extender via One CATx (ST-C64K-300)
        • Each output on the switch must be set to 3840x2160 @ 30Hz.
      • Video Wall Processor (SPLITMUX-4X4-HDVWC)
