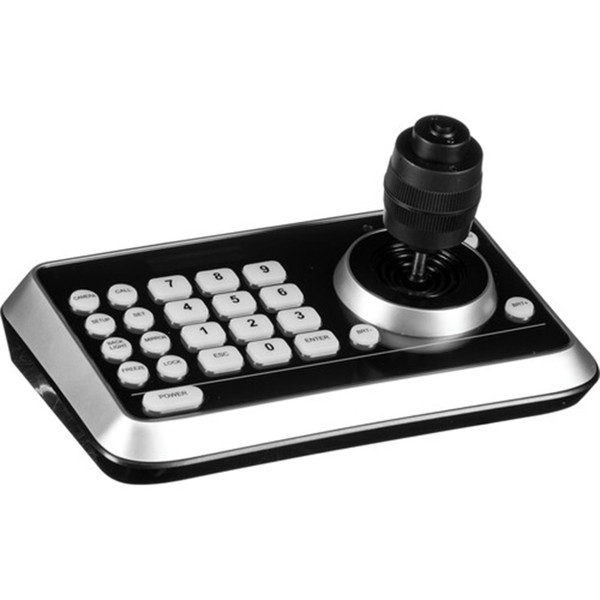

Lumens VS-K20 PTZ Camera Controller with Joystick

Lumens

Lumens VS-K20 PTZ Camera Controller with Joystick
Price: $619.00
Today's Price: $599.00

10% Discount. Apply Code 10percentOff at Checkout!

Part Number:
VS-K20
Availability:
Usually ships the same business day
1:
RS-232, RS-422 Control
2:
Supports VISCA and PELCO D Protocols
3:
Joystick for Variable Speed Camera Control
4:
Capable of Supporting up-to 7 PTZ Cameras
5:
Free Shipping
6:
5-Year Lumens Warranty

This Lumens VS-K20 PTZ Camera Controller with Joystick is a compact PTZ camera controller that weighs just 500g (1.1lbs) Quick to set up and easy to use, it is surprisingly powerful, capable of supporting up-to 7 PTZ cameras. The unit can control cameras that conform to the VISCA and PELCO-D protocols and enables users to connect devices over long distances via RS-232 or RS-422.

Creative Results: With a clean look and minimalist design, VS-K20 is capable of great results. Each button is backlit for fast selection while the joystick is high quality and enables the operator to control each camera with precision. Pan, tilt and zoom sensitivity and speed can be set manually, ready for slow panning shots or fast action sports.

Ease of Use: All key camera functions are at hand. Users have very fast access to camera presets, zoom angle, and multi-axis camera motion. Whether you’re looking for a portable unit, a device that can be operated with a minimum of training, or simply a cost-effective solution, VC-K20 is a great option. If you need an IP-based controller, check out Lumens VS-KB30.

Lumens VS-K20 PTZ Camera Controller with Joystick Features:

  • RS-232, RS-422 control
  • Supports VISCA and PELCO D protocols
  • Joystick for variable speed camera control
  • 5 Year Warranty

Why not buy this Lumens VS-K20 PTZ Camera Controller with Joystick today?

Lumens VS-K20 PTZ Camera Controller with Joystick Specifications:

  • Comm. Interface: Mini Din 8PIN
  • Protocol: VISCA
  • Baud Rate: 9600/38400 bps
  • Camera Control (Max.): 7
  • Joystick: 4-axis (Pan/Tilt/Zoom/Focus)
  • Display: OLED
  • Backlight: Auto / Manual
  • Power: DC12V
  • Power Consumption: < 2W
  • Dimensions (L x W x H): 200 x 120 x 103 mm (7.9” x 4.7” x 4.1”)
  • Weight: 0.5 kg (1.1 lbs)

Why not buy this Lumens VS-K20 PTZ Camera Controller with Joystick today?

Lumens VS-K20 User Manual

Lumens VS-K20 Specifications
