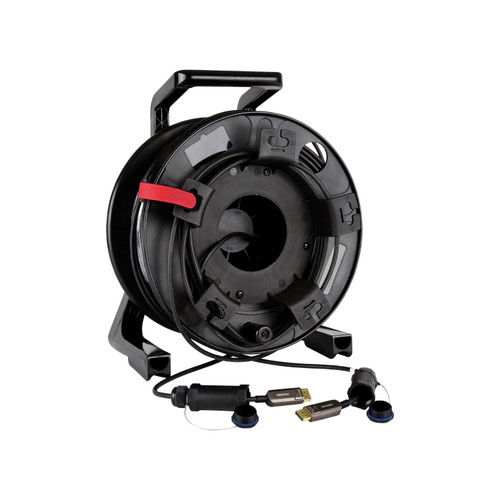

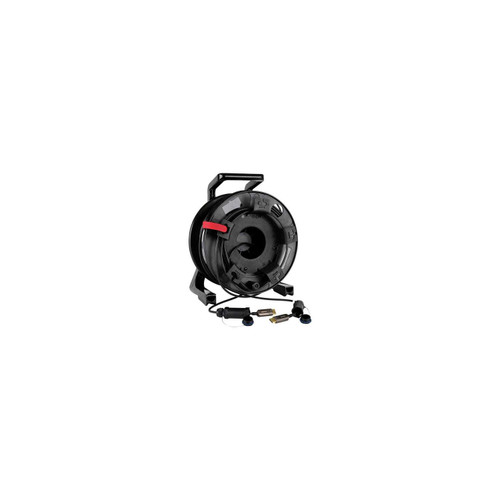

This Kramer CRS-PlugNView-DP-262 Active Optical Armored 4K Display Port Cable 262ft is a high−speed DisplayPort active optical cable (AOC) designed with heavy−duty durability perfectly suited for the harshest use and abuse expected from rental and road applications. CRS−PlugNView−DP supports resolutions up to 8K@60Hz, 32 Gbps over long cable runs up to 100 meters without the need for an external power supply or additional extenders.
Kramer CRS-PlugNView-DP-262 Active Optical Armored 4K Display Port Cable 262ft Features:
- High Resolution over Long Range — Active cable supports resolutions up to 8K@60Hz over long cable runs up to 100 meters.
- High Data Transfer Rate — Up to 32 Gbps.
- No External Power Needed — Powers the active units via the DisplayPort connector with a power consumption of less than 0.5W for each end.
- Supported Features — HDCP 1.4/2.2, HDR–10, HLG, Dolby Vision™, deep color, x.v.Color™, 5.1/7.1 lossless Dolby® TrueHD, DTS–HD Master Audio®, and EDID.
- Extremely Durable — integrated. stainless steel, corrugated tube with Kevlar reinforcement protects the internal optical fibers. A TPU jacket, heavy duty connectors and robust waterproof & impact resistant connector covers ensure high pulling strength and compression load. Dispensed from a solid, mobile plastic spool.
- Varied Selection of Lengths — Available in versions from 10 to 100m (33 to 262ft).
Why not buy this Kramer CRS-PlugNView-DP-262 Active Optical Armored 4K Display Port Cable 262ft today?
Kramer CRS-PlugNView-DP-262 Active Optical Armored 4K Display Port Cable 262ft Specifications:
VIDEO
- Video Resolution: Up to 8K 60Hz
- Data Rate: Up to 32 Gbps
- Supported color spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
- Supported Features: HDCP 1.4/2.2, HDR–10, HLG, Dolby Vision™, EDID
AUDIO
- Supported Audio Formats: Dolby® Digital Plus, Dolby® TrueHD, DTS–HD Master Audio®, DVD Audio, SA–CD
PHYSICAL
- Connector-1 (source end): Male DisplayPort, 24K gold–plated
- Connector-1 (display end): Male DisplayPort, 24K gold–plated
- DisplayPort Connector Dimensions: 2.78″x 0.78″x 0.55″ (70.7mm x 20mm x 14mm)
- Cable Structure: Hybrid Optical Fiber Cable
- Fiber Optic: 50/125u OM3 fiber
- Armor Material: Kevlar® and stainless steel
- Long Term Crush Resistance: 1000N (100 kg, 225lbs)
- Short Term Crush Resistance: 2000N (204 kg, 450lbs)
- Bending Radius: 10 D (Dynamic) / 20 D (Static)
- Long Term Tensile Strength Test: 400N (41 kg, 90lbs)
- Short Term Tensile Strength Test: 800N (81 kg, 180lbs)
JACKET
- Material: TPU (thermoplastic polyurethane)
- Color: Black
- Diameter: 5.8mm
POWER
- Source: No external power supply is needed (draws current from the video source and sink)
ENVIRONMENTAL CONDITIONS
- Operating Temperature: +32~+122?F (0~+50?C)
- Storage Temperature: –40~+158?F (–40~+70?C)
- Operating Humidity: 10 ~ 80%
REGULATORY
- Environmental: CE, FCC
- Safety: RoHS 2011/65/ EU
PRODUCT DIMENSIONS
- 24.00cm x 20.00cm x 32.00cm (9.45" x 7.87" x 12.60" ) W, D, H
PRODUCT WEIGHT
- 5.2kg (11.5lbs) approx.
SHIPPING DIMENSIONS
- 38.50cm x 26.50cm x 47.00cm (15.16" x 10.43" x 18.50" ) W, D, H
SHIPPING WEIGHT
- 6.3kg (13.9lbs) approx.
Why not buy this Kramer CRS-PlugNView-DP-262 Active Optical Armored 4K Display Port Cable 262ft today?
Kramer CRS-PlugNView-DP-262 Data Sheet
