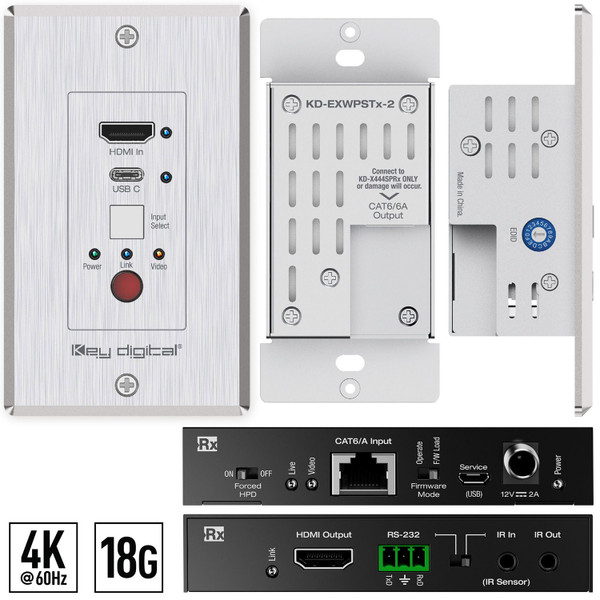

This Key Digital KD-XWPS HDMI USB-C over 50m CAT6 Wall Plate Extender Set is a single-gang wall-plate switcher transmitter + receiver kit with one HDMI and one USB-C input ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more. KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliancy and extends video resolutions up to 4096x2160 at 60hz with 4:4:4 chroma sub-sampling over a single CAT6/6A cable up to 164ft (50m).
In addition to HDMI video and audio signals, KD-XWPS features an IR sensor on the faceplate to control remotely located equipment. KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles. The wall-plate unit fits in a standard US single-gang box and is powered by the Rx unit for convenient installation.
- Auto Switching transmitter with HDMI and USB-C inputs
- Kit includes transmitter, receiver, power supply, decora plate, IR emitter, and screws
- Only requires power supply on the Rx unit
- Extends 4K 18Gbps signals with HDR up to 164ft / 50m
Key Digital KD-XWPS HDMI USB-C over 50m CAT6 Wall Plate Extender Set Features:
- Presentation Switching: 1 HDMI and 1 USB-C selected by push button or auto switching
- Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled
- Complete Kit: Includes Tx (model KD-EXWPSTx) and Rx (model KD-X444SPRx) units
- Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
- Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate CAT6/6A transmission channel
- Power over CAT: Wall plate Tx unit powered by Rx
- Signal Extension: 4K/UHD (up to 18G) & 1080p - up to 50m / 164ft
- IR Sensor: Wall-plate collects line-of-sight IR from remote(s) without external IR wiring
- Surround Audio Support: Dolby ®, DTS™ (formats up to 5.1 / 6.1)
ADDITIONAL FEATURES
- HDCP Licensing: Fully licensed and compatible with HDCP 2.2
- HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
- Deep Color Support: Up to 4K/UHD 30Hz 4:4:4/12 bits or 60Hz 4:2:2/12 bit
- Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, EDID Control handshake, and Hot Plug Detection Voltage
- EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the Rx display/device
Why not buy this Key Digital KD-XWPS HDMI USB-C over 50m CAT6 Wall Plate Extender Set today?
Key Digital KD-XWPS HDMI USB-C over 50m CAT6 Wall Plate Extender Set Specifications:
Technical:
- AV Inputs: 1x HDMI, 1x USB C
- AV Outputs: 1x CAT6/6A RJ45
- DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
- USB-C Signal: Input Video Signal: 1.2 Volts p-p
- RJ45 Connectors: Shielded Link Connector, CAT6/6A
- RS-232 Connector: 3-pin phoenix terminal
- IR: 1x IR Sensor at Tx unit, 1x 3.5mm mono output at Rx unit
General:
- Regulation: CE, RoHS, WEEE, EAC
- Tx Wall plate: U.S. 1-gang wall plate in aluminum enclosure
- Decora plate: Brushed aluminum
- Rx Enclosure: Black Metal
- Product Dimensions (Tx): 1.92 x 4.13 x 1.42” (49 x 105 x 36.2 mm)
- Product Weight (Tx): 0.6 lbs (0.27 kg)
- Product Dimensions (Rx): 4.3” x 4.12” x 0.82” (109.2 x 104.6 x 20.8mm)
- Product Weight (Rx): 0.595 lbs (0.27 KG)
- Packaging Dimensions: 10.23 x 5.67 x 3.15” (260 x 144 x 80mm)
- BTU: 30.7 per hour
- Packaging Weight: 1.98lbs (0.9 kg)
ACCESSORIES
- Qty 1: Brushed aluminum decora plate
- Qty 2: Decora mounting screws with flat head
- Qty 2: Gang-box mounting screws
- Qty 1: 12V/2A (24W) Power supply with screw-in connector. Desktop type. Model KD-PS12V2ASC.
- Qty 1: 5ft Micro USB to USB A data cable (USB 2.0)
- Qty 1: IR Emitter with 3.5mm mono end
- Qty 2: L mounting bracket for Rx unit
- Qty 2: Velcro for Rx unit
