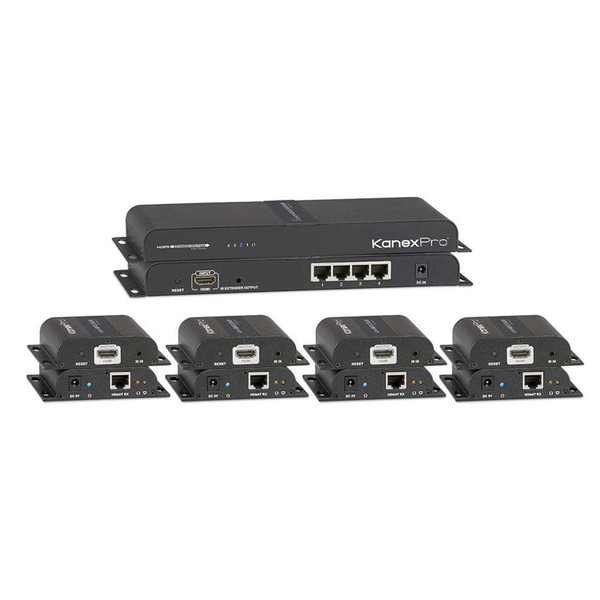

This KanexPro SP-HDCAT1X4 HDMI 1x4 Distribution Amplifier 120M over CAT5e/6 Outputs is a one transmitter and four receiver amplifier set that enables high resolution 1080p HDMI signals to be routed over distances up to 394ft.(120m) significantly beyond the capability of standard HDMI connectivity. When connected together using four economical and installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into four identical outputs carrying 394 ft./1080p resolution simultaneously from the provided receivers. For control options the 1x4 splitter comes with IR receivers for each of the four receivers and provides IR pass-back function to control the HDMI source device remotely from the displays.
This HDMI amplifier offers an ideal, cost effective means for extending digital video, multichannel audio, and control signals using IR from HDMI equipped devices. Each receiver works with the splitter as a full functional unit enabling full 1920 x 1080p/60 resolution.
Applications: Perfect for house of worship centers, retail stores and residential /smart home theater applications where one HDMI device can be distributed to four displays over a single network cable up to 394 ft. without losing signal integrity.
HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.
KanexPro HDMI 1x4 Distribution Amplifier 120M over CAT5e/6 Outputs
- Distribute & Extend HDMI over Single CAT5e/6 to four HD displays
- Includes 4-independent receivers
- Supports transmission distance up to 394 ft. (120m)
- Supports full HD 1080p (1920 x 1080@60Hz)
- Can be cascaded to more displays by adding a switch or a router
- Works on existing network without sacrificing bandwidth
- Control via IR (kits included)
- Supports 5.1, 7.1 digital audio and uncompressed LPCM
- Live status indicator thru LED's
- HDCP 1.4 & EDID support for multiple displays
- Simple set up with zero configuration
- Wall-mountable design
Why not buy this KanexPro HDMI 1x4 Distribution Amplifier 120M over CAT5e/6 Outputs today?
KanexPro HDMI 1x4 Distribution Amplifier 120M over CAT5e/6 Outputs
- Interface:
- Transmitter x 1:
- Input: HDMI x1
- Output: Cat5e/6 x4
- Receiver x 4:
- Input: Cat5e/6 x1 per receiver
- Output: HDMI x1
- Transport Protocol: Via Ethernet
- Vertical Frequency Range: 50/60Hz
- Video Resolutions (HDTV): 480i,576i,480p,576p,720p,1080i,1080p
- Power Supply for Splitter Amplifier:
- Input Voltage:100-240V , 50/60Hz, 0.3A
- Output Voltage: 5V DC@2A
- Power consumption: 3.5 Watts
- Power Supply for Receiver:
- Input Voltage:100-240V , 50/60Hz, 0.2A
- Output Voltage: 5V DC@1A
- Power Consumption: 3 Watts
- Operating Temperature: 0˚C +60˚C
- Regulatory Approvals: FCC, CE, UL
- Dimensions for 4 Ports Splitter Amplifier:
- 11.7" x 4.3" x 1.16" (W299 x D110.7 x H29.6mm)
- Dimensions for receiver:
- 3.8" x 3.7" x 0.93"(W96.8mm x D94 x H23.7)
- Total Weight:
- Tx: 0.94 lbs. (430g)
- Rx: 0.31 lbs. (142g)
HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.
HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
