KanexPro KAN-EXT-USB2100M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver 100M

KanexPro

Call for availability

Part Number:
KAN-EXT-USB2100M
UPC:
813982022379
Availability:
Usually ships the same business day
1:
Ultra Slim 330ft. (100m) USB 2.0 Extender
2:
Features One USB-B Port Input in Transmitter
3:
Simple Plug and Play
4:
Compact Design for Easy
5:
Free Shipping & 3-Year KanexPro Warranty

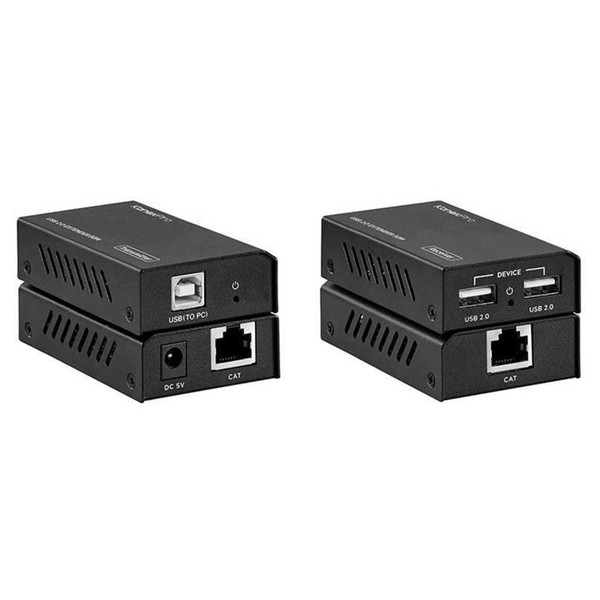

This KanexPro KAN-EXT-USB2100M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver Set - 328 Feet/100M is a compact USB 2.0 transmitter - receiver set designed to extend USB 2.0 (480Mbps) signals from a Printer, touch screen, USB hub, USB camera or Human Interface Device (HID) to a Host PC remotely located 330 feet away. The system is simple, plug and play and it's ready to go. No drive and setting installation required.

Industry Standard USB 2.0 480Mbps
USB 2.0 (High-speed USB) provides enough bandwidth for multimedia and storage application. USB 2.0 has full forward and backward compatibility with original USB 1.1 devices and works with cables and connectors made for original USB, too.

Applications:
USB 2.0 supports low-bandwidth devices such as keyboards and mice, as well as high-bandwidth ones like high-resolution webcams, scanners, printers and high-capacity storage systems.

The extender kit includes two units: transmitter unit and receiver unit.

KanexPro KAN-EXT-USB2100M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver Set - 328 Feet/100M Features:

  • Ultra Slim 330ft. (100m) USB 2.0 extender
  • Simple plug and play, no drive and setting installation required
  • Supports USB 2.0 protocol, transmission rate up to 480Mbps
  • Features one USB-B port input in transmitter
  • Features two USB 2.0 ports outputs on the receiver
  • Compact design for easy and flexible installation
  • Backed by KanexPro 3-Year Parts and Labor Warranty

Why not buy this KanexPro KAN-EXT-USB2100M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver Set - 328 Feet/100M today?

KanexPro KAN-EXT-USB2100M Compact USB 2.0 over Cat6 Extender Transmitter / Receiver Set - 328 Feet/100M Specifications:

  • Technical
    • USB protocol: USB 2.0
    • Transmission rate: Up to 480Mbps
    • Transmission distance: 100M (328ft)
    • ESD Protection: Human-body Model:±8kV (Air-gap discharge), +/-4kV (Contact discharge)
  • Connections
    • Transmitter: Input port: 1xUSB [USB-B, female] Output port: 1xCAT [RJ45, female]
    • Receiver: Input port: 1xCAT [RJ45, female] Output port: 2xUSB [USB-A, female]
  • Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: Transmitter / Receiver: 82mm (W)x49mm (D)x20mm (H)
    • Weight: Transmitter / Receiver: 100g
    • Power Supply: Input: AC100~240V 50/60Hz, Output: DC 12V/1A
    • Power Consumption: Transmitter: 1.3W, Receiver: 2.3W
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)

Item Includes:

  • 1x USB2 100M Transmitter
  • 1x USB2 100M Receiver

Warranty:

  • 3-Year Parts and Labor Warranty
