The KanexPro HDSC71D-4K is a 7-input, 2-mirrored (HDMI & HDBaseT) output presentation scaler- switcher engineered to support native 4K inputs and output for collaboration and presentation systems. It consists of 4xHDMI, 1xDisplayPort, 1xDVI-I & 1xVGA/YPbPr inputs for connecting digital sources and analog VGA based sources to dual 4K displays supporting resolutions to 3840x2160@30Hz. This HDCP compliant switcher provides built-in EDID management for faster output to displays and also support control via front - Panel buttons, RS-232 and web based interface to work with any third-party control systems.
Just Click-to-Show me your content
The switcher includes two 4K-HDCLICKERs, which are HDMI based cable controllers designed to connect and fast-switch HDMI source devices. When connected to the presentation system just click-to-show the content instantly on to the 4K display. The HDSC71D-4K optimizes the way we do video collaboration and presentations. These 4K-HDCLICKERs product brings together people, space, and information to amplify collaboration, and help distributed teams accelerate innovation while displaying their content one at a time directly from laptops, DisplayPort and HDMI based devices.
Stress-free Integration
The HDSC71D-4K can be easily integrated with table or wall cable connection boxes by simply connecting our 4K-HDCLICKER in conference applications to ensure the team can visually focus on the work at hand and elevate the role of content sharing to one 4K Display. And it seamlessly works with any Video conferencing systems such as Polycom, Cisco, and Avaya.
Applications:
Designed for classrooms, conference rooms, huddle rooms and other collaborative spaces where digital and analog sources need to be switched and scaled in a fast and reliable manner.
Please note: The HDBASE70POER receiver is not included with this system, contact our sales team on ordering these to complete your installation.
Tip: To reduce video dropout problems from lighting, ceiling fans and other EMI issues, it is strongly recommended to use shielded CAT5e/CAT6 and use shielded RJ45 connectors with our HDBaseT products.
HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.

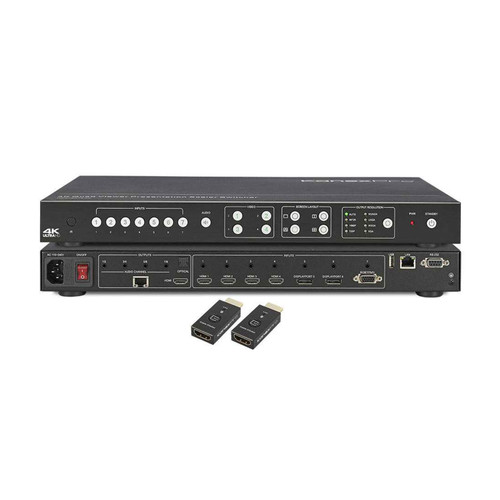

KanexPro 4K Multi-input 7x2 Presentation Scaler Switcher
- 4K Multi-input 7x2 Presentation Scaler Switcher with HDBaseT
- Elite 4K scaling engine to support up-scaling & down-scaling
- Includes two 4K-HDCLICKERS for Click-to-Show me your content
- Accepts 4K input resolutions 3840x2160@30Hz
- Native 4K input / output scaling
- Independent Audio Switching
- Multiple Inputs: 4xHDMI, 1xDisplayPort, 1xDVI-I & 1xRGB/YPbPr
- Mirrored outputs: 1xHDMI & 1xHDBase-T with standard 48v PoC
- Smart Scaling automatically responds to displays EDID and scales video to support the best resolution
- DisplayPort input resolution up to 3840x2160@60Hz
- Supports auto-scaling by auto-detecting EDID from display to scale optimized resolution
- Supports MHL inputs via HDMI
- Provides break away audio
- Unbalanced stereo analog & digital coax audio output
- Supports auto-selection of active HDMI audio (high priority) or external stereo audio
- Control via front panel buttons, IR, RS232 & LAN (Web)
- Integrates with table or wall cable connection boxes in conference applications
- Portable mountable enclosure
- Mounting hardware included
Why not buy this KanexPro 4K Multi-input 7x2 Presentation Scaler Switcher today?
KanexPro 4K Multi-input 7x2 Presentation Scaler Switcher
- Supported Formats
- Resolutions (max.): 3840x2160 @30Hz(4K x 2K @30Hz)
- Electrical
- Screen layout Select Buttons: 4 x Tact-type, green backlight
- Video Select Buttons: 4 x Tact-type, green backlight
- Inputs Select Buttons: 7 x Tact-type, green backlight
- Audio Select Button: 1 x Tact-type, green backlight
- Output Resolution Select Button: 1 x Tact-type, green backlight
- On / Standby Button: 1 x Tact-type, green backlight
- Output Resolution Indicators: 8 x LED, green
- Power Indicator: 1 x LED, red
- Connectors
- Video Input:
- 4 x HDMI Type A 19-pin, female
- 2 x DisplayPort (Full Size) 20-pin, female
- 1 x VGA DB-15 15-pin, female
- Video Output: 1 x HDMI Type A 19-pin, female
- Audio Input: 7 x 3.5mm mini-stereo
- Audio Output: Audio Output
- 1 x Optical
- RS-232: 1 x DB-9, female
- IP Control(LAN): IP Control(LAN)
- USB(Reserve for firmware update): USB(Reserve) firmware update
- AC Power: 1 x 110~240V AC 3-pin
- Operational
- Power Input: 110~240V AC
- Power Consumption: 15W (max.)
- Physical
- Dimensions: (W x H x D) 12.6 x 1.7 x 7.3
- (321mm x 43.5mm x 185mm)
- Unit Weight: 3.3 lbs. (1.5 kg)
