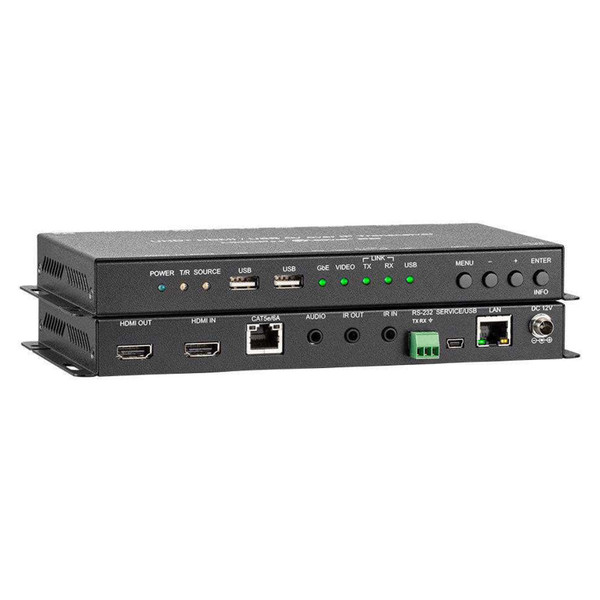

KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE with USB/PoE and RS-232
KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE with USB/PoE and RS-232 is the most versatile flexible video distribution solution. The system is composed of transceiver devices that can be configured as either video transmitters or receivers with a simple click of a mouse. The whole system is controlled and configured by a single control module which makes setup a snap.
KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE with USB/PoE and RS-232 Features:
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Can be configured to function as either a Transmitter or a Receiver
- 1 HDMI input
- 1 HDMI output (Functions as local monitor output in Transmitter Mode)
- 1 analog stereo jack (Functions as an input in Transmitter Mode and an output in Receiver Mode)
- 2 USB 2.0 (TypeA) ports and 1 USB 2.0 (MiniB) port
- IP switchable with minimum latency (Requires EXT-PROCTRL)
- Ultra-light compression, lossless for most content
- Extension up to 100m in point-to-point mode (w/ Cat.6A cable)
- Independent breakaway A/V matrix switching (Requires EXT-PROCTRL)
- Video wall generation (Requires EXT-PROCTRL)
- Multi-view compositing (Requires EXT-PROCTRL)
- Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Genlock mode only)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources
- Analog stereo audio extension, insertion and extraction (Requires EXT-PROCTRL)
- Bidirectional LAN, IR & RS-232 extension
- Unit can be powered directly by PoE when connected to a 10 Gigabit Ethernet (10GbE) switch that provides PoE (802.3af)
- Signal transmission interfaces with 10-Gigabit Ethernet switches via a single Cat.6A cable
- Basic configuration via front panel buttons with an On-Screen Display (OSD)
- Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)
Why not buy this KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE with USB/PoE and RS-232 today?
KanexPro EXT-PROMATRIXUSB Flexible Matrix System Transceiver Powered by SDVoE with USB/PoE and RS-232 Specifications:
Technical
- HDMI Compliance: HDMI 2.0, 1.4b
- HDCP Compliance: HDCP 2.0, 1.4
- Video Bandwidth: 18 Gbps
- Ethernet Bandwidth: 10 Gbps
- Video Resolutions: 720x400@70/85 ~ 4096x2160p@50/60Hz
- Output Video Type: HDMI
- IR Frequency: 38kHz
- Baud Rate: 57600 (Default), up to 115200bps
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 8-bit
- HDMI Audio Formats: LPCM 8CH, 32, 44.1, 48KHz
- L/R Audio Formats: Analog Stereo 2CH
- ESD Protection: Human body model +- 8kV (air-gap discharge) & +- 4kV (contact discharge)
Transceiver
Inputs - 1x HDMI Type A (19-pin female)
- 1x L/R Audio In (3.81mm Phoenix connector)
- 1x RS-232 (3.81mm Phoenix connector)
Bi-directional
- 1x 10GbE LAN (RJ45 connector)
Outputs
- 1x HDMI Type A (19-pin female)
- 1x L/R Audio Out [3.81mm Phoenix connector)
- 1x Debug (3.81mm Phoenix connector)
Pass-Through
- 1x Stereo Audio
- 1x RS-232 (3-pin Terminal Block)
- 1x IR Extender
- 1x IR Blaster
- 2x USB 2.0 (Type A)
- 1x USB 2.0 (Mini B)
- 1x LAN (RJ45)
Mechanical
- Housing: Metal Enclosure, Steel
- Color: Black
- Weight: 2.134lbs
- Power Supply:: 24.5 watts
- Operation Temperature: 32 - 104°F
- Storage temperature: -4 - 140°F
- Relative Humidity: 20 - 90% RH (no condensation)
