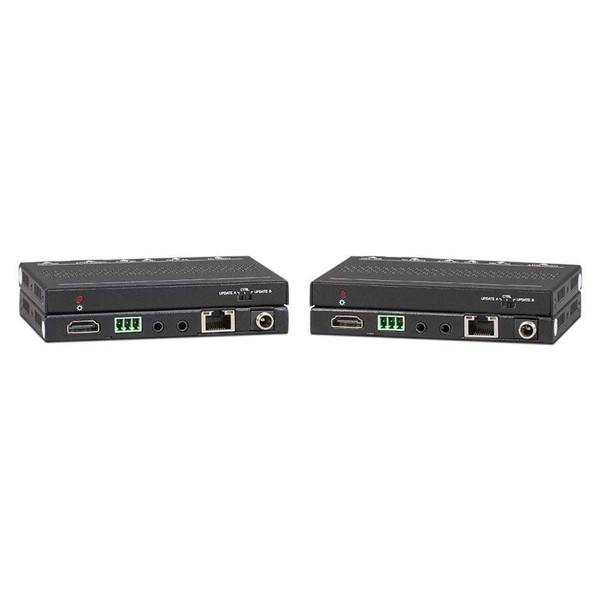

This KanexPro EXT-70SL18G extender is an UltraSlim 4K /60Hz transmitter - receiver set designed to extend natural and uncompressed ultra HD 4K signals from your HDMI source device to a 4K display remotely located 230 feet away. It also supports PoH (power over HDBaseT) requiring you to power only from one side, either the sender or receiver. For dynamic range and wide color range (gamut) HDR and 4:4:4 Chroma color sampling are one of the key features of these extenders.
Compliant with HDCP 2.2, this extender set supports EDID and CEC pass-through to enable HDMI-CEC enabled devices to communicate and operate smoothly. For control, it provisions bi-directional IR and RS-232 pass-thru to send control commands to 4K displays for turning on/ off and other functions.
Applications:
Ideal for use in digital signage applications, healthcare AV, control rooms, educational facilities, airports, commanding centers and smart homes.
Please note use a CAT5e/6 cable with low impedance STP(Shielded twisted pair) is recommended with proper grounding for excellent transmission of AV signals.
HDTV Supply is proud to be a Kanex Pro Authorized Reseller and provide a 3-YEAR WARRANTY at no cost to you. HDTV Supply also will Price Match if you find a lower price from an Authorized Kanex Pro Reseller conforming to the specs on this product page. All Kanex Pro products come with insured FREE SHIPPING together with Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support.
KanexPro Ultra Slim 4K/60 HDMI 2.0 Extender over HDBase™ - 230 ft. & PoH
- Ultra Slim 230ft. (70m) HDMI extender over HDBaseT w/ PoH
- Extend up to 70m for 4K/60 video w/ 4:4:4 Chroma
- HDR (high dynamic range) & wider color gamut support
- Supports Ultra HD 4K@60Hz resolutions &
- Video resolutions from 1080p/60@48bit
- 18 Gbps bandwidth
- Bi-directional PoH (power over HDBaseT)
- HDCP 2.2 and EDID compliant
- CEC Pass-thru
- IR input/output - embedded over CATx extension
- Dolby TrueHD & DTS Master Audio ready
- Supports uncompressed audio - LPCM
- Bi-directional RS-232 & IR control
- Ultra Slim enclosure w/ separate mounting ears
- One locking power supply included
Why not buy this KanexPro Ultra Slim 4K/60 HDMI 2.0 Extender over HDBaseT™ - 230 ft. & PoH today?
KanexPro Ultra Slim 4K/60 HDMI 2.0 Extender over HDBaseT™ - 230 ft. & PoH
EXT-70SL18G Tx & Rx:- Input Signal: 1xHDMI, 1xIR,1xRS-232 (on each unit)
- Input Connector: 1 x HDMI, 1 x 3.5 mm mini-jack, 1 x RJ-45 (each unit)
- Video Signal: HDMI 2.0a
- Audio: Digital audio transmitted through HDMI audio
- Output Signal: 1 RJ-45,1 IR 1 HDMI, 1 IR
- Output Connector: RJ-45,3.5mm mini-jack HDMI female,3.5mm mini-jack
- Video signal: HDMI 2.0 & HDCP 2.2 Compliance
- Transmission Mode: HDBaseT Technology
- Transmission Distance: 230ft. (1080p), 131ft. (4K/60)
- General:
- Resolution Range:
- From 800x600 ~ 1920x1200, 4K/24,30,60Hz
- Gain: 0dB ~ 10dB@100MHz
- Differential Phase Error: 10 @ 135MHz_100M
- SNR: >70dB@ 100MHz-100M
- Bandwidth: 18 Gbps
- Return Loss: <-30dB@5KHz
- THD: <0.005%@1KHz
- Min. ~Max. Level <0.3V ~ 1.45Vp-p
- Impedance: 75Ω
- Temperature: -20 ~ +60 C
- Humidity: 10% ~ 90%
- Power Supply: 100VAC ~ 240VAC, 50/60Hz
- Power Consumption: 6.5W
- Unit Dimension: W: 4.5" x H 0.47" x D 3.3"
- Net Weight: 1.05 lbs. (480g) for the set ( Tx & Rx)
HDTV Supply includes a 3 Year Limited Warranty on all Kanex Pro products. The warranty states that (a) its products (the will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the Product will be free from defects in materials & workmanship under normal use & service for a period of 3 years. In order to get a warranty replacement for a defective item, HDTV Supplys and Kanex Pros Support Team will verify the product is eligible for warranty. An RMA number will then be issued. Shipped replacements will be in like new conditions, tested and all components included.
HDTV Supply also sells a 5 Year Extended U.S. Warranty for this Long-Runner HDMI 100M Extender. Please go to Extended Warranties or see the above Options to purchase it.
