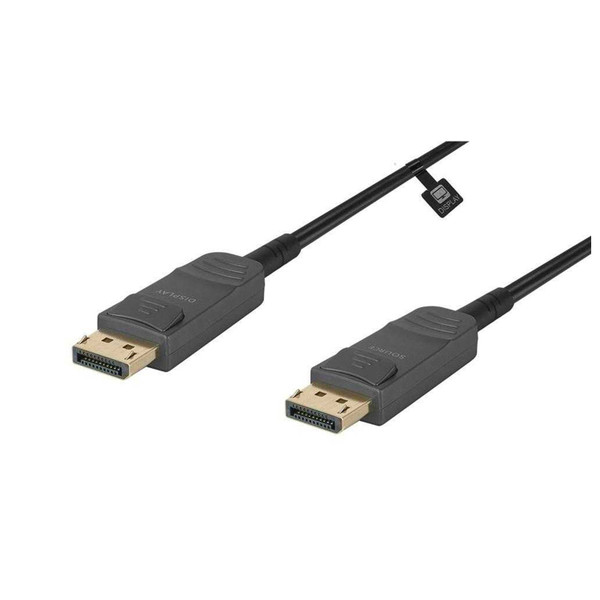

KanexPro CBL-DP14AOC30M Active Fiber DisplayPort 1.4 Cable - 100 Foot

KanexPro

Call for availability

Part Number:
CBL-DP14AOC30M
UPC:
813982022201
Availability:
Usually ships the same business day
1:
Supports both Single Stream Transport
2:
Supports High Dynamic Range (HDR) video
3:
Supports DisplayPort Dual-Mode
4:
No Signal Loss
5:
Free Shipping & Free 3-Year KanexPro Warranty
KanexPro CBL-DP14AOC30M Active Fiber High Speed DisplayPort 1.4 Cable - 100 Foot

KanexPro CBL-DP14AOC30M Active Fiber High Speed DisplayPort 1.4 Cable - 100 Foot is an ideal cable for connecting a high-resolution DisplayPort source to a high-resolution display. Not limited to short two to three-meter lengths active fiber cables can transmit perfect signals up to 50 meters (164ft). It fully supports the DisplayPort 1.3 specification, which provides for up to 32.4 Gbit/s bandwidth, as well as some of the features from the DisplayPort 1.4 specification, such as High Dynamic Range (HDR) video. It supports video resolutions up to 4K@120Hz, 5K@60Hz, and 8K@60Hz with 24-bit RGB color. It is backwards compatible with all previous DisplayPort versions and requires no external power source.

Next generation active optical DP cables designed for next generation 8K HDR content, the KanexPro active fiber DP cable delivers uncompressed full bandwidth overall transmission bandwidth to 32.4 Gbit/s with the new HBR3 mode featuring 8.1 Gbit/s per lane up to 50m/164ft using the latest transmission technology. KanexPro AOC DP1.4 cables support additional DP features like Multi-Stream Transport (MST), Dolby Vision and AMD Freesync™ 2.0 modes. The 32.4 Gbit/s of bandwidth means that these cables are guaranteed to work with all modern 8K monitors. AOC DP Cables should be your only choice for all your high-performance display needs.

Fiber Optic Cables are the future of audio video distribution technology because they are immune to external interference caused by electrical and radio devices. Interference is the main cause for poor performance with signals. By using high performance optical transceivers in each connector, the electrical signal is converted to a light signal that can reach up to 164ft with 0% loss of signal quality. The KanexPro AOC fibers are constructed by a high-quality military grade polymer that is more durable than glass based fiber allowing for integrators and installers to use these cables in the same manner that they would a traditional copper cable. Backed by KanexPro 3 Year warranty, rest assured that this cable will provide years of flawless 8K performance.

KanexPro CBL-DP14AOC30M Active Fiber High Speed DisplayPort 1.4 Cable - 100 Foot Features:

  • No external Power required
  • Plug and Play
  • HDCP Support
  • EDID Support
  • No Signal Loss
  • Supports both Single Stream Transport (SST) and Multi-Stream Transport (MST) modes
  • Compatible with AMD® FreeSync™ 2.0 technology
  • Supports Dolby Vision™ video technology
  • Supports High Dynamic Range (HDR) video
  • Active cable is compatible with passive video adapters
  • Compliant with the HDMI® 2.0 and DVI™ specifications
  • Supports video resolutions up to 8K@30Hz, including 5K@60Hz and 4K@120Hz
  • Supports DisplayPort Dual-Mode (DP++)

Why not buy this KanexPro CBL-DP14AOC30M Active Fiber High Speed DisplayPort 1.4 Cable - 100 Foot today?

KanexPro CBL-DP14AOC30M Active Fiber High Speed DisplayPort 1.4 Cable - 100 Foot Specifications:

  • Standards Compliance: DisplayPort 1.4 / HBR3, HDCP 1.4 / 2.2; Fully Supports bi-directional EDID and HDCP communication
  • Connector Type: DisplayPort Type Male
  • DP version: 1.4
  • Bandwidth: HBR3 (High Bit Rate 3) (32.4 Gbit/s) 8.10 Gbit/s bandwidth per lane (810 MHz link symbol rate)
  • Color Depth: HDR10 | Dolby Vision | 8K UHD/60hz 24 bit/px RGB color | 4K HDR @120hz: 10bit BT .2020
  • HBR3: Supported
  • Multi-Stream Transport (MST): Supported
  • Single-Stream Transport (SST): Supported
  • Connector Dimensions: 42mm x 19.8mm x 11.05mm
  • Cable diameter: 5.0mm
  • Bend Radius (Dynamic/Static):80mm/40mm
  • Tensile Strength (Long term/Short term):100N/200N
  • Crush Resistance (Long term/Short term):200N/400N
  • Operating and Storage Temp:-40 -70˚C
  • Aux Channel:Supports Bidirectional Communications for EDID,,HDCP, Link Training
  • Cable OD: 4.6mm
  • Cable Length: 30M (98ft) 30,000mm +/- 200mm
  • Cable Construction: PVC Jacket, Aluminum Connector
  • Optical Technology:4x Discrete Optical Channels,10GHz,850nm
  • Optical Transmitter: Tx Module :4X850nm Multi-Mode VCSELS
  • Optical Receiver:RX Module 4X GaAs Pin Photo Diodes/Hybrid Cable 4X Fiber and 8X Copper Wire
  • Power Supply: Passive 5V DC 1A | 4.5v~5.5v VCC (No external Power needed)
  • Max Power Consumption:250mW
  • Safety and Emission: CE | FCC | RoHS
