Intelix DIGI-USB2-4P USB 2.0 High Speed & Performance Extension System

Intelix

Intelix DIGI-USB2-4P USB 2.0 High Speed & Performance Extension System
Price: $839.42
Today's Price: $755.48
Part Number:
DIGI-USB2-4P
UPC:
601446001639
Availability:
Usually ships the same business day
1:
USB 2.0 High Speed High Performance Extension System
2:
4 Port USB hub on RX
3:
Free Shipping & Free 2-Year Intelix Warranty
4:
Free Lifetime Telephone, CHAT, TEXT, FAX & Email Tech Support
Make a Fair Offer
Ask an Expert

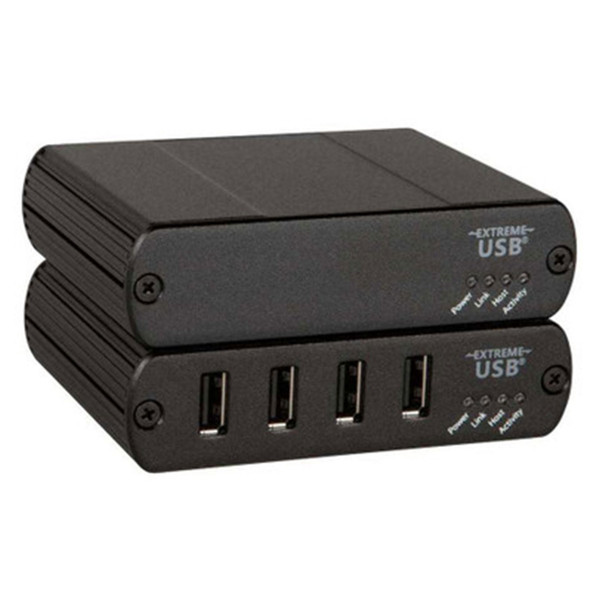

Intelix DIGI-USB2-4P USB 2.0 High Speed High Performance Extension System w/ 4 Port USB hub on RX

Intelix DIGI-USB2-4P USB 2.0 High Speed High Performance Extension System w/ 4 Port USB hub on RX extends computer USB 1.1 and USB 2.0 signals up to 100m (330 ft) over twisted pair cabling to four remote devices.

The DIGI-USB2-4P utilizes inexpensive twisted pair cabling and has a throughput of up to 480Mbps. The DIGI-USB2-4P is perfect for keyboard and mouse extension, remote data ports, up to 4 USB hubs, security applications and interactive white board applications.

Intelix DIGI-USB2-4P USB 2.0 High Speed High Performance Extension System w/ 4 Port USB hub on RX Features:

  • Extends USB2.0 High-Speed (480 Mbps) up to 100 m (330 ft)
  • Powered at the client device
  • Four port client side supplies 500mA to USB devices
  • Uses any Cat5e/6/6A twisted pair cabling
  • Can also be used to extend USB 1.1 signals
  • Transparent USB; Plug and Play (no software drivers needed)
  • Compatible with all major operating systems
Applications
  • Extending high-bandwidth USB devices, such as HD webcams
  • Plenum routing of USB signals

Why not buy this Intelix DIGI-USB2-4P USB 2.0 High Speed High Performance Extension System w/ 4 Port USB hub on RX today?

Intelix DIGI-USB2-4P USB 2.0 High Speed High Performance Extension System w/ 4 Port USB hub on RX

  • Host Input/Output Connections
    • USB Input: One (1) USB Type B Receptacle
    • Link Output: One (1) 8P8C Connector (RJ45 style)
    • 5V DC Power: One (1) Barrel (5.5 mm OD; 2.6 mm ID)
  • Client Input/Output Connections
    • USB Outputs (500 mA max current): Four (1) USB Type A Receptacles
    • Link Input: One (1) 8P8C Connector (RJ45 style)
    • 5V DC Power: One (1) Barrel (5.5 mm OD; 2.6 mm ID)
  • USB Performance
    • Maximum Distance: 100 m (328 ft) over Category 5e or greater cable
    • USB Device Support
      • High-speed devices (USB 2.0) - up to 480 Mbps
      • Full-speed devices (USB 2.0 & 1.1) - up to 12 Mbps
      • Low-speed devices (USB 2.0 & 1.1) - up to 1.5 Mbps
    • USB Hub Support: Any single chain can include up to 4 USB hubs plus one DIGI-USB2-4P.
    • USB Host Support: xHCI (USB 3.0) at USB 2.0 speed, EHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
    • Maximum USB Devices Supported: Up to 15 USB devices or 4 USB hubs with 11 USB devices.
  • Chassis and Environmental
    • Enclosure Material: Anodized Aluminum
    • Enclosure Dimensions (H x W x D): 26 mm x 100 mm x 76 mm (1.02 in x 3.94 in x 2.99 in)
    • Shipping Weight: 0.9 kg (2.0 lbs)
    • Operating Temperature: 0˚ to +48˚ C (+32˚ to +120˚ F)
    • Operating Humidity: 10% to 90%, Non-condensing
    • Storage Temperature: -20˚ to +70˚ C (+14˚ to +158˚ F)
    • Storage Humidity: 10% to 85%, Non-condensing
  • Power and Regulatory
    • Power Supply Input: 100V-240VAC / 50-60 Hz / 0.6A
    • Power Supply Output: 5VDC / 3.0A
    • Power Consumption: 15 watts (max)
    • ESD Protection: ±15 kV
    • Product Regulatory: FCC, CE, IC, RoHS
    • Power Supply Regulatory: UL, CUL, CE, PSE, GS, RoHS
  • Other
    • Warranty: 2 years
    • Diagnostic Indicators (Host Side): Power, Host, Link, Activity
    • Diagnostic Indicators (Client Side): Power, Host, Link, Activity, USB Port Status
    • Included Accessories: Wall Mount Power Supply, USB Type A to USB Type B cable, Installation Guide
