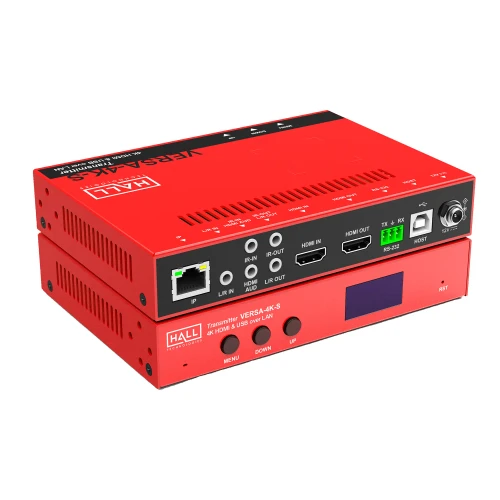

This Hall Technologies HT-VERSA-4K-S 4K HDMI & USB over LAN is a complete AV over IP solution, which can extend 4K video with one frame latency, USB 2.0, keyboard, mouse, IR, RS-232, and analog audio over a simple Gigabit Ethernet Network.
Hall Technologies HT-VERSA-4K-S 4K HDMI & USB over LAN Features:
- Extend and switch multiple 4K HDMI video and USB on a simple gigabit LAN
- Can be used directly (without LAN) for point-to-point HDMI/DVI video, USB 2.0, Audio, IR, and
- RS232 extension on Cat6 cable
- Low latency video and audio (<30ms)
- Video rotation and flipping (horizontal and vertical)
- User configurable video-wall processor
- Extends signals up to 120m (400ft)
- HDMI video loop output on the sender
- Extracted HDMI audio in stereo analog format on both sender and receiver
- 4 USB ports on the Receiver, 2 for keyboard and mouse plus 2 general purpose USB 2.0 ports
- PoE powered
- USB Device Class Filtering
- CEC, IR, and RS-232 Serial over IP for controlHall Technologies December 19, 2023 Page 5 of 51
- Automatic KVM switching (when more than one receiver is routed to one source)
- Telnet and integrated Web UI control
- Front panel character LCD for configuration of IP parameters and status indication
- Receivers include small IR remote controller for switching channels
- Senders accept max resolution of 4K@30Hz 4:4:4 on its input and loop output
- Receivers output a max resolution of 4K@30Hz 4:4:4
- HDCP2.2 and 1.4 compliant
