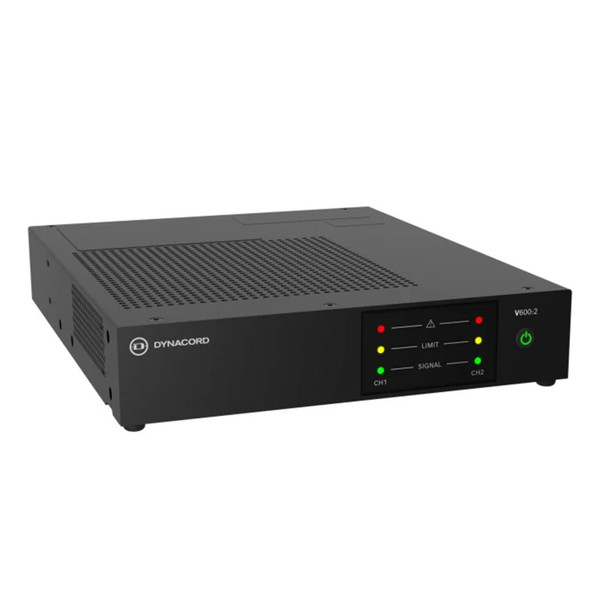

This Dynacord V600-2-US 2-Channel 600W PowerTANK Amplifier with APD designed for small to mid-sized fixed installations in educational facilities, hospitality venues, retail areas, and houses of worship.
This two-channel amplifier delivers 600 watts of power, ensuring optimal performance when higher sound pressure levels are needed.
Integrators can easily customize their projects by combining V Series models, tailoring solutions to specific requirements. The V600:2 shares premium features with the V600:4, offering exceptional installation flexibility, power efficiency, and reliability.
Experience Dynacord's cutting-edge technologies, including powerTANK, Variable Load Drive (VLD), ecoRAIL, and dualCOOL, for versatile power usage, reduced consumption, and silent operation.
With a compact design and versatile mounting options, the V600:2 is a lightweight amplifier that maximizes space utilization and delivers superior performance.
Dynacord V600-2-US Applications:
- Bars and restaurants
- Retail outlets
- Education
- Houses of worship
- Museums and galleries
- Transport hubs
- Conference centers
Dynacord V600-2-US Includes:
- Dynacord V600:2 Two-Channel 600W Power Amplifier for Commercial Installations (1 RU, 1/2-Rack)
- IEC Power Cord
- 5-Pin Euroblock Remote Connector
- 6-Pin Euroblock Audio Input Connector
- 4-Pin Euroblock Speaker Output Connector
- 4 x Rubber Feet
- 2 x Short Rack Ear
- Long Rack Ear
- Connection Plate
- Limited 3-Year Manufacturer Warranty
Dynacord V600-2-US 2-Channel 600W PowerTANK Amplifier with APD Features:
- 2-channel amplifier, with a total powerTANK capacity of 600 W
- Variable Load Drive (VLD) providing the same power into 4 ?, 8 ?, 70 V or 100 V
- ecoRAIL and APD deliver significant reduction in power consumption
- dualCOOL convection cooling with additional intelligent fan in case of extreme thermal conditions
- Comprehensive protection package for reliable operation
Why not buy this Dynacord V600-2-US 2-Channel 600W PowerTANK Amplifier with APD from HDTV Supply today?
Dynacord V600-2-US 2-Channel 600W PowerTANK Amplifier with APD Specifications:
- Number of Channels: 2
- Amplifier Power Rating
- 4 Ohms / 8 Ohms / 70 V / 100 V:
- 2x 300 W per Channel
- 4 Ohms / 70 V:
- 1x 500 W One Channel Driven (1 kHz)
- 8 Ohms / 100 V:
- 600 W One Channel Driven (1 kHz)
- 4 Ohms / 8 Ohms / 70 V / 100 V:
- Amplifier Class: Class-D
- Load Impedance / Voltage
- 4 / 8 Ohms per Channel
- 70 V (16.7 Ohms)
- 100 V (33.3 Ohms)
- Protections: DC Fault, DC Offset, Output Limiter, Overcurrent, Overvoltage, Power Supply, RF, RMS, Short Circuit, Thermal, Ultrasonic, Undervoltage
- Frequency Response: 20 Hz to 20 kHz -3 dB
- Input Impedance: 20 Kilohms (Balanced)
- Max Gain:
- 33 dB (at 2 Ohms)
- 36 dB (at 4 Ohms)
- 39.2 dB (at 70 V)
- 42.2 dB (at 100 V)
- Max Input Level: 18 dBu
- SNR
- > 100 dB (at 4 Ohms)
- > 102 dB (at 8 Ohms)
- > 101 dB (at 70 V)
- > 103 dB
- THD+N: < 0.1% (1/8th Rated Output Power, 1 kHz)
- Crosstalk
- < -70 dB (4 Ohm)
- < -75 dB (8 Ohm)
- < -90 dB (70 V)
- < -95 dB (100 V)
- DSP: Yes
- Crossover: Yes
- Limiting: Peak (per Channel)
- Analog Audio I/O
- 1x Block 6-Pin Balanced Line Input
- 1x Block 5-Pin Control/Remote Input
- 1x Block 4-Pin Speaker Output
- Digital I/O: 1x RJ45 Amplink Input (I/O, Network)
- Network I/O: No
- Mobile App Compatible: No
- Wireless: No
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz
- AC Power Connector: IEC 15 A / NEMA 5-15
- Power Consumption
- 115 W (1/8 Power)
- 12 W (Idle)
- 1 W (Standby)
- Display & Indicators
- 2x Green LED (Signal)
- 2x Yellow LED (Limit)
- 2x Red LED (Fault)
- Rackmount Size: 1 RU (1/2-Rack)
- Cooling
- 1x Convection
- 1x Fan (Variable Speed)
- Operating Temperature: 23 to 113°F / -5 to 45°C
- Dimensions: 8.6 x 1.7 x 10.6" / 21.8 x 4.3 x 26.9 cm
- Weight: 4.6 lb / 2.1 kg
