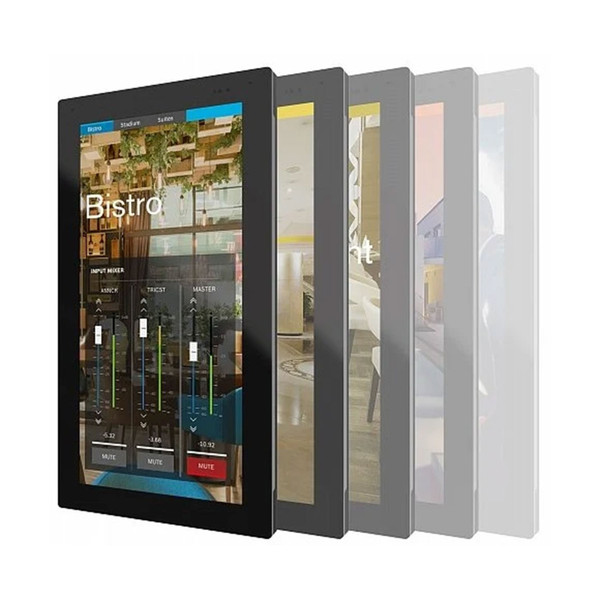

This Dynacord TPC-1 5.7 Inch Touch Panel Controller facilitates system integration by enabling the customization of applications to govern MXE series audio matrices. Boasting a high-definition 5.7” display, its ultra-thin in-wall profile and universal mounting capability for EU, UK, or US mounting boxes with Power over Ethernet (PoE) facilitate straightforward installation, even within limited wall depths. Enhanced security is ensured through theft protection via a secured mounting plate. Moreover, the TPC-1 interface is fully configurable within SONICUE sound system software, affording the inclusion of custom images and text in local languages within control elements.
Dynacord TPC-1 5.7 Inch Touch Panel Controller Features:
- ustomized user control apps with SONICUE
- High Definition (720 x 1440) IPS 5.7" display with 450 nits of brightness
- PoE, compatible with US single gang, EU and UK wall boxes
- Only 25.4 mm (1 inch) installation depth in wall
Why not buy this Dynacord TPC-1 5.7 Inch Touch Panel Controller from HDTV Supply today?
Dynacord TPC-1 5.7 Inch Touch Panel Controller Specifications:
- Display: 5.7" IPS panel with a resolution of 720 x 1440 pixels and support for 16.7 million colors
- Brightness: Capable of reaching 450 nits for clear visibility in various lighting conditions
- Processor: Powered by an NXP iMX8 processor, featuring a 64-bit Armv8-A architecture with quad symmetric-core ARM Cortex-A53 processors clocked at 1.8 GHz
- Proximity Sensor: Offers a maximum range of 120 cm and a capture range of 25° horizontally and vertically
- Connectivity: Supports IEEE1588 Gigabit Ethernet for wired network connection and IEEE PoE 802.3af compliant Power over Ethernet via the LAN port
- Aux Power: Accepts +24 V DC input through a 5.5/2.5/12 mm connector (power supply not included)
- Power Consumption: Consumes approximately 6 W under typical usage conditions, with a maximum of 8 W
- USB: Equipped with a rear-mounted USB 2.0 port for service purposes
- Installation: Designed for wall-mounting and compatible with US NEMA single gang, EU 65mm (IEC/EN 60670), and UK BS 4662 standards
- Recommended Cabling: Utilizes CAT6 cabling for optimal performance
- Operating Conditions: Operates within temperatures ranging from 0°C to +45°C, with humidity levels of up to 95%
- Dimensions: Measures 85.5 x 150.3 x 12.2 / 20.5 mm (W x H x D inside/outside wall)
