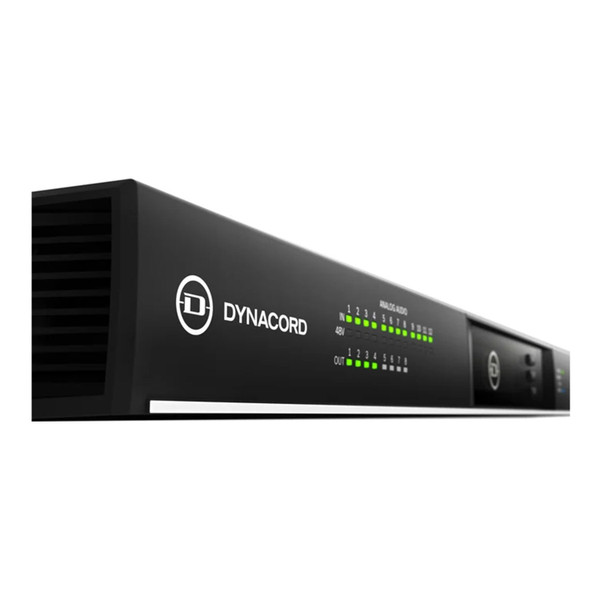

This Dynacord MXE5-64 64x64 DSP Matrix Mix Engine series, exemplifying cutting-edge capabilities. This high-performance audio matrix boasts a 24 x 24 crosspoint configuration, seamlessly integrating routing and mixing functionalities into its design. Equipped with 12 analog mic/line inputs and eight line outputs, the MXE5 accommodates versatile audio connectivity requirements. Furthermore, acting as a centralized communications hub, it efficiently manages IP-based peripherals, while providing comprehensive supervision of system-wide commands. Experience the pinnacle of audio control and management with the MXE5, setting new standards in the industry.
Dynacord MXE5-64 64x64 DSP Matrix Mix Engine Features:
- DSP matrix mixer focused on performance audio
- Combining matrix control with mixing functionality
- 24x24 matrix with Dante/OCA
- Controlled via SONICUE
- 12 mic/line inputs, 8 line outputs
Why not buy this Dynacord MXE5-64 64x64 DSP Matrix Mix Engine from HDTV Supply today?
Dynacord MXE5-64 64x64 DSP Matrix Mix Engine Specifications:
- Matrix size: 24 x 24
- Sampling rate: 48 kHz /96 kHz
- Dante in/out: 24/24
- Analog inputs: 12 mic/line
- Analog outputs: 8
- Max. input/output level: + 22 dBu
- Signal to noise ratio (inputs/outputs): > 118 dB
- Signal processing: 32/40-bit floating point
- THD+N: < 0.002 %
- Latency (analog in/out, 48 kHz / 96 kHz): < 0.45 ms / < 0.22 ms
- Control ports: 8 GPIO
- Dimensions (w x h x d): 483 x 43.5 x 471 mm (19", 1 RU)
- Weight: 6.0 kg (13.2 lbs)
