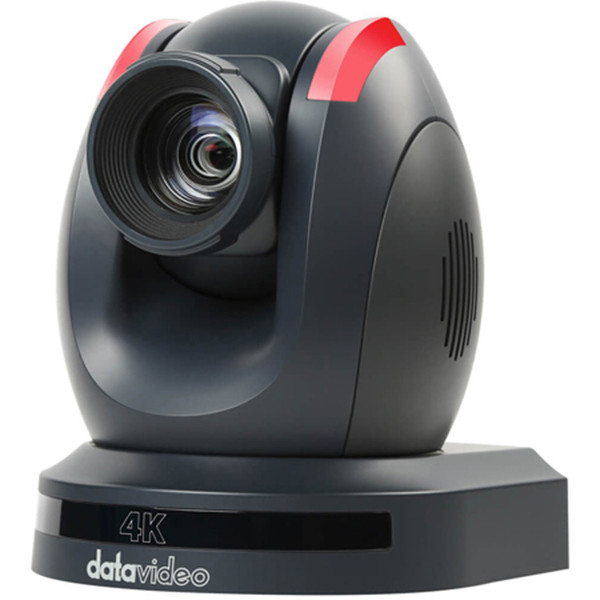

Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking

Datavideo

Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking
$2,199.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
PTC-305
Availability:
In Stock
1:
Smart PTZ Speed Adaptation
2:
Simply Enable Auto Tracking
3:
Supports Resolution up to 2160p 50/60.
4:
20x Optical Zoom
5:
Free Shipping
6:
Datavideo Factory Warranty
Make a Fair Offer
Ask an Expert

This Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking- Supports Dual Streaming Output and PoE.

Datavideo is introducing the 4K50/60p Auto tracking PTZ camera, the PTC-305 can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Datavideo also provides extended models such as PTC-305T 4K HDBaseT and PTC-305NDI to meet the needs of different workflows.

The included RMC-1AT PTZ Controller allows you to manually zoom and focus, along with activating the tracking function with a single button, and storing current pan/tilt/zoom settings to a preset. Up to 4 presets can be saved, which allow for quick access to settings you have saved for specific camera shots.

Custom Auto Object Tracking: If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking Features:

  • Connect your PTC-305 to multiple devices in your workflow for flexibility. All the outputs are active at the same time.
  • Simply enable auto tracking with your IR remote control
  • Smart PTZ Speed Adaptation
  • Supports resolution up to 2160p 50/60.
  • 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.
  • Green and red lights tally to show the preview and program status for broadcast applications
  • The PTC-305 supports PoE for easy installation

Why not buy this Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking today?

Datavideo PTC-305 20x 4K PTZ Camera with Auto Tracking Specifications:

  • Video format/Resolution
    - 2160p60/59.94/50/30/29.97/25
    - 1080p60/59.94/50/30/29.97/25
    - 1080i60/59.94/50
    - 720p60/59.94/50
    - 2160p60/59.94/50 YUV 4:2:2
  • Image Sensor: 1/1.8" CMOS
  • Effective Pixels (approx.): 8.51Mega Pixels
  • S/N Ratio: ≥55dB
  • Min. Illumination: 0.5 Lux @ (F1.8, AGC ON)
  • Electronic Shutter: 1/30s ~ 1/10000s
  • Zoom Ratio: 20x Optical, 16x Digital Zoom
  • Iris Control: Auto / Manual
  • Digital Noise Reductions: 3D
  • On-Screen Display (OSD): English/Simplified Chinese/Traditional Chinese
  • White Balance: Auto, Indoor, Outdoor, OnePush, Manual, VAR
  • AGC / Gain Control: Yes
  • Mirror / Flip Image: Yes
  • Focus Mode: Auto/Manual
  • Panning / Tilting Range:
    - Pan: 300°
    - Tilt: +130° to -15°
  • Panning / Tilting Speed:
    - Pan: 0.876°/s~43°/s
    - Tilt: 0.693°/s ~21.32°/s
  • Preset: 255
  • Focal Length: 20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
  • Field of View (Horizontal, Wide): 60°
  • Image Compensation: Back light compensation
  • Video Output
    - HDMI 2.0 x1
    - 3G-SDI x1
    - 10/100/1000M RJ45 (PoE) x1
  • Audio Input: 3.5 mm x1 (mic in/line in) switch from Web UI
  • Tally LED: Yes
  • Control Protocol:
    - Pelco-D, Pelco-P,
    - VISCA, VISCA over IP,
    - DVIP
  • Remote Control Interface:
    - IR
    - Web UI
    - RS-422
    - DVIP
  • Video Compression Format: H.264/H.265/MJPEG
  • Audio Compression Format: AAC
  • Audio Bitrate: 96Kbps, 128Kbps
  • Streaming Protocols: TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
  • First Stream Supported Resolution:
    - 3840x2160
    - 1920x1080
    - 1280x720
    - 1024x576
    - 960x540
    - 640x480
    - 640x360
  • Second Stream Supported Resolution:
    - 720x480
    - 640x360
    - 480x270
    - 320x240
  • Video Bitrate: 32Kbps ~ 50Mbps (Single Stream)
  • Video Bitrate Mode: VBR, CBR
  • Encoding Frame Rate:
    - 50Hz: 1-50fps
    - 60Hz: 1-60fps
  • POE: IEEE 802.3at
  • F/W Update: Via Web UI or USB 2.0
  • IR Control: Yes
  • Camera Control Unit: RMC-180 series/RMC-300 series/PTZ View Assist APP
  • Tripod Mount: 1/4-20 UNC
  • Color: Dark Blue
  • Dimension (LxWxH): 6.8 x 8.6 x 7.4"
  • Weight: 5.7 lbs
  • Operating Temp. Range: 32~104 °F
  • Power: DC 12V 21W

Item Includes:

  • 1x PTC-305 PTZ Camera
  • 1x RMC-1AT IR remote controller
  • 1x Ceiling mount bracket-A
  • 1x Ceiling mount bracket -B
  • 6x Ceiling mount bracket screw M3*4mm
  • 1x DC 12V Power Adapter
  • 1x Safety Cable
