Datavideo HBT-15 4K HDBaseT Transmitter Box

Datavideo

$649.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
HBT-15
UPC:
603134691320
Availability:
In Stock
1:
HDMI Deep Color Supports
2:
Supports Default EDID
3:
Heavy Duty Design
4:
HDCP Compliant
5:
Free Shipping
6:
Datavideo Factory Warranty
ADD OPTIONS:

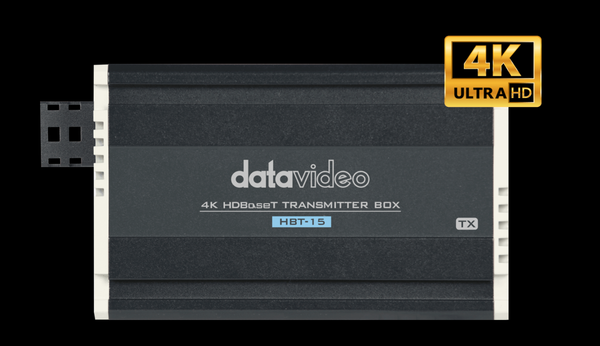

This Datavideo HBT-15 4K HDBaseT Transmitter Box is an HDBaseT Transmitter designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.

Datavideo HBT-15 4K HDBaseT Transmitter Box Features:

  • Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.: The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.
  • HDMI Deep Color supports better color depths: HDMI Deep Color supports better color depths. To giving your display device a great image.
  • Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter.: HBT-15 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE+), easy to install for various applications. Support 12V power out for remotely located equipment.
  • HDCP compliant: Can perfectly display the video source with HDCP in high clarity with zero interruption.
  • Support DVIP, RS-422, and RS-232 control protocols.: HBT-15 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.
  • Supports default EDID and EDID learning from the display: EDID pass-through passes signal between the source and display
  • Dolby TrueHD & DTS Master audio support: Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
  • Aluminum Alloy and Heavy Duty Design: Super sturdy and durable. HBT-15 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

Why not buy this Datavideo HBT-15 4K HDBaseT Transmitter Box today?

Datavideo HBT-15 4K HDBaseT Transmitter Box Specifications:

  • Model Number: HBT-15
  • Video/Audio Input: HDMI 2.0 x1
  • Video/Audio Output: HDBaseT RJ-45 x1
  • Supported Video Format
    • 2160p: 60/59.94/50/30/29.97/25
    • 1080p: 60/59.94/50/30/29.97/25
    • 1080i: 60/59.94/50
    • 720p: 60/59.94/50
    • 480i: 59.94
    • 576i: 50
  • Video Process
    • 4K2K60 4:4:4 8bits
    • 4K2K60 4:2:0 10bits
  • Video bandwidth: Single-link 600MHz [18Gbps]
  • DVIP: RJ-45 x1(output)
  • RS-422/ RS-232: RJ-45 x1
  • Power: DC Out: 12V 30W
  • PoE Output: ---
  • HDBaseT Distance: 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
  • HDMI compliance: HDMI 2.0
  • HDCP compliance: HDCP 2.2/1.4 (Bypass)
  • Audio support: Surround sound (up to 7.1ch)
  • Dimension (LxWxH): 157 x 85 x 46mm
  • Weight: 474 g
  • Operating Temp. Range: 0~40 °C
  • What's in the Box
    • 1 x HBT-15 main unit
    • 1 x DC to DC cable
