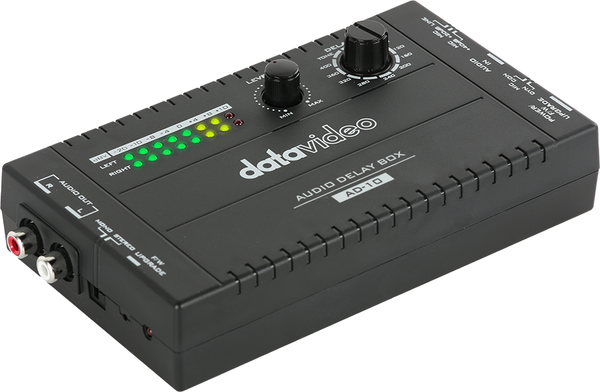

This Datavideo AD-10 Audio Delay Box - B-Stock & Open Box is a low cost and easy-to-use audio delay box which is designed for achieving audio and video synchronization. The AD-10 provides a 3.5mm audio input interface which is suitable for the output of the popular MP3 format music which is used by smartphones. The Datavideo AD-10 provides great compatibilities including switchable +40dB/-20dB selection for switching between the condenser microphone and dynamic microphone and the audio gain control function.
AD-10’s ruggedized design allows you to install it easily. Moreover, it can be powered by a standard 5V USB power bank
Datavideo AD-10 Audio Delay Box - B-Stock & Open Box Features:
- Audio & Video Synchronization
- Easy-to-use design: Easy to control with clear LED indicators. Compact and lightweight, suitable for integration into any workflow.
- Delay up to 400ms: Up to 400ms of sound delay range with easy to adjust knob design, synchronize video and sound with precision.
- Power by external USB power supply: Convenient power supply available anywhere, make your work process smoother.
- Full range of input options to meet a variety of needs: Switchable for Microphone input or Audio Line input, and switchable Condenser / Dynamic Microphone. Meet a wide range of microphone input requirements.
- Compatible outputs: Switchable mono/stereo output. Stereo RCA output connectors for wide compatibility.
- Tutorial videos created specifically for the AD-10
- Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
- Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the AD-10 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
Why not buy this Datavideo AD-10 Audio Delay Box - B-Stock & Open Box today?
Datavideo AD-10 Audio Delay Box - B-Stock & Open Box Specifications:
- Model Number: AD-10
- Audio Input
- 1 x 3.5mm Jack Socket
- ( Tip: Mic/Line (Left)?Ring: Mic/Line (Right)?Sleeve: GND)
- 16K ohms, MAX Line input Level: +10dBV
- Audio Output: 2 x unbalanced stereo audio, RCA sockets 600 ohms, MAX=+10dBV
- Audio Indicator: 2 Rows (Left / Right)
- Audio Delay: Up to 400ms
- Audio Sample Rates: 48 KHz
- Special Feature
- Switchable for Microphone input or Audio Line input
- Switchable Condenser / Dynamic Microphone
- Stereo RCA output connectors for wide compatibility
- Chassis: Compact and lightweight design
- Power: USB Type C (5V/1A)
- Dimension (LxWxH): 151 x 88.5 x 30.7 mm
- Weight: 0.18 kg
- Operating Temp. Range: 0~40 °C
- What's in the Box
- 1 x AD-10 product
- 1 x RCA to 3.5mm Cable
