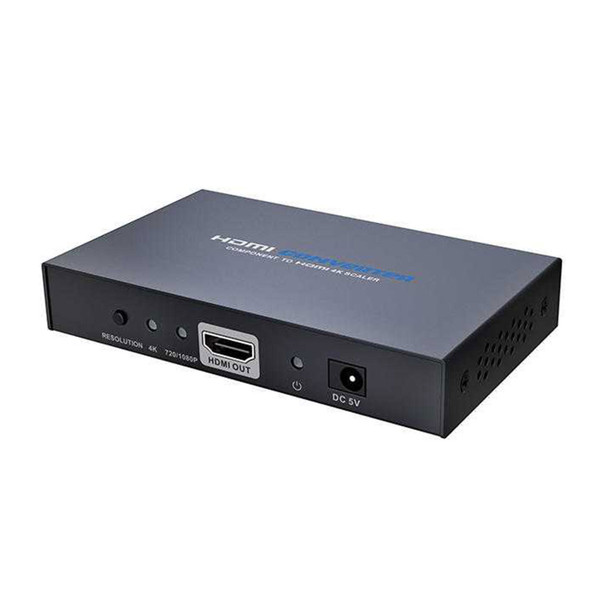

Component To 4K HDMI Scaler
This Component To 4K HDMI Scaler is a Component video (YPbPr) to HDMI converter box that converts HD component video YPbPr and R/L Audio to an HDMI output and upscales to 720p, 1080p and 4Kx2K@60Hz. Our Component To 4K HDMI Scaler enables the connection of devices with an YPbPr output, e.g. PSP, PS2, Wii, Xbox, STB, DVD player, projector, etc. to 4K offering you perfect view when you watch movies or play games.
Component To 4K HDMI Scaler
- Up-scales component video to HDMI 720p , 1080p or 4Kx2K@60Hz
- Supports component input: 480i/p (60Hz), 576i/p (50Hz), 720p (50/60Hz), 1080i/p (50/60Hz)
- Supports highest HDMI output is 4Kx2K@60Hz
- Full compatibility supports all YpbPr inputs, and is compatible with all HDMI displays.
- HDMI output compliant to HDMI2.0
- Metal housing, stable and durable
- Plug and play
Why not buy this Component To 4K HDMI Scaler today?
Component To 4K HDMI Scaler
| Items | Specification |
| Voltage/Current | DC5V/2A |
| Power consumption | ＜5W |
| HDMI compliance | HDMI2.0 |
| YPbPr resolution supported |
480i(NTSC), 480p(NTSC)，576i(PAL)，
576p(PAL) 720@50Hz, 720@60Hz,
1080i@50Hz, 1080i@60Hz,
1080p@50Hz, 1080p@60Hz
|
| HDMI output resolution supported |
720p@50/60Hz, 1080p@50/60Hz,
3840x2160p@30/60Hz
|
| Audio formats supported | L/R stereo audio |
| Maximum transfer rate | 10.2Gbps |
| Input and output TMDS signal | 0.5～1.5Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Output cable length supported | ≤10m |
| Electrostatic protection of the whole machine |
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
|
| Working temperature | 0～60℃ |
| Storage temperature | -20～70℃ |
| Humidity (no condensation) | 10～90% |
| Dimension | 117.99(W) x 77.35(D) x20.21(H)mm |
| Material | Iron alloy material |
| Finishing | Grit blast |
| Color | Black |
| Weight | 240g |
| Mean time between failures(MTBF) | >30000 Hours |
