Build Your Own Secure 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switch.
These HDTV Supply WolfPack Modular Secure 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switchers are integrated HDMI video and HDMI audio modular HDMI matrix routers.
These Secure Modular HDMI Matrix Switchers have been designed for installations where security is at its most highest need.

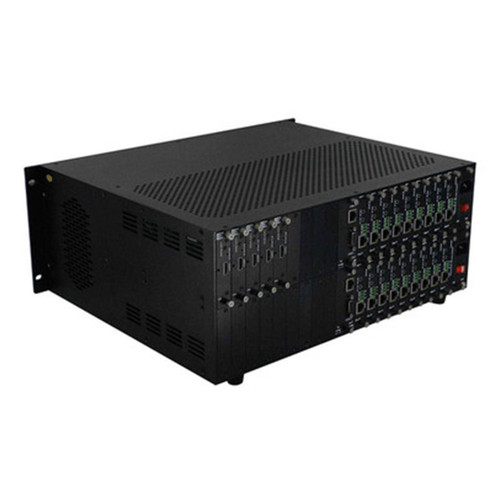

The core of the Secure 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switch consists of a Modular Matrix chassis and its highly configurable backplane that supports 4K at 60 Hz compliant 4K 60 Hz input and 4K 60 Hz single port output cards.
These 4K 60 Hz 4:4:4 18-GBPS HDR HDMI Matrix Switchers are secure because:
- They can be only operated from the front display
- There is no WIFI
- There is no RS232 port
- There are no front panel buttons
- There are no Apps
- There are no CAT6 cabling
- There is no IR Remote Control nor IR Window
- One HDMI connector on each single port board
- Backup Power Supplies on 16x16, 18x18 & 36x36
- The cabinet assembly uses secure screws
The heart of the Secure Modular HDMI Matrix Routers are the WolfPack secure chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix supports hot-plugs and you can change the cards while the equipment is still working.
By having 1-port HDMI slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
Reasons that set our WolfPack™ 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch apart from others:
- 4K 60 Hz HDMI 2.0 cards for the best picture
- Uses a 4K 60 Hz Card cage chassis
- Custom made to your needs
- Secure Control via only the front panel
- 2-Year WolfPack Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other Secure in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Built-in Video Wall Processor
- ISO 9001 manufactured
WolfPack™ Secure 4K 60 4:4:4 18-GBPS HDR 4x8 HDMI Matrix Switch Configuration Example:
- 1 - 4K 60 Hz 9-card in and 9-card out card cage
- 4 - 1-port 4K 60 Hz HDMI input cards = 4 HDMI inputs
- 8 - 1-port 4K 60 Hz HDMI output cards = 8 HDMI outputs
- 5 additional 4K 60 Hz input slots for future card expansion to 9-inputs
- One additional 4K 60 Hz output slot for future card expansion to 9-outputs
- Front panel control only
These Secure Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
These Secure Modular HDMI Matrix Routers Feature:
- 9x9, 16x16, 18x18 & 36x36 chassis size
- Cable distance: ~12 feet AWG24 4K 60 Hz HDMI 2.0 high speed cables
- Output HDMI cable distance: ~30 feet AWG24 4K 60 Hz HDMI 2.0 high speed cables
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel LCD display for switching ins to outs
- Support resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Rack-mountable
For HDMI distances greater than 30 feet we recommend our Secure 4K 60 Hz Hybrid Fiber/Copper AOC HDMI cables. See the end of the page to buy them.
EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not design a Secure 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch?
Separate Embedded Audio In and De-embedded Audio Out: These 4K 60 Hz Matrix Switchers with a Video Wall Processor allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector and then de-embedding the audio on the HDMI output cards 3.5mm audio.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each HDMI card has a 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
Supports EDID Management: Ensure that even the most difficult display can receive audio and video with eight programmable memory presets loadable to any source connected to the matrix.
Secure Modular HDMI Matrix Routers Specs:
- Resolution support: 4K/60, 4K/30, 1080p/60, 1080p/30, 1080i, 720p, 480p, but cannot support 480i
- Supported Input & Outputs Signals:
- HDMI Port: Up to 4K at 60 Hz
- Control: Front buttons
- Power Supply: 100 to 240VAC, 50-60Hz
- Power Consumption: 50W to 70W
- Operating Temperature: -10C to 50C
- Storage Temperature: -25C to 55C
Why not design a Secure 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch?
Specifications For All Modular Matrices Single Port Cards
Comparison Spreadsheet For All Modular Matrices Single Port Cards
Video Wall Setup User Manual
9x9 User Manual
9x9 Modular Matrix Switcher Brochure
Why not buy this Secure 4K 60 4:4:4 18-GBPS HDR HDMI Matrix Switch today?
Q: How do I customize the output card resolution?
A: Below is the DIP switch settings for the 4K60 HDMI2.0 output cards.
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
Mix-n-Match combinations:
Non-HDCP source to a HDCP compliant TV
HDCP source to a non-HDCP compliant TV
Q: What is your test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
