You can Build your own WolfPack Modular Fiber Matrix Switcher using up to 11-Chassis sizes allowing multiple Fiber devices to be switched to multiple Fiber outputs, or the same Fiber input to be routed to all Fiber outputs, or any combination as well as other optional technologies, like HDMI. Same for HDMI.

The Fiber cards support both multimode and single mode fiber cables. When using multimode fiber cables, the distance will be up to 300m or 980 feet, and when using a single mode fiber cable the distance can be up to 2km or 1.25 miles.

These WolfPack Seamless Fiber Matrix Switchers provide advanced features like sophisticated image switching capabilities to ensure a seamless switching experience. The term "seamless" refers to the switcher's ability to switch between video sources without any visible interruption or delay in the output signal. This is particularly important in live events and broadcasting where a smooth and continuous video signal is essential.

Also, when using HDMI these Fiber matrix switchers support Video Wall processing with the number of video walls, and sizes, only limited by the number of outputs that you have. It also has an optional HDMI Multi-viewer Quad-View Card that can show 4-videos, and more, on only one large picture display, like a large TV or projector. TVs are not included.

All our WolfPack Fiber seamless switching modular switchers switch in about 80ms and we use our WolfPack frame freeze technology to avoid a black & blue screen between the signals switching. Latency is only 20ms.

The core of the Modular Fiber HDMI Matrix Switcher consists of multiple Modular Matrix chassis and its highly configurable backplane that supports 4-port Fiber slide-in input cards and 4-port Fiber slide-in output cards. You can control the matrix switch via its IOS or Android Apps, front panel control, IR remote control when purchased with front panel buttons, a WEB GUI control, or the dual RS-232 & TCPIP serial ports.

Reasons that set our WolfPack Fiber Modular Matrix Switchers apart from others:

DIP Switch resolution scaling on each card

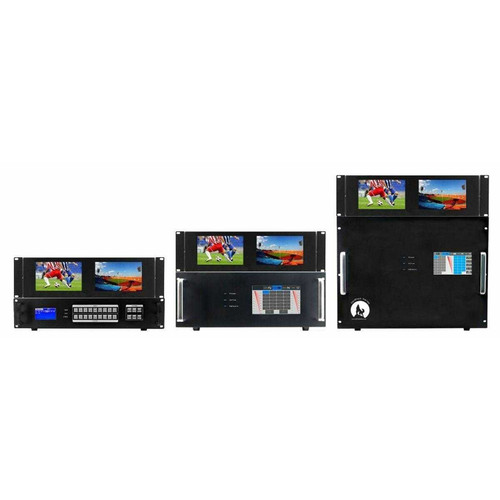

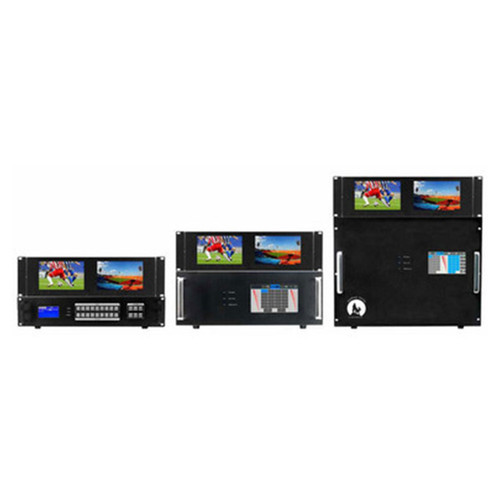

11-Chassis sizes from 8x8 to 160x160 to BYO
Uses LC Fiber IN & LC Fiber OUT Cards
Optional 4K 30 Hz Fiber to HDMI & HDMI to Fibers Adapters
HDMI supports 4K 30 Hz Video Wall Processing
Optional 4K 30 Hz HDMI Mult-viewer
iPad App, Android App, WEB GUI & PC control
HDMI 2.0 Compliant
HDCP 2.2 Compliant
40-Preset SAVE & RECALL scenes

DIP Switch scaling on each card
Fast 80ms Switching & only 20ms Latency
Resolution Scaling on all HDMI Cards
Optional 4K 30 Hz HDMI Multi-Viewer Out
Optional 4K 30 Hz HDBaseT HDMI to CAT6
Optional 4K 30 Hz HDMI In & Out cards
40-Preset Scenes can be Saved & Recalled
3-Year WolfPackCare Warranty
Lifetime Telephone, CHAT, TEXT, & Email Support
19" Rack-mountable
Optional Crestron, RTI, Elan & Control4 Drivers

Configuration Example of a WolfPack 40x80 Fiber Matrix Switch

1 - 80 card in and 80 out card chassis
10 - Fiber input cards = 40 - Fiber inputs
20 - Fiber output cards = 80 - Fiber outputs

By having 4-port slide in Fiber cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent in for repair.

These WolfPack Fiber Matrix Switchers Feature:

BYO up to 160-Fiber Inputs & Outputs
Optional 4-Port 4K 30 Hz Fiber & HDMI Input Cards
Optional 4-Port 4K 30 Hz Fiber & HDMI Output Cards
Advanced Scaling on optional HDMI cards
Front-panel LCD display for status feedback
Front-panel push buttons for local switching

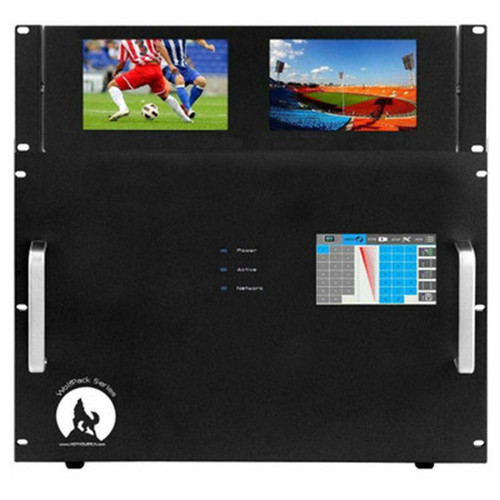

Front-panel Color Touch Screen for Control
IP controlled via built-in web server and LAN
Dual TCPIP & RS-232 for 3rd party control
Fast Seamless (80ms) Switching
Only 20-ms latency
Control via Apps, PC, Front Panel & Web GUI
Rack-mountable

The matrix supports hot plugs meaning you can change the cards while the equipment is still working.

Why not design a Fiber Modular Matrix Switcher today?

These Modular Fiber Matrix Switchers support up to Fiber Inputs and up to 160-Fiber outputs and are systems used in professional video production and broadcasting environments. They are designed to route and switch fiber video signals in real-time, allowing multiple video sources to be connected to multiple destinations.

These Seamless Fiber Matrix Switchers provide advanced features like sophisticated image switching capabilities to ensure a seamless switching experience. The term "seamless" refers to the switcher's ability to switch between video sources without any visible interruption or delay in the output signal. This is particularly important in live events and broadcasting where a smooth and continuous video signal is essential.

Not only is this product an Fiber matrix switch it is designed to support multiple video wall configurations using a tablet to create the video walls. The number of video walls, and quantity, is only limited by the number of Fiber outputs that you have. Also, the Fiber output cards include an internal DIP switch for resolution adjustment for times when the auto-adoption cannot detect an unusual display or output device video resolution.

Features of these Fiber Matrix Switchers are:

In Stock: ~5 Day Ship after Build & Test
Supports up to 160-Fiber Ins & 160-Fiber Outs
Control via WEB GUI, iOS & Android Apps, & PC
Front 7" Color Display or Button control
Supports Video Wall Processing when used with HDMI
Optional 4K 30 Hz HDMI Mult-viewer
Supports up to a 4K @ 30Hz Resolution at 4:2:0

Created in an Universal Chassis
Uses 4-Port Fiber In & Out Cards
DIP Switch resolution scaling on each HDMI card
TCPIP & RS-232 for 3rd party control
Fast 80ms Seamless Switching
Custom control via RS232 and TCPIP
40-Preset SAVE & RECALL scenes on WEB GUI
No Latency (80ms)

8x8 to 160x160 Chassis Sizes
Optional 4K 30 Hz HDMI In & Out cards
Optional 4K 30 Hz HDMI via CAT6 (HDBaseT) to 175'
3-Year Advance Replace Warranty
Free Lifetime Tech Support
Free USA Shipping
Free International Shipping w/Wire Transfer
Save 5% buying with a Check or Wire Transfer

These different Modular Fiber Matrix Switchers are made up of a switcher chassis with multiple input slots & multiple output slots for 4-port Fiber input & 4-port Fiber output cards.

By having 4-port slide in cards the matrix is exceptionally reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or get another from us. The complete matrix doesn't have to be sent in for repair.

Don't see the size that you need? Just call 833-WOLFPACK (833-965-3722) right now for an instant quote.

These WolfPack Fiber Matrix Switchers are in a small chassis allowing any Fiber input to be switched to any Fiber output, or the same Fiber input to be switched to any or all Fiber outputs, or any Fiber combination. We believe that we have set the bar for the number of ways you can control the inputs and outputs.
