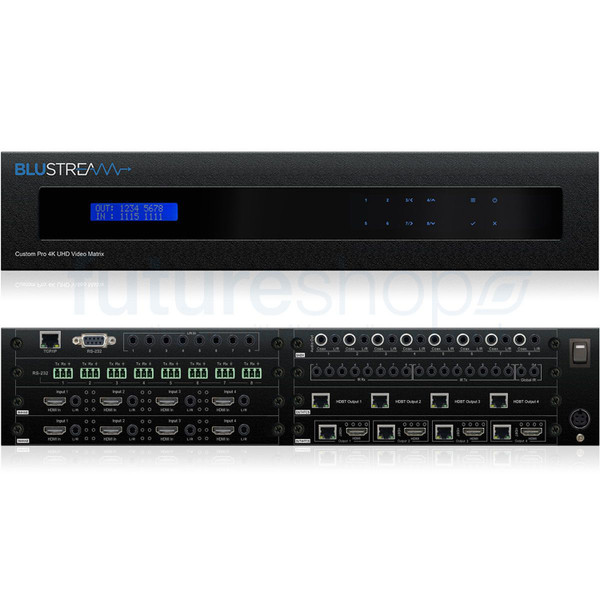

This Blustream PRO88HBT70CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) - Supports 4K HDR, IP Control, PoC, 2-Way IR, 4 x Simultaneous HDMI Outputs and Audio Breakout with Volume Control.
Our 70m Custom Pro 8x8 HDBaseT™ CSC Matrix offers unprecedented 4K HDR performance for the custom installation market.
The PRO88HBT70CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 70m over a single CAT cable (4K HDR up to 40m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
The Matrix also provides advanced features including 8 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.
Blustream PRO88HBT70CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) Features:
- HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:
- - 1080p 60Hz (for screens that do not support 4K)
- - 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
- Supports 4K with HDR
- Extends HDMI 1080p video up to 70m
- 4 x Simultaneous HDMI Outputs
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- 8 x simultaneous coaxial digital and variable line-level analogue L/R audio outputs
- Analogue audio input can be embedded onto any HDMI input
- Web interface module for control and configuration of matrix
- Supports bi-directional IR
- Supplied with Blustream IR receivers and emitters
- Control via front panel, IR, RS-232 and TCP/IP
- Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
- 3rd Party drivers available for major control brands
- 2U Design for 19" rack mount integration - Mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
- To be used with the HEX70CS-RX receivers
Why not buy this Blustream PRO88HBT70CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) today?
Blustream PRO88HBT70CS Custom Pro 8x8 HDBaseT CSC Matrix (4K 60Hz 4:4:4 up to 40m) Specifications:
- Video Input Connectors: 8 x HDMI Type A, 19-pin, female
- Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
- Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
- TCP/IP Control: RJ45, female
- Ethernet / Network: RJ45, female
- IR Input Ports: 9 x 3.5mm stereo jack
- RS-232 Serial Port: DB-9, female
- Rack Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
- Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
- Shipping Weight: 5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 24V/8A DC
