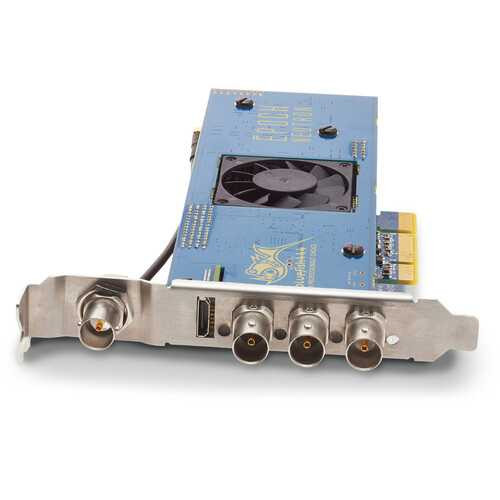

This Bluefish444 EB3007B Epoch | Neutron Dedicated Reference Connector features three bidirectional HD/SD-SDI connectors supporting up to DCI 2K/60 resolution video input and output with extremely low latency of sub on field or frame. The card also has an HDMI monitoring output and a reference BNC connector. Additionally, one of the three main SDI connectors can be set up as a reference input instead of a video signal I/O.
The Epoch | Neutron is an internal full-height, half-length 4-lane PCIe card compatible with Windows, Mac, and Linux systems, but it can also be installed in optional Thunderbolt enclosures from Sonnet and other brands for alternate multimedia workflow options, including integration with a second PCIe card, such as a PCIe-based SSD drive or RAID controller. Included with the card is a free download of the Bluefish444 IngeSTore acquisition software and Bluefish444 cross-platform SDK
Other features of the card include embedded audio support, high-performance bypass relays, 4 x 4 x 33-bit color matrix, 12-bit video signal path, hardware downstream keyer, full-duplex DMA data transfer, and 256MB of onboard memory
The Epoch | Neutron can be used for broadcast graphics, post-production, liveevents, and digital intermediate, mobile production, QC, video over IP, and streaming workflows among many others.
Bluefish444 EB3007B Epoch | Neutron Dedicated Reference Connector Features:
- Full-height, half-length 4-lane PCIe, Gen 1 card (8- and 16-lane compatible)
- Three independent and simultaneous bidirectional HD/SD-SDI BNC connectors
- Up to DCI 2K/60 resolution playout or capture via dual-link HD-SDI
- Simultaneous HDMI monitoring output
- Dedicated BNC reference input; plus, one of the three bidirectional BNC connectors can be set to function as a reference input instead of passing a standard video signal
- Compatible with Mac, Windows, and Linux
- High-performance bypass relays
- 4 x 4 x 33-bit color matrix
- 12-bit video signal path
- Audio sample-rate converters
- MR2 master routing resource
- Input stream integrity management
- Full-duplex DMA data transfer
- 256MB onboard memory
- Hardware downstream keyer
- 16 channels of embedded SDI I/O audio
- Dolby Digital pass-through SDI
Why not buy this Bluefish444 EB3007B Epoch | Neutron Dedicated Reference Connector today?
Bluefish444 EB3007B Epoch | Neutron Dedicated Reference Connector Specifications:
- Host Connection: PCIe x4 (PCIe 1.0)
- Shared Input/Output Connectors: 3 x BNC (HD-SDI / SD-SDI)
- Input Video Format
- SDI
- 2048 x 1556 at 14.98/15 fps
- DCI 2K 23.98/24/25/29.97/30/48/50/59.94/60 fps
- DCI 2KPsF 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080p 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080PsF 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080i 25/29.97/30 fps
- 720p 23.98/24/25/29.97/30/50/59.94/60 fps
- NTSC 29.97 fps
- PAL 25 fps
- SDI
- Embedded Audio Input: SDI: 16-Channel
- Output Video Format
- SDI
- 2048 x 1556 at 14.98/15 fps
- DCI 2K 23.98/24/25/29.97/30/48/50/59.94/60 fps
- DCI 2KPsF 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080p 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080PsF 23.98/24/25/29.97/30/48/50/59.94/60 fps
- 1080i 25/29.97/30 fps
- 720p 23.98/24/25/29.97/30/50/59.94/60 fps
- NTSC 29.97 fps
- PAL (768 x 576) 25 fps
- HDMI
- 1080p
- SDI
- Embedded Audio Output: SDI: 16-Channel, HDMI
- Video Standard Compliance: SMPTE 292M/295M/372M
- Latency: SDI Input/Output: 1 Frame
- Other I/O: 1 x HDMI 1.4A Output, 1 x BNC Reference Input
- OS Compatibility
- macOS 10.8 or Later
- Windows 7 or Later
- Windows Server 2008
- Windows Server 2012 R2
- CentOS
- Ubuntu
- *As of July, 2020: Check with manufacturer for the most up-to-date compatibility
- Certifications: C-Tick, CE, FCC, ISO9001, RoHS, *as per Manufacturer
- Dimensions: 7.28 x 4.72" / 185 x 120 mm
- Weight: 7.05 oz / 200 g
- Package Weight: 0.7 lb
- Box Dimensions (LxWxH): 9.3 x 5.5 x 2.5"
