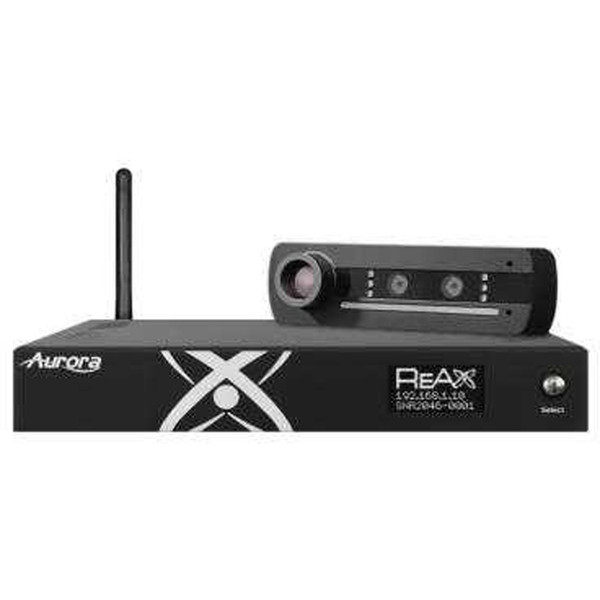

This Aurora TAV-BX1-B Infrared Temperature Sensing Solution - Black is an all-in-one Infrared Temperature Sensing Solution - Black comprised of the RXM-1 ReAX Media Server and the TAV-A80 Thermal Camera Unit. It is the ultimate way to turn any display into a full featured temperature sensor and much more. It is a perfect solution for creating custom kiosks or advanced digital signage with analytics. To ensure that people entering a location are not presenting a high temperature, the TAV-BX1-B will provide alerts when a person is running a high temperature within 1 second from up to 5 feet (1.5 meters) away. The system uses advanced algorithm for detecting and calculating heat signatures even the tear ducts (Canthus) at close distances, achieving more accurate readings with IR technology. The highly accurate 80??4 sensor measures with a tolerance of +/- 0.3 degrees Celsius (+/- 0.5 degrees Fahrenheit).
NOTE: This product has been discontinued. See the above SIMILAR Tab for equivalent products or, if not there, call us at 833-WOLFPACK (833-965-3722) right now to discuss your needs.
Mask detection has become an important part of screening. TAVIS uses advanced AI algorithms to quickly identify if a person is wearing masking
TAVIS + ReAX™ offers state-of-the-art digital signage capabilities, security features and control systems integration. Beyond the thermal detection features, TAVIS + ReAX can be used in conjunction with QR codes to check in employees, confirm identification with gestures, connect to a secure database, provide on-screen instructions and much more. With ReAX, you can import your own HTML, CSS, or JavaScript code to design TAVIS's interface. Even with no coding experience, ReAX Core Studio allows the average user to create his or her desired interface using the studio's intuitive tools.
To compliment the TAVIS hardware, Aurora has developed a Server software TAVIS Central which allows full monitoring of all TAVIS units at a facility. Reporting, alerts, statistics, firmware updating, remote monitoring, and even recording capabilities are available.
Why a Aurora TAV-BX1-B Infrared Temperature Sensing Solution - Black?
- Provides the first layer of screening protection
- More hygienic with touchless infrared technology
- Multiple devices can be monitored by a single user
Aurora TAV-BX1-B Infrared Temperature Sensing Solution - Black Features:
- Scan Distance: Up to 5' (1.5m)
- 2 Person Forehead Scanning
- Scan speed: Less than 1 Second
- Canthus (Tear Duct) Eye Detection (Highest Possible Accuracy from 12"away)
- Mask Detection
- Eye Wear Detection
- Anti-Spoofing (Prevents Objects Being Utilized to Simulate Pass or Fail)
- Future Firmware Upgrades & Options
- Facial Recognition (Localized or Centralized)
- Age, Gender, & Ethnicity Prediction
- QR Code Detection
- Gesture Responses
- Streaming Video for Security
- Email Alerts
- RGB Color Indicator Bar
- Portrait or Landscape Mounting
- Available in Black or White
- Made in the USA
- Embedded ReAX Control for Automation & Integration with Third-Party Devices and Access Systems
- Customizable Web Pages (Mobile too)
Note: All Aurora Multimedia items are noncancelable and nonreturnable.
Why not buy this Aurora TAV-BX1-B Infrared Temperature Sensing Solution - Black today?
Aurora TAV-BX1-B Infrared Temperature Sensing Solution - Black Specifications:
| Hardware & OS | |
|---|---|
| CPU | RK3399 Cortex Six core Processor 1.8GHz/1.4GHz |
| RAM | 4GB DDR3 |
| ROM | 32GB eMMC Flash |
| OS | Android 9 or Linux Debian 9 (Coming Q1) |
| Video/Audio | |
| Video Output | HDMI 2.0 output |
| Audio Output | Line out |
| Communication | |
| Bluetooth | EDR 4.0 |
| WiFi | 802.11 b/g/n 2.4GHz and 5GHz |
| Ethernet | 10/100/1000 LAN |
| General Information | |
| I/O | 12v DC Input, USB Type C, 3.5mm Audio Line L/R Out, HDMI 2.0 Output, SD Card Slot, SIM Card Slot (4G Option), USB 3.0, USB 2.0, 1G LAN PoE |
| AV Capablllty | Front Facing Binocular Camera 2 MP fixed focus |
| Included in Box | RXM-1, TAV-A80, Power Adapter, Power Cable, WIFI Antenna, Mounting Ears |
| Consumption | 11W |
| Power Input | 12V 2A or PoE |
| Operating Environment - Temperature | Operating: 32°F to 100'F (0°C to 40°C); Storage: -4° F to 122°F (-20'C to 50°C) |
| Operating Environment - Humidity | Operating: 20%-80%; Storage· 10%-95% |
| Certification | CE, FCC, ROHS |
| Language | Multi language |
| VESA | VESA 75 |
| Warranty | 3 Years |
| Infrared Temperature Sensor | |
| Size | 125mm x 36.44mm x 27.20mm (39.67mm deep including lens) |
| Temperature check distance | 0.3m-1.5m |
| Temperature check range | 30°C to 45°C |
| Temperature check error | ±0.5°F@1 Hz |
| Physical | |
| RXM-1 Slze (WxHxD) | 177mm x 104.2mm x 27.3mm (6.97” x 4.1” x 1.07”) |
| Product Weight | --- |
