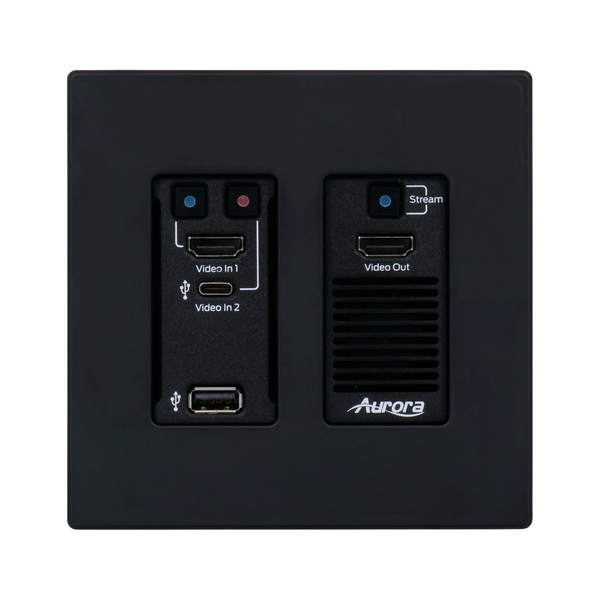

This Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content.
Power consumption is important as the VPX-TC1-WP2-Pro uses as little as 8 watts. It does this with in a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. The 2 video inputs can be selected from the buttons, auto sense, or IP command. The audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. Together with the VPX-TC1 Pro box version, the possibilities are nearly limitless and scalable.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-WP2-Pro.
Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black Features:
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- Zero Frame Latency (1.78ms)
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby
- TrueHD DTS HD Master Audio, Dolby ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Seamless Switching, Video Wall and Image Rotation
- EPG & Channel Mapping
- MJPEG Preview up to 720p30
- 1 HDMI Inputs, 1 USB-C Video/Data
- USB 2.0 Type A
- Line In/Out on Rear for Add-on Audio Wall Plates
- 1G LAN PoE
- RS-232 Serial Port
- Integrated Web Server for Configuration
- Dante® 2/8 Ch Audio License Options & Dante Controller
- Low Power at 8 Watts
- 2 Gang Mounting Available in White and Black
Why not buy this Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black today?
Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black Specifications:
- Technical
- Compression: Mimix™ 13:1
- Latency: 0 Frames (1.78ms)
- Video Inputs: 1 HDMI 2.0b, 1 USB-C
- Encryption: HDCP 2.3 & AES 256
- Audio Analog: Stereo Line In/Out (3.5mm TRS)
- 1G Ethernet: RJ-45 and SFP
- LAN: RJ-45 10/100/1000M PoE
- Video Bandwidth: 600MHz
- Video Support: Up to 4K2K 4:4:4 @ 60Hz
- Audio Support: Up to 12 Channels
- Video Stream Bandwidth: 93Mbps – 850Mbps (4K60 4:4:4) Packet Size Under 1600, 1Gbps with USB and Audio
- USB Bandwidth: 200Mbps (Camera), 170Mbps (HID/Mass Storage Devices)
- RS-232: Up to 115k Baud (3.5mm TRS)
- IR: Bi-Directional (3.5mm TRS)
- USB Connector: 1 USB 2.0 Type A & 1 USB 2.0 Type-C
- Options: Dante® 2Ch/8Ch
- Interface: IR or Keyboard via OSD, Web Server
- Mechanical
- Housing: Aluminum Enclosure
- Dimensions (L x W x H): 3.728” x 2.83” (4.331” with tabs) x 1.404”
- Weight: 2.5lbs (1.13g)
- Mounting: 2 Gang Decora Style
- Power Supply: 48v DC (2 Pin Euro) or PoE (LAN)
- Power Consumption: 6.4 Watts, up to 12.9 Watts with USB
- Operation Temperature: 0~40o C [32~104o F]
- Storage Temperature: -20~60o C [-4~140o F]
- Relative Humidity: 20~90% RH [No Condensation]
- Package Contents: VPX-TC1-WP2
Why not buy this Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black today?
Aurora Multimedia VPX-TC1-WP2-Pro-W Spec Sheet
Why not buy this Aurora Multimedia VPX-TC1-WP2-Pro-B 4K60 4:4:4 1Gbps AV over IP Wall Plate Transceiver - Black today?
Due to the specialized nature of our products and the industry we serve, we do not accept returns. We encourage our customers to review their orders carefully before finalizing them. Learn more about returns policy.
