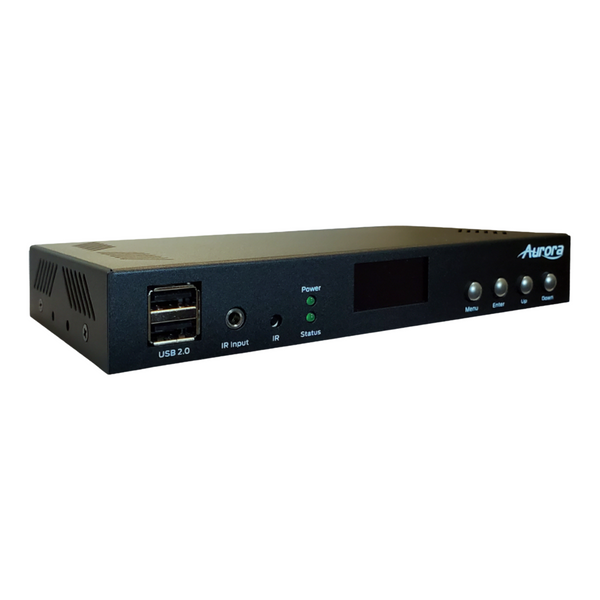

This Aurora Multimedia IPX-TC3A-CF-Pro 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box with 2 HDMI® In, 1 HDMI® Out & Advanced Scaling provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The IPX can be set up as either one to make installation, inventory, and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the IPX is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G fiber or copper port.

Choice is important. That’s why the IPX-TC3A-Pro models include either one or two SFP+ port that can use single or multi-mode fiber – making the IPX-TC3A-Pro the ultimate AV IP product on the market today.

Aurora Multimedia IPX-TC3A-CF-Pro 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box with 2 HDMI® In, 1 HDMI® Out & Advanced Scaling Features:

• Configure as Transmitter (Encoder) or Receiver (Decoder)
• 4K60 4:4:4 Over 10G Fiber or Copper
• Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
• 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
• Available for 10Gbps fiber MMF/SMF or 10Gbps copper networks
• Network Redundant operation
• Secure Content Encryption
• 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
• Video Wall Capability 8x8 (Pro Version)
• Windowing/Multi-viewer up to 32 windows (Pro Version)
• 3ms Scaling (Pro Version)
• Seamless Switching (Pro Version)
• Break-away Switching
• Audio DSP
• SFP+ for Multi/Single Mode Fiber
• Front Keypad with OLED Display
• Wall Plate Versions also available in white or black

Note: All Aurora Multimedia items are noncancelable and nonreturnable.

Why not buy this Aurora Multimedia IPX-TC3A-CF-Pro 3rd Gen 4K 10Gbps AV-over-IP Transceiver Box with 2 HDMI® In, 1 HDMI® Out & Advanced Scaling today?
