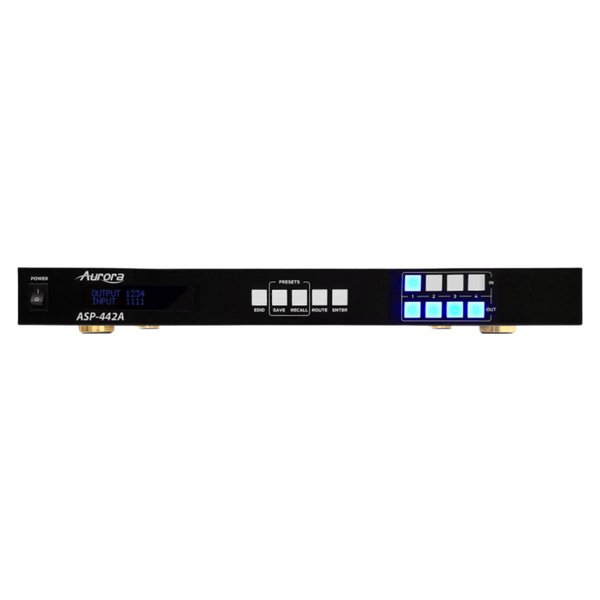

Aurora Multimedia ASP-442A 4x4 HDMI 2.0A Matrix 4K60Hz is an 4x4 4K HDMI Matrix offering the power and flexibility you need at a costeffective price. Route Ultra High Definition video sources and multi-channel digital audio from any of the four (4) HDMI inputs to the any of the four (4) HDMI outputs at the same time. The front keypad and LCD display are designed for easy operation and quick status of. LAN and RS-232 ports have advanced protocols allowing hot plug detection, signal detection, EDID table loading/recalling, presets, and more.
The advanced protocol features make the ASP-442A perfect for commercial applications with auto switching, digital signage with device detection, or residential systems with home automation.
Aurora Multimedia ASP-442A 4x4 HDMI 2.0A Matrix 4K60Hz UHD Features:
- HDMI® 2.0A HDCP 2.2
- Resolutions up to 4K2K @ 60Hz 4:4:4
- HDR High Dynamic Range
- HDMI® 3D Compliant
- HDCP 2.2 Compliant
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI® display to view any HDMI® source at any time
- Supports 7.1 channel digital audio
- Advanced EDID Functions
- Easy installation with rack-mounting
- Front LCD Status Display
Note: All Aurora Multimedia items are noncancelable and nonreturnable.
Why not buy this Aurora Multimedia ASP-442A 4x4 HDMI 2.0A Matrix 4K60Hz UHD today?
Aurora Multimedia ASP-442A 4x4 HDMI 2.0A Matrix 4K60Hz UHD Specifications:
- Technical
- RS-232 Baud Rate: 9600 8N1 DB9 Female (Pins 2-TX, 3-RX, 5-GND), Straight through Cable to PC
- Front Panel: Blue Backlit LCD and Selection Keys
- Bandwidth: 600MHz
- Resolutions: 480i / 480p / 720p / 1080i / 1080p60 8-12 bit color / 3840x2160 @ 30Hz / 4Kx2K @ 30Hz / 4Kx2K @ 60Hz
- HDCP Compliant: 1.4 and 2.2
- HDMI Output Distance: 1080p up to 20m, 4K30Hz up to 10m, 4K60Hz up to 5m Note: Cable quality may impact distance
- HDMI Connector: Type A (19 Pin Female)
- RS-232 Connector: DB-9 Female
- LAN Port: RJ-45 (Telnet Communications)
- Mechanical
- Housing: Aluminum enclosure
- Dimensions [L x W x D]: 7.78" x 17" x 1.7" [197.5 x 430 x 44mm]
- Weight: 5.21lbs (2.36kg}
- Mounting: 1RU Rack Mount 19" x 1.75"
- Power supply: 12v 7.5A DC
- Power consumption: 25Watts
- Operation temperature: 0~40˚C [32~104˚F]
- Storage temperature: -20~60˚C [-4~140˚F]
- Relative humidity: 20~90% RH [no condensation]
