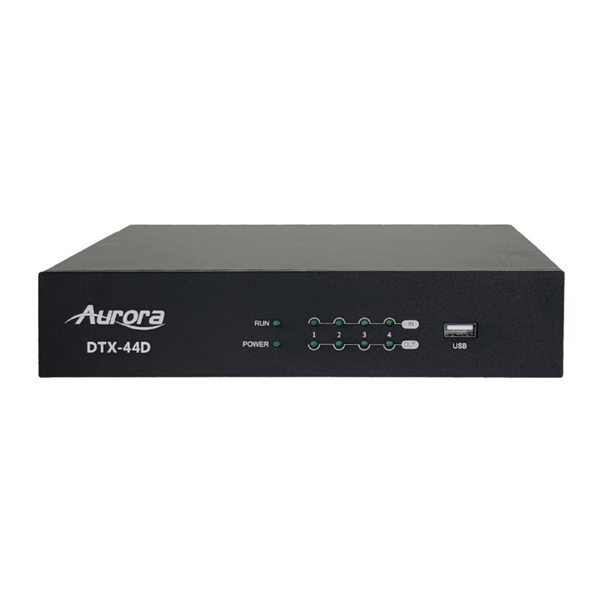

This Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out is a Dante enabled, digital audio DSP. This fully networked and PoE powered DSP, is an ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs. A single network cable handles power, transmission, management, and control, making it easy to transmit and control audio safely, quietly, and conveniently for reliable performance and perfect integration throughout the network.
Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out Features:
- ADI SHARC 21489 processor
- 4 balanced microphone or line level inputs on Terminal Block connectors
- 4 balanced line level outputs on Terminal Block connectors
- 2 Dante audio interfaces on RJ-45 connectors
- Dante audio channels up to 4×4
- Defnable GUI for managing and confgurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
- 16 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DASH software tool for managing all audio operations
- Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
Why not buy this Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out today?
Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out Specifications:
- Audio
- ADSP: ADI SHARC 21489 (×1)
- Audio Format: 24 bits, 48 kHz sampling rates (uncompressed)
- System Latency: < 3 ms
- Analog I/O Channels: 4x4
- Dante I/O Channels: 4x4
- Analog Input Gain: 0, 10, 20, 30, 40, 43 dB
- Analog Input Level: +24 dBu
- Analog Output Level: +24 dBu
- Frequency Response: ±0 2 dB (20 Hz to 20 kHz)
- THD+N: < 0 003% (1 kHz, +4 dBu)
- Common Mode Rejection Ration: 103 dB @ 60Hz
- SNR: 110 dB
- Analog Dynamic Range: 113dB
- Dante Dynamic Range: 113 dB
- Analog Background Noise: -89 dBu (A-weighted)
- Dante Background Noise: -91 dBu (A-weighted)
- Channel Isolation: 108 dB (1 kHz)
- Input Impedance: 20k ohms (Balanced)
- Output Impedance: 100 ohms (Balanced)
- Phantom Power: 48 V
- Interface
- Input Port: 4 Analog Audio (Terminal Block)
- Output Port: 4 Analog Audio (Terminal Block)
- Ethernet Port: 2 Dante Audio (RJ-45) 1 LAN (RJ-45)
- USB Port: 1 USB Audio (Type-A)
- Serial Port: 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block)
- Power
- AC Power: 110 to 240 VAC at 50 or 60 Hz
- AC Adapter: 12 VDC or PoE
- Power Consumption: 10w
- Physical
- Chassis Material: Metal
- Chassis Color: Black
- Chassis Dimensions (H x W x D): 45×241×130 mm
- Chassis Weight: 1.5kg
- Environment
- Operating Temperature: +32 to +104 °F (0 to +40 °C)
- Humidity: 10% to 90% RH (non-condensing)
- Compliance
- Regulatory Compliance: FCC, CCC, CE, RoHS
Why not buy this Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out today?
Why not buy this Aurora DTX-44D 4x4 Dante DSP With 4x4 Analog In & Out today?
Aurora does not accept returns due to the specialized nature of its products. Customers are encouraged to carefully review their orders before completing the purchase. Learn more about returns policy.
