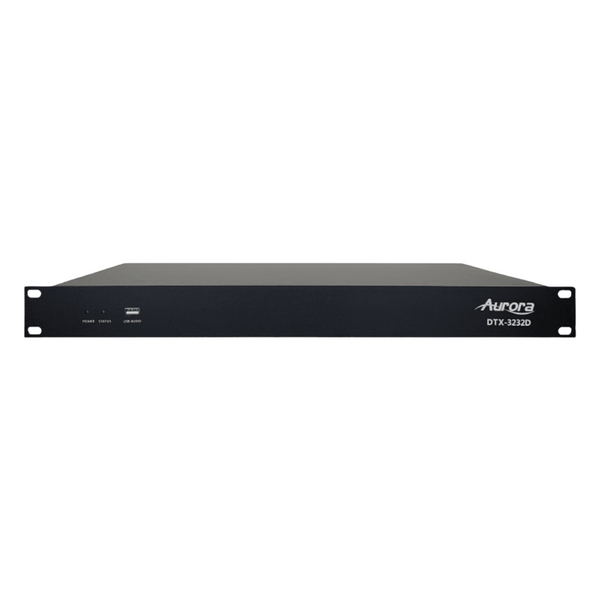

This Aurora DTX-3232D 32x32 All-Digital Dante DSP is a Dante enabled, all digital, audio DSP. This fully networked family of professional audio products is ideal complement to Aurora?? IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs.
Aurora DTX-3232D 32x32 All-Digital Dante DSP Features:
- ADI SHARC 21489 processor
- 2 Dante audio interfaces on RJ-45 connectors
- 8 GPI/O multi-function ports on Terminal Block connectors
- Dante audio channels up to 32×32
- Defnable GUI for managing and confgurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
- 16 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DSP Confgurator software tool for managing all audio operations
- Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
Why not buy this Aurora DTX-3232D 32x32 All-Digital Dante DSP today?
Aurora DTX-3232D 32x32 All-Digital Dante DSP Specifications:
- Audio
- ADSP: ADI SHARC 21489 (×2)
- Audio Format: 24 bits, 48 kHz sampling rates (uncompressed)
- System Latency: < 6 ms
- Analog I/O Channels: N/A
- Dante I/O Channels: 32×32
- Analog Input Gain: N/A
- Analog Input Level: N/A
- Analog Output Level: N/A
- Frequency Response: ±0 2 dB (20 Hz to 20 kHz)
- THD+N: < 0 003% (1 kHz, +4 dBu)
- Common Mode Rejection Ration: 80 dB (60 Hz)
- SNR: 110 dB
- Analog Dynamic Range: N/A
- Dante Dynamic Range: 115 dB
- Analog Background Noise: N/A
- Dante Background Noise: -91 dBu (A-weighted)
- Channel Isolation: 108 dB (1 kHz)
- Input Impedance: 9 4k ohms (Balanced)
- Output Impedance: 102 ohms (Balanced)
- Interface
- Input Port: N/A
- Output Port: N/A
- Ethernet Port: 2 Dante Audio (RJ-45) 1 LAN (RJ-45)
- USB Port: 1 USB Audio (Type-A)
- Serial Port: 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block)
- GPI/O Port: 8 GPI/O (Terminal Block)
- Power
- AC Power: 110 to 240 VAC at 50 or 60 Hz
- AC Adapter: N/A
- Power Consumption: 15 W
- Enclosure
- Chassis Material: Metal
- Chassis Color: Black
- Chassis Dimensions (Hight×Width×Depth): 45×482×260 mm
- Chassis Weight: 3 kg
- Environment
- Operating Temperature: +32 to +104 °F (0 to +40 °C)
- Humidity: 10% to 90% RH (non-condensing)
- Compliance
- Regulatory Compliance: FCC, CCC, CE, RoHS
