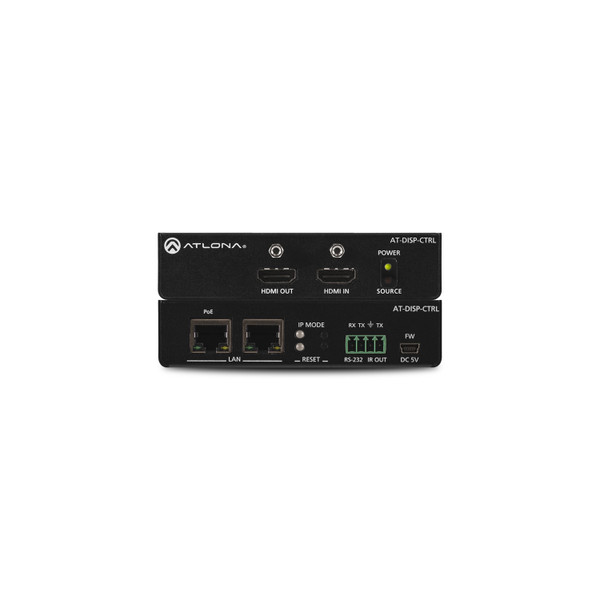

This Atlona AT-DISP-CTRL Display Controller is a compact display controller, designed for small meeting spaces and huddle rooms. The DISP-CTRL detects connection of a source device with an active signal, and then automatically sends a control command to power up a display. Similarly, when the device is disconnected, the DISP-CTRL delivers a command to power down the display. The DISP-CTRL can be configured to deliver pre-stored or user-programmed display control commands through TCP/IP, RS-232, IR, or CEC. Additionally, this controller includes EDID and HDCP management features, and can be powered locally or through Power over Ethernet (PoE). The DISP-CTRL is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI® data rates up to 18 Gbps.

The DISP-CTRL enables simple plug-and-play operation for a presenter – while eliminating the need to rely on a handheld remote control that is often misplaced or non-functional (dead batteries). The DISP-CTRL can be used on its own, or in conjunction with an HDMI switcher such as the JunoX™ 451 (AT-JUNO-451). The AT-IR-CS-TX emitter cable is available for controlling a display through IR. For additional integration convenience, the DISP-CTRL features adjustable standby and lamp cooldown timer modes, TCP/IP and RS-232 control, and remote management with Velocity™ Device Manager. A comprehensive selection of display drivers from the Velocity™ Control System driver database is available for setting IR, RS-232, or IP control commands.

Atlona AT-DISP-CTRL Display Controller Feature:

• Simple, automated display control
  • Automatically changes display power state based on HDMI device connection or disconnection
  • Control signals to display are transmitted via IP, RS-232, IR, or CEC
  • Enables display, volume control, and input selection
  • Avoids the need for a handheld remote control which may be misplaced or non-functional
• Programmable display control modes
  • A display can be powered off after a specified period of inactivity with no video signal detected, or after a device has been disconnected
  • Adjustable lamp cooldown mode available to avoid prematurely powering up a projector after shutdown
• 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling and HDR support
  • Ideal for 4K/UHD and HDR-capable sources and displays
  • Compatible with 4K HDR10 and Dolby® Vision™ @ 60 Hz
  • Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
• HDCP 2.2 compliant
  • Adheres to latest specification for High-bandwidth Digital Content Protection
  • Allows protected content stream to pass between devices
• HDMI input and pass-through ports with locking terminals
  • Ideal for Atlona LinkConnect™ cables with locking HDMI connectors
  • Ensures secure cable connections and reliable image display
• Local or PoE powering
  • Industry standard IEEE 802.3af PoE can be supplied by a network switch or PoE injector
  • USB powering is also available with included power supply
  • PoE allows installation at a table or other location without local AC power
• Multi-channel audio compliant
  • Passes through multi-channel audio formats from the HDMI input
  • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS® Digital Surround™, DTS-HD Master Audio™, and DTS:X®
• EDID management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
• HDCP management
  • Automatically reports HDCP compliance status to the source based on the sink device
  • HDCP compliance can be disengaged through the web GUI or Velocity Device Manager
  • Allows non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
• Intuitive GUI-based configuration using integrated web server
  • Menu-based configuration of device settings, display device driver selection, and programmable control commands
  • Embedded selection of display drivers from the Velocity™ System driver database
• Dual Ethernet ports and integrated network switch
  • Allows connection to a display for IP control, plus LAN or direct web GUI access
  • Built-in network switch simplifies system integration and operation
• Easy configuration with Velocity Device Manager
  • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
  • Manage configuration and firmware updates across facilities, buildings, enterprises, or residences
  • Available as part of Velocity control systems or as free virtual machine software download
• Field-updatable firmware
  • Firmware updates supported via web GUI or Velocity Device Manager
  • USB port available for firmware updates
• Front panel power and signal status LEDs
  • LED indicators provide power and signal status information
  • Supports convenient troubleshooting when network access is not available
• Low-profile enclosure
  • 1.02 inch (26 mm) high design
  • Suitable for installation below tables, in furniture, or behind displays
• Included accessories
  • Installation guide
  • Surface mounting hardware
  • External universal power supply
