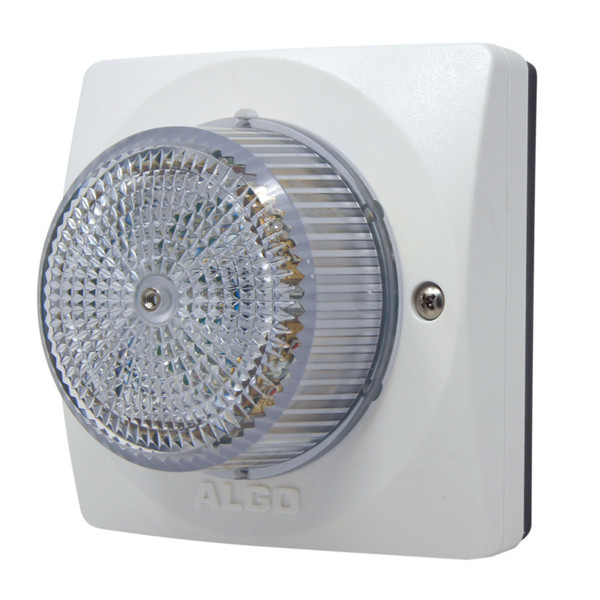

This Algo Communication 8128 IP Visual Alerter is a visual alerting IP endpoint in clear / white for telephone ringing where noise, noise sensitivity or hearing impairment are at issue. This weatherproof IP strobe light is also commonly used for public address (PA) and mass notification applications to visually alert for safety, security and emergency events. Colored strobe light lens covers available.
The 8128 strobe light is a fully compliant 3rd party SIP endpoint. As a result, the 8128 is compatible with most hosted / cloud and premise-based VoIP telephone systems.
Multi-Application SIP Extensions: Multiple SIP registrations are available in this IP strobe light, including Page (50), Emergency Alert (10) and Ring (10) extensions. On Page, the strobe light will auto-answer and flash for the duration of the voice announcements. For Ring and Emergency Alert extensions the strobe light will flash for the duration of the alerting event.
Scale Algo IP Strobe Lights Over Any Size Building or Campus: The 8128 SIP Strobe Light supports multicast send or receive. As a result, many Algo IP strobe lights can be deployed to cover any size building, campus or enterprise. There is no limit to the number of devices part of a multicast, and a minimum of network traffic activity is utilized. Multiple strobe lights in a multicast will flash in a synchronized pattern.
A single registered 8128 can be configured to multicast to any number and mix of Algo IP speakers, paging adapters, strobe lights and multicast supported IP telephones.
Zone Paging: Multicast zone paging for up to 50 zones can be configured from a single 8128 strobe light. Zones can be selected one of two ways. One option is to map multicast page zones to individual SIP extensions on the endpoint. Fifty (50) page extensions are available for this purpose. Alternatively, in order to minimize SIP registrations, multicast page zones can be configured in the SIP strobe light as a DTMF key press selection using the dial pad of telephone making the page call.
IP Visual Ring Alerting: The Ring extension on the 8128 is used for telephone visual ringing / ring alerting. The 8128 will flash when this extension is called. Typically the strobe light will be configured in a ring group to include a telephone(s). The strobe light will flash for the duration of the ring event until the call is answered. Eleven(11) flash patterns, each with three intensity levels, are available to choose from.
Up to 10 Ring extensions are available to register on a single strobe light, thereby allowing one device to act as a visual alerter for several telephones by configuring different ring groups for each registered Ring extension.
Where audible and visual telephone ring alerting is required, the 8128 can be combined with an Algo IP speaker using multicast or a relay.
Emergency Notification Alerting: For notification alerting of safety, security and emergency events there are two activation options available: Dial an Emergency Alert extension or connect a button to the strobe’s relay input.
Up to 10 Emergency Alert extensions are available to register on the SIP strobe light, allowing for different types of alerts to be activated (e.g., lockdown, evacuation, shelter, all clear, etc.). A choice of four colors (i.e., amber, blue, clear and red), in addition to 11 flash patterns / intensities can be configured to align with the alerting event and enhance situational awareness (e.g., Red – Lockdown, Blue – Medical Emergency, Amber – Shelter, etc.). Note: For a multi-color strobe light option use the Algo 8138 SIP Strobe Light.
An Emergency Alert can be configured to activate the strobe for a timed duration. Alternatively, the alert be activated until cancelled. This feature uses a Call To Cancel extension to stop activating the strobe light when desired.
Algo Communication 8128 IP Visual Alerter Features:
- IP strobe light for public address (PA) and alert notification.
- Secure SIP using TLS and SRTP.
- Multicast to scale from one to many synchronized strobes.
- Long-life LEDs providing 360 x 180 degree visibility from a wall or ceiling mount location.
- Zero light degradation for at least 34 years of continuous use.
- 875 lumen rating.
- 11 configurable flash patterns, each with three brightness levels to choose from to best suit application requirements.
- Amber, blue and red lens color accessories to distinguish unique events and enhance situational awareness.
- Configuration via user friendly web interface or auto-provisioning.
- PoE (IEEE 802.3af).
- Ideal for noisy workplace environments or where hearing protect is worn (e.g., manufacturing plant / factory, utility, warehouse, machine shop, garage, restaurant), noise sensitive areas (e.g., hospital maternity ward, court room, studio, library) and expansive facilities such as a school /college / university campus, transportation terminal (i.e., airport, bus / rail station), hospital, government office, enterprise campus, etc.
- Outdoor-rate (IP66 rated if properly installed).
Why not buy this Algo Communication 8128 IP Visual Alerter from HDTV Supply today?
Algo 8128 IP Visual Alerter User Manual
