DVI Matrix Switchers in 9x9 Chassis - See 47

DVI Matrix Switchers with Scaling These 47-different Preconfigured DVI Matrix Switchers feature:

9x9 card cage chassis w/separate audio
Up to 9-DVI input & output cards w/HDCP 1.4
Control via iOS/Android App, WEB GUI, RS232 & front panel
100ms fast switching speed & w/o latency
Hardware Scaling via DIP Switches on both in & out cards
Supplied adapters support HDMI, VGA, component & composite video
40-Preset screens to Save & Recall

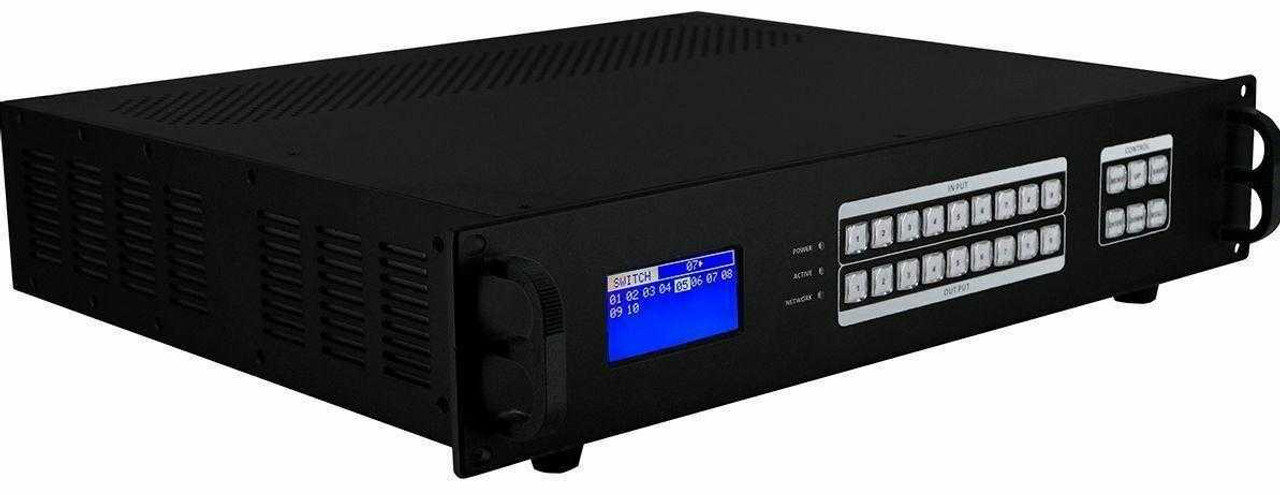

These WolfPack™ Preconfigured DVI Matrix Switchers with DVI Cards allow any input to be routed to any output; or the same input to be routed to all outputs, or any combination. They are created from a 9x9 card cage chassis with extra slots allowing you to expand in the field. They are configured with Seamless switching speeds of 100ms (0.1 sec), DIP Switch resolution settings & Separate Embedded Audio In's and De-embedded Audio Out's. The matrix is also supplied with universal adapters for each DVI input and DVI output that converts the DVI connector to HDMI, VGA, composite video and component video.

These 9x9 DVI Matrix Switch Card Cage Systems support various 1-Port DVI input & output cards up to a total of 9-DVI inputs and 9-DVI outputs within the Modular DVI Matrix System Card Cage. These HDCP 1.4 compliant WolfPack DVI Matrix Switchers are single-link DVI 1.1 compliant & are controlled via front panel buttons, a WEB GUI control, TCPIP, an RS-232 serial port & the supplied iOS and Android Apps. All of the below, except one, have spare slots for you to expand in the future when you want to add more sources or TVs.
