HDTV Supplys WolfPack 8x10 AV Over IP Matrix Switch is a 8x10 IP Streaming Matrix System made up of 4-HDMI IP Streaming Encoders and 4-HDMI IP Streaming Decoders designed for long distance HDMI switching and transmission. It includes Bi-directional IR & RS232 control signals over the IP network. It works with one Windows PC (Wake on LAN) and one 1GbE Non-POE or POE Switch to control a variety of functions. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. You don't have to have any IP or LAN knowledge, just select a few settings and you will be running in a few minutes.

The 8x10 AV Over IP Matrix Switch features 1080p HDMI video switching, audio de-embedding, audio switching, bi-directional IR, RS232 transmission, video recording, PoE and other functions. The control software named "IP Streaming Management" merges all the functions for your control into an easy to use IP streaming system.

HDTV Supplys WolfPack™ 8x10 AV Over IP Matrix Switch allows for the distribution & switching of high definition video & audio signals using off-the-shelf Gigabit IGMP switches. Using only the Encoder and Decoder it also be used as an extender in a point-to-point connection with distances is up to ~400 feet. A typical AV Over IP Matrix Switch includes multiple Encoder units and multiple Decoder units like this 8x10 AV Over IP Matrix Switch. Multiple Encoders can simultaneously connect to many Decoders to form a virtual matrix of up to multiple HDMI inputs to 100s of HDMI receivers (widescreens).

This 8x10 AV Over IP Matrix Has Contents Of:

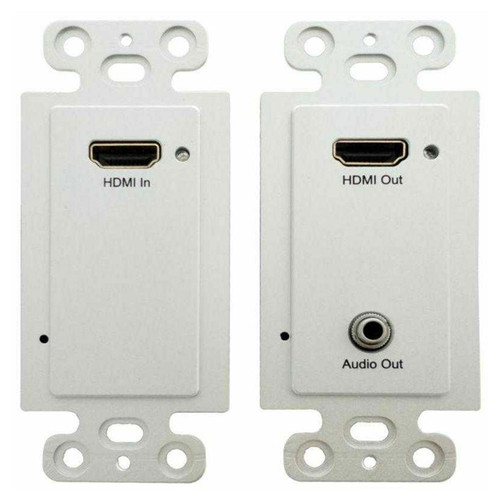

• 8 - HDMI Encoders w/HDMI loop out, RS232 & IRs In & Out
• 10 - HDMI Decoders with Separate Audio Out, RS232 & IRs In & Out
• 8 - IR Transmitters
• 10 - IR Receivers
• 1 - 24-Port PoE 1G Ethernet Switch

This 8x10 AV Over IP Matrix Features:

• 1080p video over an 1G Switch
• Supports resolutions up to 1920x1080p
• Optionally supports a PoE powered by the IP network
• Supports video recording
• This encoder features an HDMI loop out
• Supports audio breakout
• Plug and play.
• Transmission distance is up to 120 meters or 400 feet via CAT6.
• Supports scalable and flexible input and output matrix configurations allowing 100 inputs to an infinite output.
• Supports select and switch source device input from the receiver via remote control
• Supports IR pass back function to control the source device from the receiver location.
• Supports IR pass back function to control the TVs from the Source location
• Supports computer control software to select and switch source device input

Why not buy a WolfPack 8x10 AV Over IP Matrix Switch today?
