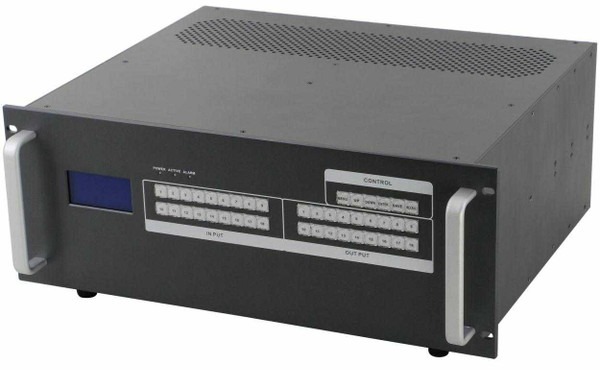

HDTV Supplys WolfPack 4K 6x12 HDMI Matrix Switch is a pre-configured integrated HDMI video and HDMI audio modular HDMI matrix router. The 6x12 chassis's back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs. The core of the 6x12 HDMI Matrix HDBaseT Router consists of an 18x18 Modular Matrix chassis and its highly configurable backplane that supports 18 input cards and 18 output cards. The 6x12 HDMI Matrix Switchis also 4K at 30 Hz compliant. You can control the WolfPack 6x12 HDMI Matrix Switch via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android app.
WolfPack 4K 6x12 HDMI Matrix Switch Configuration:
- 1 - 18-card in and 18 card out 4K card cage
- 6 - 1-port 4K HDMI input cards = 6-HDMI inputs
- 12 - 1-port 4K HDMI output cards = 12-HDMI outputs
- 12 - Input slots for future expansion to 18-total inputs
- 6 - Output slots for future expansion to 18-total outputs
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
The WolfPack 4K 6x12 HDMI Matrix Switcher manages HDMI input signals for the inputs and outputs. This 4K 6x12 HDMI Matrix Router supports long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 6x12 HDMI Matrix Router also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
4K 6x12 HDMI Matrix Switch Feature:
- Chassis size: 18 input and 18 output card capacity
- Input Cards Supported:
- 6 - 4K female HDMI single port cards = 6 - HDMI inputs
- Output Cards:
- 12 - 4K female HDMI single port cards = 12 - HDMI outputs
- Input HDMI cable distance: Up to ~12 feet with an AWG22 HDMI 1.4 high speed cable
- Input HDMI cable distance: Up to ~25 feet with an AWG22 HDMI 1.4 high speed cable
- Flexible card type design supporting 18 input cards and 18 output cards
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports seamless switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
- Rack-mountable
OPTIONAL SwiftSwitch SEAMLESS SWITCHING: Our WolfPack 6x12 Modular HDMI Matrix Router can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input and the display outputs and scaling inputs for the best output resolution while setting the output clock timing and using a frame buffer to retain the input signal information for the fastest output.
The heart of the HDMI inputs is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
EDID Explained: The 4K 6x12 HDMI Matrix Switches EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy buy this 4K 6x12 HDMI Matrix Switch today?
6x12 HDMI Matrix Switcher Specs:
- Input / Output Bandwidth: 25-225MHz
- Input / Output Resolution: HDTV Signal up to 1080p@60Hz, WUXGA (1920x1600), and 4Kx2K
- Input : HDMI type A female x 6 Channels
- Output : HDMI type A female x 6 Channels
- Input cable distance: ~25 feet AWG22 HDMI 1.4 high speed cable
- Output cable distance: ~35 feet AWG22 HDMI 1.4 high speed cable
- HDCP compliant all ports
- Audio: DTS HD and Dolby TrueHD HDMI up to 192KHz/24-bit, DVD-Audio (2/6/8 ch, 32-192 KHz), up to 6 ch PCM
- Operating Temperature & Humidity : 0-40*C, Less than 80% Humidity
- Rack Ears Included
- International AC adapter
Why not buy this 6x12 HDMI Matrix Switcher today?
DO NOT USE EZ45 CAT6 CONNECTORS WITH HDBaseT PRODUCTS
Why not buy this 6x12 HDMI Matrix Switch today?
HDTV Supply created our unique line of WolfPack line of products which are born from a hungry, circling pack of high performance video and audio HDMI that surround our competition to devour them. The WolfPack family is sleek, unique & swift & even the smallest configuration wolf can adapt himself to many hostile environments. The Wolfpack family can roam long distances even some up to 300 feet over HDBaseT trails and howl 4K whereas those who try to trap the WolfPack fails & runs away to the older devices.
You can only get this one-of-a-kind WolfPack product from HDTV Supply.
Reasons To Buy a 6x12 HDTV Supply WolfPack Product:
- All WolfPack products have FREE HDTV Supply U.S. based Live Telephone Lifetime Tech support
- HDTV Supply has a dedicated TEXT support line at 805-409-0208 to support you
- HDTV Supply has a dedicated Product Manager for WolfPack products to assist with any special needs
- If there is a WolfPack firmware update for your product you will find it at our site
- Many times we will list lower refurbished WolfPack products at our site
- All WolfPack products are usually in stock and ship the same week day if the order comes in by 12PM PST
- You can buy WolfPack products from us with most any credit card, your Amazon account and PayPal
- HDTV Supply has many videos to show the features of WolfPack products
- You will find all WolfPack User Manuals and other manuals at our site
- From time-to-time HDTV Supply runs Factory Authorized sales on WolfPack products
- All WolfPack products bought from HDTV Supply are brand new and in unopened boxes.
- All WolfPack products bought from HDTV Supply are shipped in double carton boxing.
- All WolfPack products bought from HDTV Supply have full value shipping insurance
- All WolfPack products bought from HDTV Supply have a 30-day No-Hassle returns
- All WolfPack products bought from HDTV Supply can be shipped blind to your customer
- HDTV Supply has shipped >1,000 WolfPack products throughout the world
- HDTV Supply ships all WolfPack products from here in the U.S.
- HDTV Supply stocks extra WolfPack accessories in case you misplace your remote or other unit
- HDTV pride ourselves on confidentiality and any personal information that you may share with us is kept absolutely private.
Why not buy this 6x12 HDMI Matrix Switch today?
For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.
Why not buy this 6x12 HDMI Matrix Switch today?
This 6x12 HDMI Matrix Switcher Works With:
- Any high definition Dish Network and DirecTV receiver with HDMI outputs
- High definition TiVo's with HDMI outputs
- Any high definition cable receiver with HDMI outputs
- Canadian Rogers, Shaw, Bell ExpressVu and Star Choice receivers with HDMI out, or DVI out with a converter
- Any "Over The Air" (OTA) high definition receiver with HDMI outputs
- Sony PS3, HD DVD and Blu-ray DVD players
- Any Xbox360 with HDMI outputs
- Any upconverting DVD player with HDMI outputs
- Any DVHS VCR with HDMI outputs
- An APPLE TV with HDMI outputs
- A VuDu with HDMI outputs
- Any PC video card with HDMI outputs
- Any high definition camcorder with an optional type C to standard HDMI cable
- Many A/V surround sound receivers with HDMI switching that include the proper chip set. Call your AV receiver supplier to discuss your application or us.
- Any HDCP compliant HDTV, monitor and projector. If the source is HDCP compliant and your TV is not, you will not get a picture. Please check your TV manual or the manufacturers web site.
- and other similar devices.
Why not buy this 6x12 HDMI Matrix Switcher today?
A: No, the cables are used when the application has one source and one widescreen. They can't be used with this matrix ad need to be set aside and not used.
Q: Do the optional HDMI extenders to 300 feet support Remote IR?
A: They send perfect audio and video up to 300 feet but the remote IR doesn't support this device as it only works with with 1-source & 1-TV. See our RF remote controls if you want to control all your devices from afar.
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
If it doesn't meet your needs just call us right now at 833-WOLFPACK or 833-965-3722 or email us at support@hdtvsupply.com
