This WolfPack 50-Watt Class-D Stereo Power Amplifier features a stereo speaker output, with support for 4‑ohm and 8‑ohm speakers. The WolfPack 50-Watt Class-D Stereo Power Amplifier can deliver 50 watts per channel into 8‑ohm loads, or 65 watts per channel into 4‑ohm loads. Additionally, the output can be bridged to provide 120 watts to a single 8‑ohm speaker.
The WolfPack 50-Watt Class-D Stereo Power Amplifier includes a buffered loop line output of the original signal for driving another power amplifier for distributed audio systems. The amp can be configured to be always on, signal detection, or triggered power on status. It also includes a 12‑volt trigger output for controlling other devices.
WolfPack 50-Watt Class-D Stereo Power Amplifier Features:
- Class‑D amplifier, providing 50 watts/channel (RMS) into 8 ohm loads or 65 watts/channel into 4‑ohm loads
- Bridgeable output provides 120 watts into a single 8‑ohm load

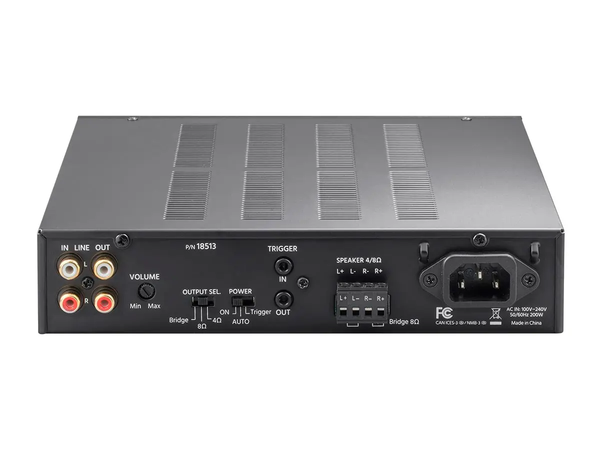

- 4‑pole detachable speaker screw connector (Euroblock connector) with support for up to 12 AWG speaker wire
- Buffered loop output of original signal for connecting additional amplifiers
- Rear panel volume gain adjustment
- Built-in thermal and short circuit protection circuits
- Includes rack mount ears for mounting a single amp or two amps side‑by‑side
- 12‑volt trigger input for power‑on/off
- 12‑volt trigger output for controlling other devices
Why not buy this WolfPack 50-Watt Class-D Stereo Power Amplifier today?
WolfPack 50-Watt Class-D Stereo Power Amplifier Specifications:
| Audio Inputs | Stereo analog RCA |
| Audio Outputs | Buffered stereo analog RCA loop output |
| Output Power | 50 watts/channel into 8 ohms with < 0.1% THD+N or 65 watts/channel into 4 ohms with < 0.1% THD+N or 120 watts into a single 8‑ohm load with < 0.1% THD+N |
| Maximum Speaker Wire Size | 12 AWG |
| Minimum Output Impedance | 4 ohms in stereo mode 8 ohms in mono bridged mode |
| Trigger Input | 12 VDC, 10 kΩ |
| Trigger Output | 12 VDC, 100mA |
| Input Power | 100 ~ 240 VAC, 50/60 Hz, 2.5A |
| Standby Power Consumption | ≥ 0.5 watts |
| Dimensions | 8.5" x 10.5" x 1.8" (216 x 267 x 45 mm) |
