HDTV Supplys WolfPackGold 1080p 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 is an integrated HDMI video and HDMI audio modular HDMI matrix switcher. The small 16x16 chassis (6U) back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies. The core of the Modular HDMI Matrix Switcher Chassis consist of a a 16x16 In & Out Modular Matrix chassis and its highly configurable backplane that supports up to 4 - 4-Port slide-in input cards and up to 4 - 4-Port slide-in output cards. You can control the matrix switch via its IOS or Android app, 2-button fast switch from the front buttons, a WEB GUI control, IR remote control or the RS-232 serial port.
You create multiple video walls like 2x2s, 3x3s, and more, showing one large picture or multiple individual pictures. The number of video walls is only limited by the number of outputs that you have. It also has an optional HDMI Multi-viewer Quad-View Card that can show 4-videos on only one large picture display, like a projector showing on a large projector screen.
Reasons that sets our WolfPackGold 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 apart from others:
- Internal Video Wall Processor
- Fast 100ms Latency & 100ms switching time
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons & IR Remote Control
- 40-Preset scenes that can be Saved and Recalled
- Full 1080p HD resolution
- HDMI 1.4 & HDCP 1.4 Compliant
- 4-port cards & chassis
- 2-Year WolfPackCare Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- SDI in & out cards available
- HDBaseT HDMI Extenders over CAT6 in & out cards available
- Rack-mountable
- Dual power supply's (One backup)
- Optional Crestron, Control4 & Elan Drivers

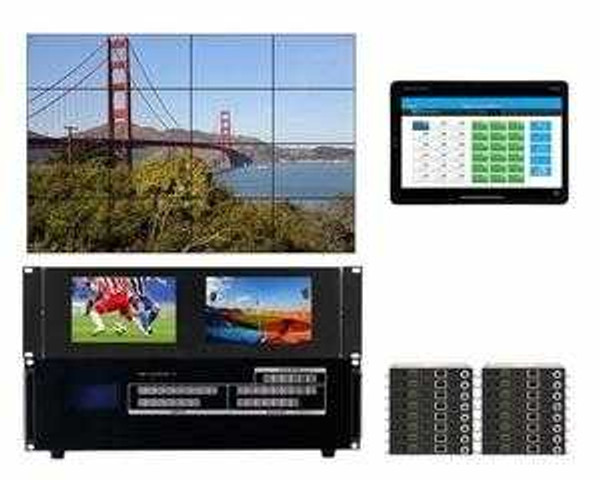

Internal Video Wall Processing: Not only is this product an HDMI matrix switch, but it is also designed to support multiple video wall configurations. Your tablet is used to create video walls and the number of video walls is only limited by the number of outputs that you have. It supports Drag-N-Drop Video Wall Processing & setups. To set up video walls all you need to use is a PC so you can then change the sources using a tablet. See the examples below:
Example 1: Create a 2x2 Video Wall using 4-TVs with either one large picture or 4-individual pictures at one, or multiple locations.
Example 2: Create a 3x3 Video Wall using 9-TVs with either one large picture or 9-individual pictures at one, or multiple places.
Example 3: Create a 4x4 Video Wall using 16-TVs with either one large picture or 16-individual pictures at one, or multiple places.
Example 4: Create a 5x5 Video Wall using 25-TVs with either one large picture or 25-individual pictures at one, or multiple places.
Separate Embedded Audio In and De-embedded Audio Out: The matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the input cards 3.5mm audio connector and then de-embedding the audio on the output cards 3.5mm audio.
Seamless Switching: Our WolfPackGold Modular HDMI Matrix Router can be configured with instantaneous video switching which delivers full 1080p video powered by our WolfPack engine implemented at each output port. It switches instantly taking only 100ms or 0.1 seconds. The Seamless Switching engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input and the display outputs and scaling inputs for the best output resolution while setting the output clock timing and using a frame buffer to retain the input signal information for the fastest output.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the up/down manual scaling of resolutions. Each HDMI card has an 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
WolfPackGold 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 Configuration:
- 1 - 16-card in and 16 card out card cage
- 1 - 4-port HDMI input cards = 4 - HDMI inputs
- 2 - 4-port HDMI output cards & 8 - Receivers over CAT6
By having 4-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent in for repair.
This 4x8 HDMI Matrix Switch with a Video Wall Function over CAT6 Features:
- Supports up to 4 - 4-port input cards and 4 - 4-port output cards
- Input Cards Supported: 1080p HDMI Inputs
- Output Supported: 1080p HDBaseT Cards & Receivers to support 220 feet with CAT6/7 with (POC) Power Over Cable
- Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
- HDCP 1.4 compliant
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control via an automation control system
- Supports resolution exchanges with several resolutions can be chosen and used
- Supports both HDBaseT signal inputs and outputs and the 1080p distances can up to 220 and optionally 330 feet feet with only one Ethernet cable with (POC) Power Over Ethernet
- Hot-pluggable
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control
- Rack-mountable
The heart of the Modular HDMI Matrix Routers are the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
WolfPack 1616-Chassis User Manual
WolfPack 1616-Chassis Brochure
TCP&UDP Control Commands For the Wolfpack
RS232 Commands in HEX and ASCII format
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
Reasons To Buy an HDTV Supply WolfPack Product
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
Control
When one is designing an HDMI Matrix Switch the most important initial specification is the number of inputs and outputs you will need in your facility. The next, and often forgotten, is how the user wants to control those inputs and outputs. HDTV Supply has your back when you're buying one of our WolfPack Family of Modular Matrix Switchers as we have dozens of way to control the inputs and outputs and are shown at Controlling WolfPack Modular Matrix Systems, as well as below:- Remote Keypad for WolfPack Matrix Systems
- Free Remote Control
- Free iPad App (iOS)
- Free iPhone App (iOS)
- Free iPod App (iOS)
- Free Android Tablet App
- Free Android Phone App
- Free Samsung Galaxy Tablet App
- Free Samsung Galaxy Phone App
- Free Amazon Fire Tablet App
- Free Web GUI from any browser is standard
- Front panel push-buttons are standard
- RS232 ports are standard on select models
- TCPIP ports are standard on select models
- Free One-Way Control4 Drivers
- Optional $99 2-Way Control4 Drivers
- Optional $99 Elan Drivers
- Optional $129 Crestron Modules
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
Control Drivers
DirecTV Controller
These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.
For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:
- AMX™
- Control4™
- Creston™
- RTI™
- DTVGameControl™
- Elan g!™
- Media Switcher™
- OnControls™
- Savant™
- SimpleControl™
- SwitchItUp™
- SAVI Control™
- URC Control™
...and we have created a simple and very easy to use RS232 script to write your own drivers.
EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be 8x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.
How to use the info:
END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:
- Call us for a quote
- Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.
CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.
Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
Q: How many Preset scenes can I Save and Recall?
A: 40.
Q: What are the HDCP options?
A: You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
- Mix-n-Match combinations:
- Non-HDCP source to a HDCP compliant TV
- HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A: Our testing procedure is:
- Assembling: Production line self-testing (Basic Functions)
- Initial Testing: Includes every card, control software and front panel front buttons
- 24 Hours Aging: Gao Sheng Standard Aging Room
- Final testing: All Functions
- QC final Inspection: Sticker, serial number, etc
- Packing: Pack and ship
Q: How do the 2-power supplies work with the matrix?
A: For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up
Q: What are the dimensions of the chassis?
A: 36x36: Small 6U Size w/Rack Mounts
Q: Do you have any tips in the unlikely event the unit fails?
A: Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.
Why not buy this 4x8 HDMI Matrix Switch with a Video Wall Function Over CAT6 today?
HDTV Supply's WolfPack Family of Matrix Switchers can be created however you wish. Just SCROLL DOWN and fill out the below and press SUBMIT and we will send you a quotation based upon your needs within an hour.
